Unpacking
Due to modern mass production techniques, it is unlikely
that your GMC Power Tool is faulty or that a part is missing.
If you find anything wrong, do not operate the tool until the
parts have been replaced or the fault has been rectified.
Failure to do so could result in serious personal injury.
Required tools
The following tools are required to assemble the drill press:
• 3mm, 4mm, 5mm Hex Keys (Supplied)
• Wrench (Not Supplied)
• Phillips Head Screwdriver (Not Supplied)
Assembly time
The DP250LS drill press will take approximately
10-15 minutes to assemble.
Components

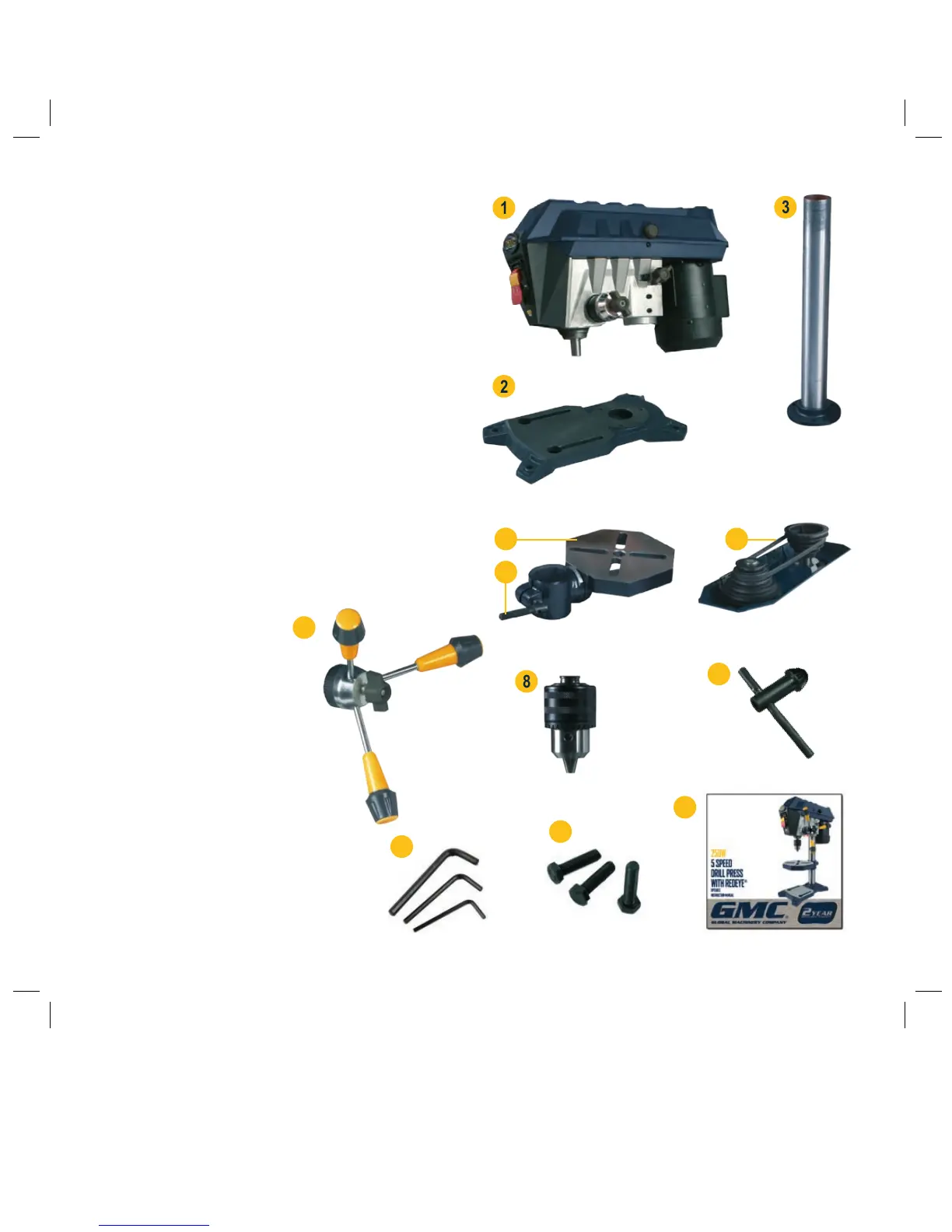

The DP250LS drill press is supplied with
the following components:
1. Motor Head
2. Base
3. Column
4. Table
5. Table Lock (fitted)
6. Belt (fitted)
7. Handle Rods (x3)
8. Keyed Chuck
9. Chuck Key
10. Hex Keys (x3)
11. Bolts for attaching column to base (x3)
12. Instruction manual
8
7
10
1
3
2
6
9
11
12
4
5
