VII. How to use back gauge

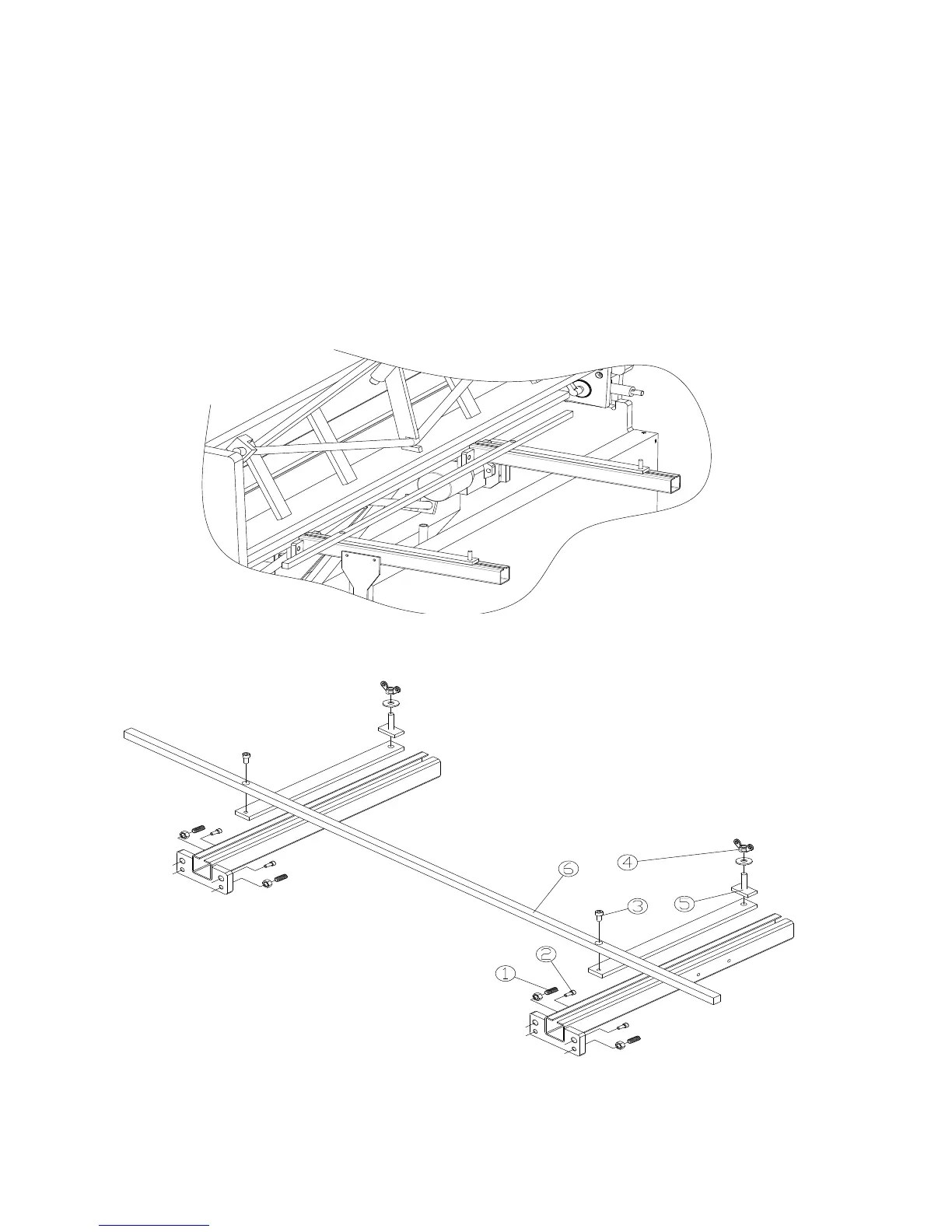

This machine comes with a manual back gauge. Before first time use, please install the back gauge
first. Two support arms are mounted on the rear side of the table by screw 1 and 2, the stop bar # 6 on the
back gauge is mounted by screw 3.
Adjust the distance of back gauge: Loosen the butterfly nut # 4 and then T-nuts are released. Move the stop
bar # 6 back and forth to adjust the distance of the back gauge you need. Then tighten screw # 4.
