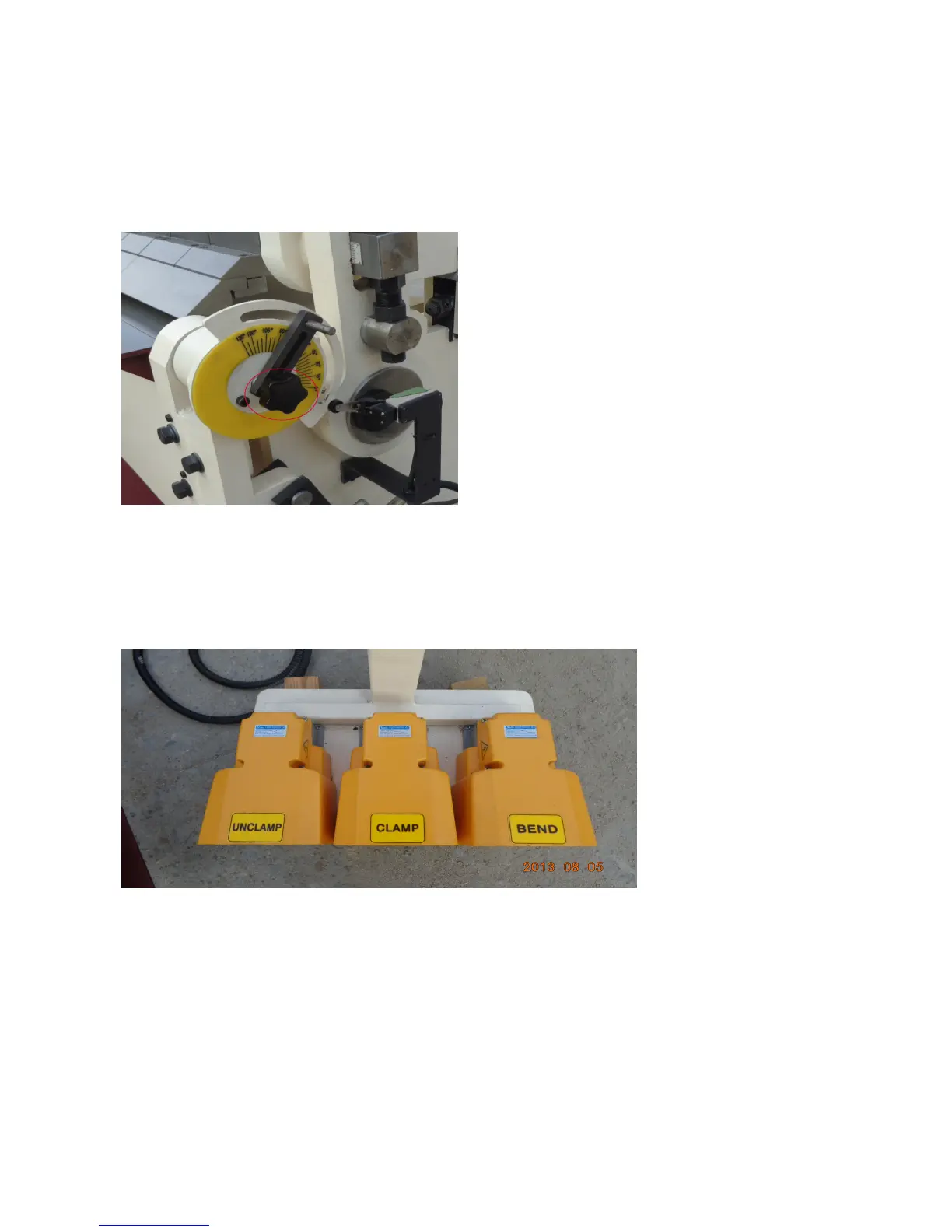

3）Angle set up: turn the black locking knob(circled in red ) to counter clockwise to release the set-up bar and
set up the bending degree you need then tighten the black locking knob, the bending angle degree can be
set-up from 0-135°。
This machine has two operation modes: one is for Auto cycle, and 2
nd
is for inch ( jog).
4)-1 on inch ( jog ) mode:
Press unclamp foot pedal, the top beam raises up, please insert the material in ,then press clamp pedal to
close down the top beam with fingers. ( caution: the top beam must be closed down tightly, otherwise,
The bending leaf will be not lifted up to make bend. ) press BEND foot pedal to jog the bending leaf up.
Or push the following circled black controller up to BEND position, the bending leaf will go up joggly and
push the black controller down to release position, the bending leaf will go down joggly.
