TABLE CROWNING COMPENSATION
If the angles of work-piece two sides are both on 90 degree,but middle side only 89 degree,Micro adjusting
screws at bending left and bottom beam for compensate the middle has the same angle.
1) Open the top beam,and then turn off the machine power

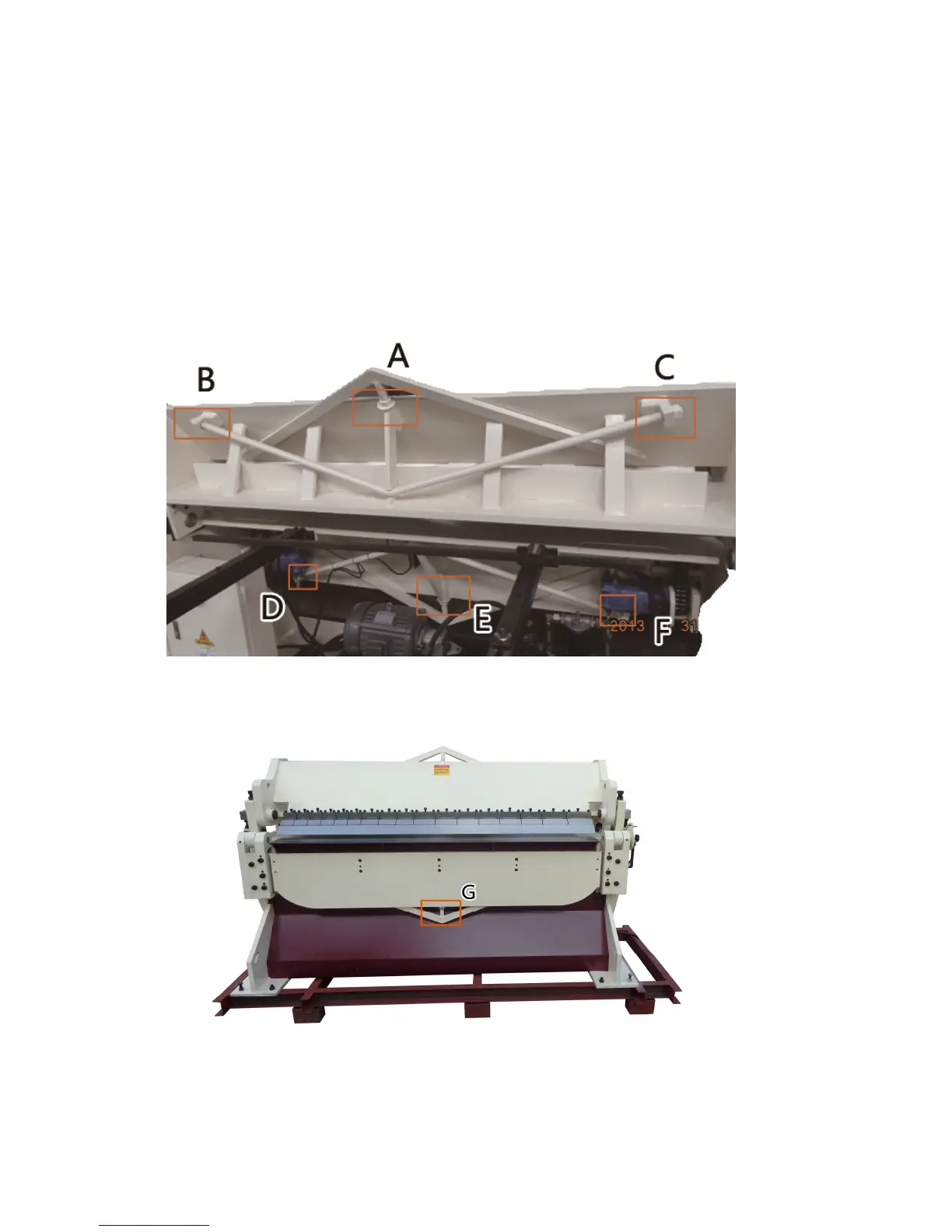

2) Tight screws A-G at upper beam and folding leaf,and make screw tight following different work-piece
crowing situation.
