GMC PCH37 - Specifications

4
A log lying on the ground
Cutting the limbs of Fallen Tree
1
2
Pruning of Standard Tree
1
2
Felling a tree
Felling
direction
Notch
cut
Felling
cut
1
2
A log hanging off the ground
1
2
1
2
A log lying on the ground
Cutting the limbs of Fallen Tree
1
2
Pruning of Standard Tree
1
2
Felling a tree
Felling
direction
Notch
cut
Felling
cut
1
2
A log hanging off the ground
1
2
1
2
1
2
1
2
1
2
1
2

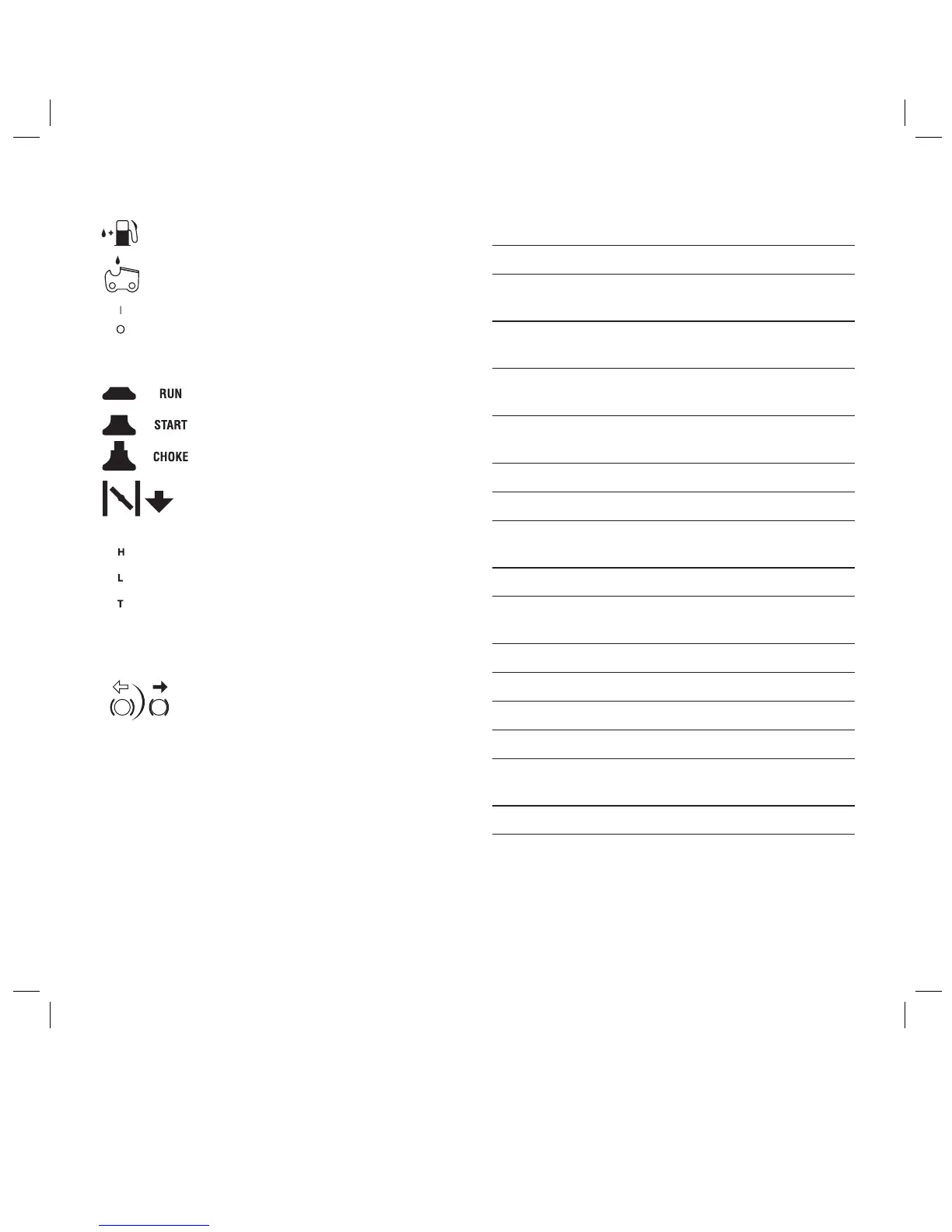

Symbols on the machine
Fuel inlet.
(Position: under the fuel tank cap.)
Chain oil inlet.
(Position: next to the oil tank cap.)
On/Off.
(Position: on the on/off switch.)
Setting the on/off switch to Off, stops the engine
immediately.
Run position.
Start position (when engine is warm.)
Start position (when engine is cold.)
Choke control
(Position: next to knob on the top cover)
High run adjustment screw.
Low run adjustment screw.
Idle adjustment screw.
(Position: left side of machine close to
pull start handle.)
Chain brake released (hollow arrow) and
activated (solid arrow.) (Position: right side
of machine, on chain drive cover.)
Specifications
Engine displacement: 37cc
Maximum engine power: 1200W
Engine type: Air cooled, single
cylinder, two-stroke cycle
Recommended maximum
engine speed at idling: 2600min
-1
Maximum engine speed
with cutting attachment: 9000min
-1
Fuel type: Unleaded petrol/
2-stroke oil (50/1)
Fuel tank capacity: 310ml
Oil tank capacity: 210ml
Spark plug: LD L8RTF NGK BM6A
Champion CJ8
Oil feeding system: Automatic pump
Sprocket wheel: 6–teeth x 9.53mm
(3/8”) pitch
Guide bar type: Sprocket nose
Guide bar cut length: 405mm (16”)
Chain type: Oregon 91VG
Chain pitch: 9.53mm (3/8”)
Weight (including
guide bar and chain): 5.2kg
Sound pressure level: 93.4 dB(A)
