Heater and Air Conditioning Control
System (If Equipped)

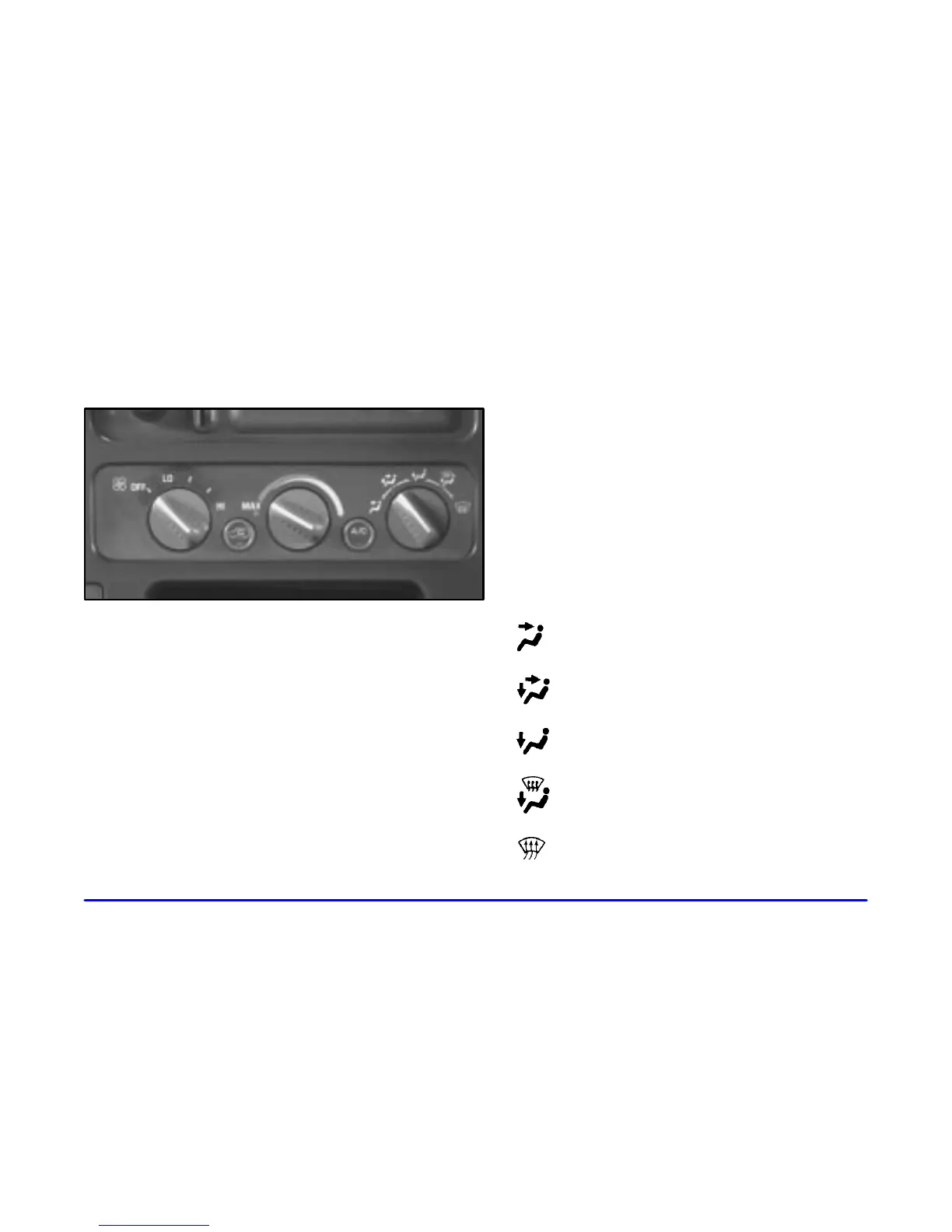

Fan Knob
The knob located on the left side of the heating system
control panel controls the fan speed. The knob has four
speed positions. To increase airflow, turn the knob
toward HI. To decrease airflow, turn it toward LO. To
turn the fan off, turn the knob to OFF. If you have the air
conditioner on, turning the fan knob to OFF also turns
off the A/C compressor.
In OFF, while driving, airflow will vent to the floor
outlets. The mode knob will not redirect airflow to other
selected outlet positions. This is normal operation for
the OFF position.
Temperature Knob
The middle knob on the control panel lets you select the
relative temperature of the air flowing into the passenger
area of your vehicle. This knob will allow you to adjust
the relative air temperature independently of the
function knob setting. Turn the knob clockwise, toward
the red area, for warmer air. Turn the knob
counterclockwise, toward the blue area, for cooler air.
Mode Knob
The right knob on the control panel allows you to
choose the direction of air delivery. The control knob
can be placed in any position between two mode settings
to blend the flow of air.
VENT: This setting directs air through the
instrument panel outlets.
VENT/HEAT: Use this setting to divide airflow
between the floor outlets and instrument panel outlets.
HEATER: This setting directs air through the
heater floor outlets.
DEFOG: This setting directs air to the heater
outlets and toward the windshield.
DEFROST: This setting directs air toward
the windshield.
