“VORTEC” 5700 V8 Engine

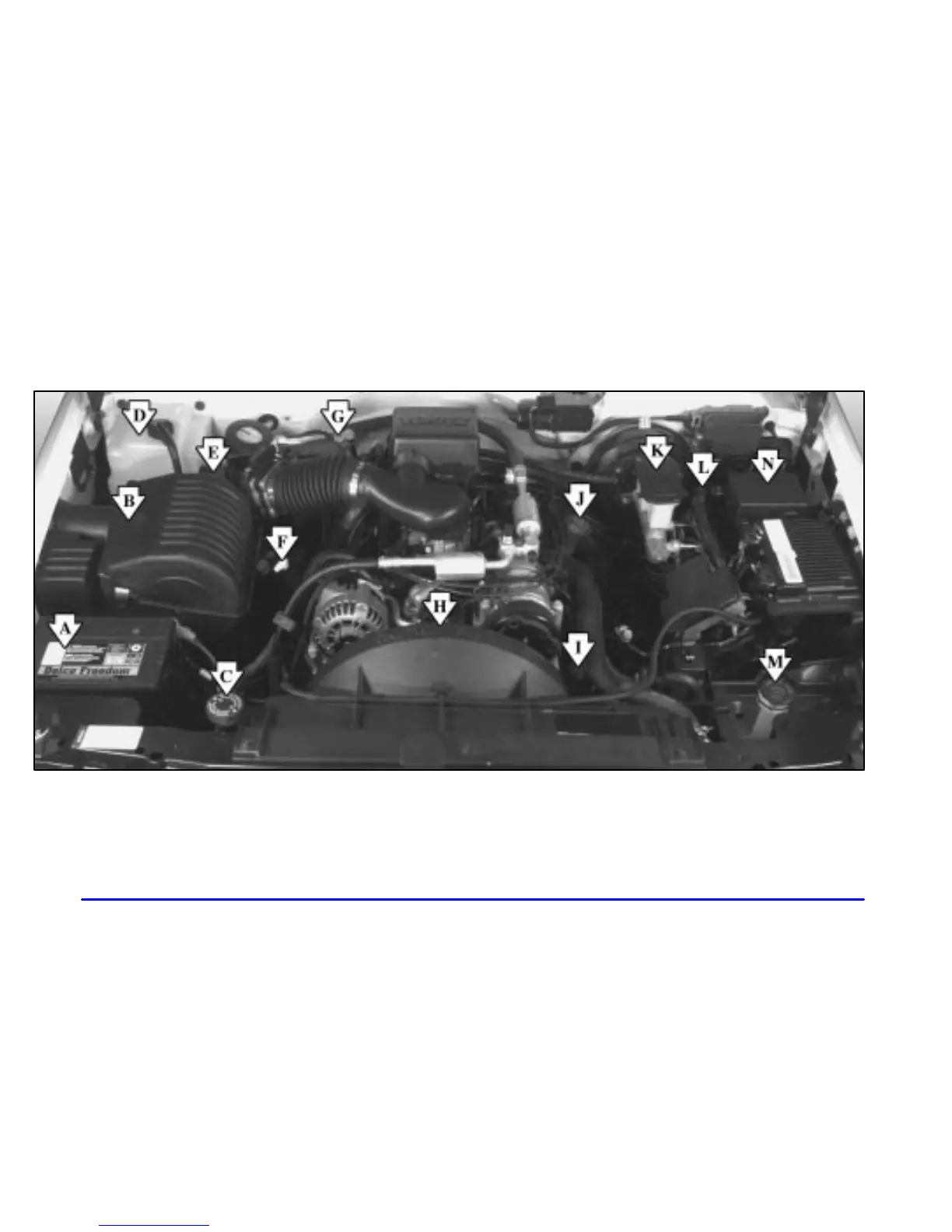

“VORTEC” 5700 engine shown, locations for other engines similar. When you lift up the hood you’ll see:
A. Battery
B. Engine Air Cleaner/Filter
C. Radiator Cap
D. Coolant Recovery Tank
E. Air Filter Restriction Indicator
F. Engine Oil Dipstick
G. Automatic Transmission
Dipstick (If Equipped)
H. Engine Oil Fill
I. Fan
J. Power Steering Fluid Reservoir
K. Brake Fluid Reservoir
L. Clutch Fluid Reservoir
M. Windshield Washer Fluid Reservoir
N. Fuse/Relay Center
