6-73

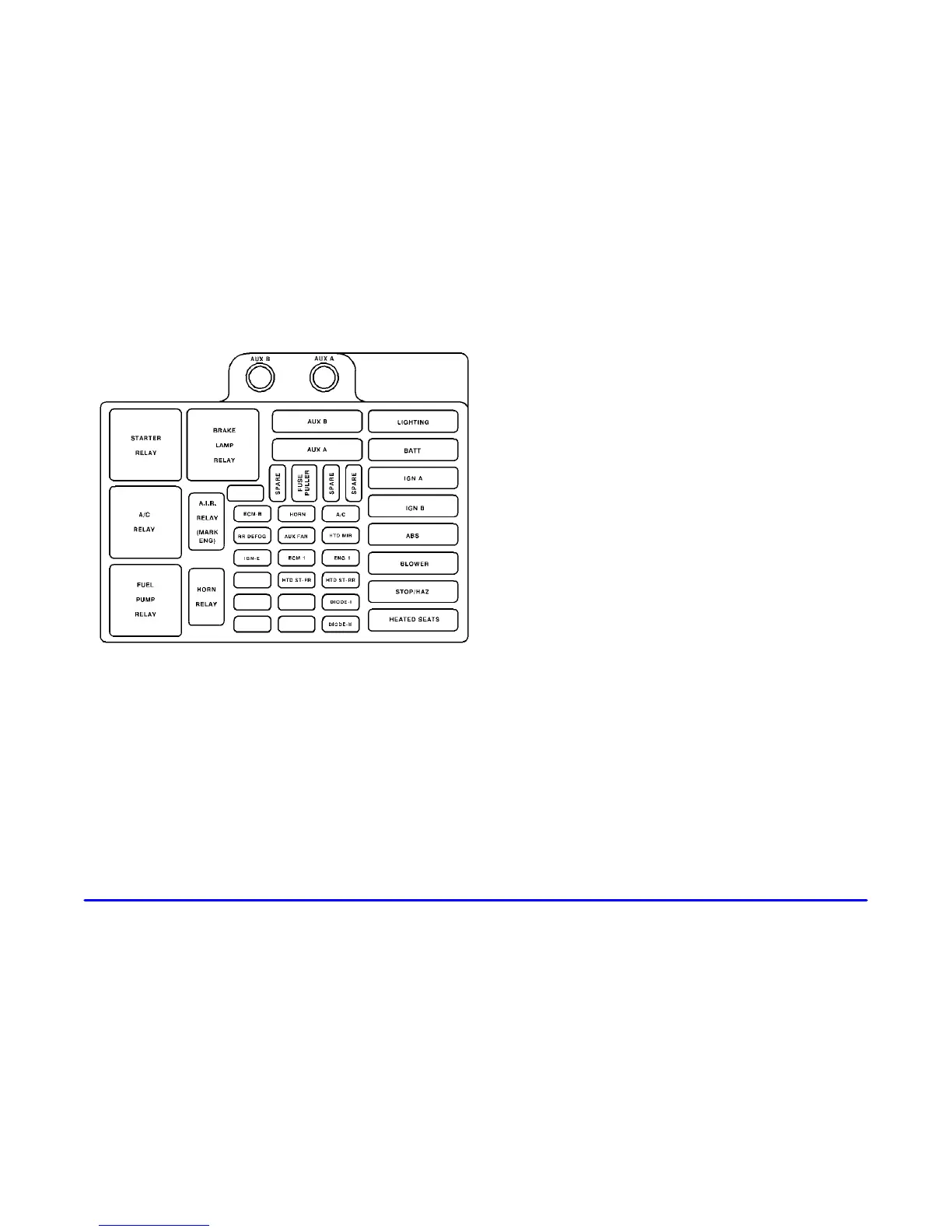

Name Usage
ECM
-B Fuel Pump, PCM/VCM
RR DEFOG Rear Window Defogger
IGN
-E Auxiliary Fan Relay Coil,
A/C Compressor Relay,
Hot Fuel Module, Dual Tanks
HORN Horn, Underhood Lamps
AUX FAN Auxiliary Fan
Name Usage
ECM
-1 Injectors, PCM/VCM, Fuel Solenoid
(Diesel Engine, Fuel Control Module
(Diesel Engine)
HTD ST
-FR Not Used
A/C Air Conditioning
HTD MIR Not Used
ENG
-1 Ignition Switch, EGR, Canister
Purge, EVRV Idle Coast Solenoid,
MAF, Heated O
2
, Fuel Heater
(Diesel Engine), Water Sensor
(Diesel Engine), Boost Solenoid
(Diesel Engine), EPR (Diesel Engine)
HTD ST
-RR Not Used
LIGHTING Headlamp and Panel Dimmer Switch,
Fog and Courtesy Fuses
BATT Battery, Fuse Block Busbar
IGN A Ignition Switch
IGN B Ignition Switch
ABS Anti
-Lock Brake Module
BLOWER High Blower Relay
STOP/HAZ Stoplamps
HEATED
SEATS
Not Used
To Next Page
