Heavy-Duty Trailer Wiring Package (If Equipped)
Your pickup may be equipped with the eight-wire trailer
towing harness. This harness with a seven
-pin universal
heavy

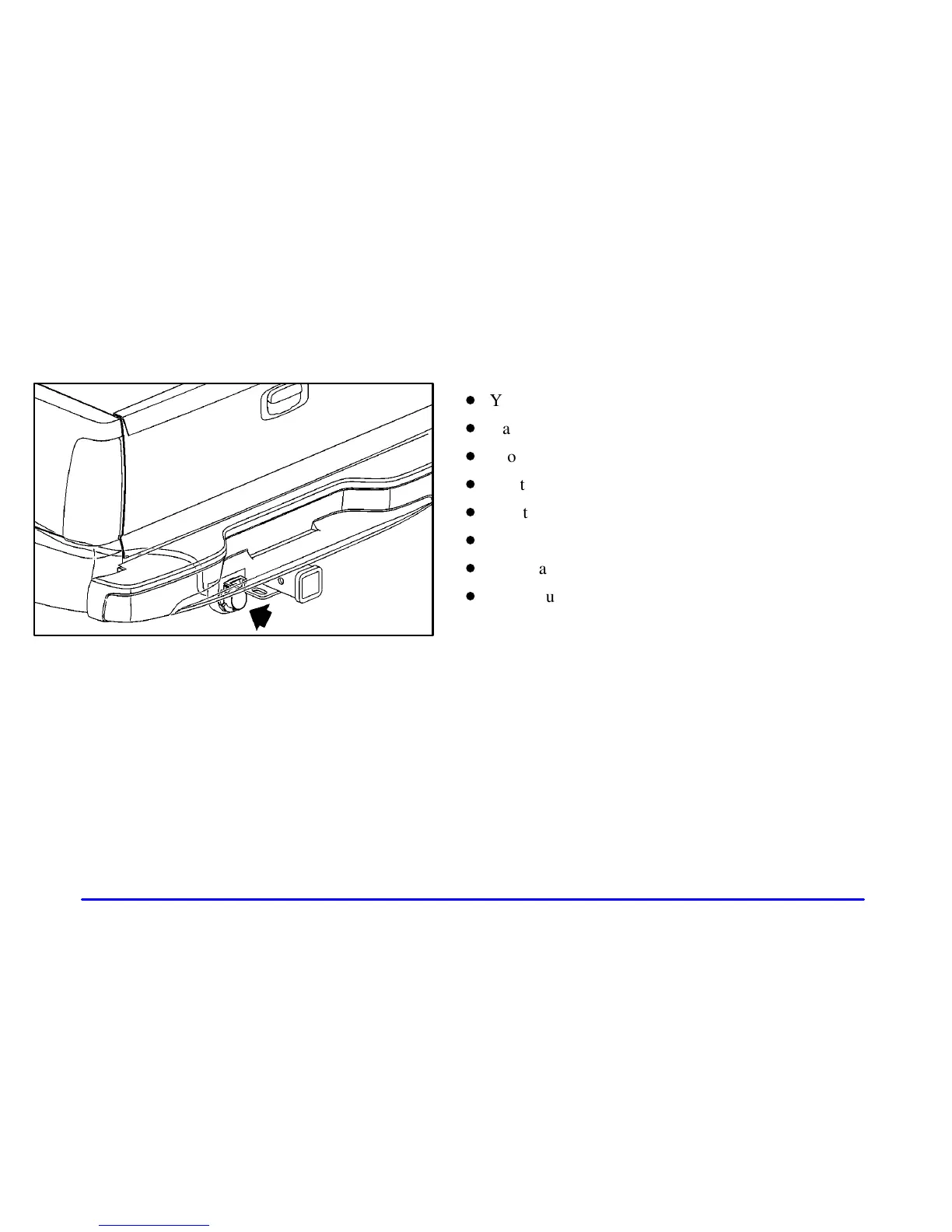

-duty trailer connector is attached to a bracket on
the platform hitch.*
* The Center High
-Mounted Stoplamp (CHMSL) wire
is tied next to the trailer wiring harness for use with a
trailer, slide-in camper or cap.
The eight
-wire harness contains the following
trailer circuits:
D
Yellow: Left Stop/Turn Signal
D
Dark Green: Right Stop/Turn Signal
D
Brown: Taillamps
D
White: Ground
D
Light Green: Back
-up Lamps
D
Light Blue: CHMSL
D
Red: Battery Feed
D
Dark Blue: Trailer Brake
A jumper harness for an electric trailer brake controller
and a trailer battery feed fuse are included with this
trailering package. (See “Instrument Panel Jumper
Wiring Harness” later in this section.)
If you need to tow a light
-duty trailer with a standard
four
-way round pin connector, an adapter connector is
included with your vehicle.
