4-93
Camper/Fifth-Wheel Trailer Wiring Package
(If Equipped)

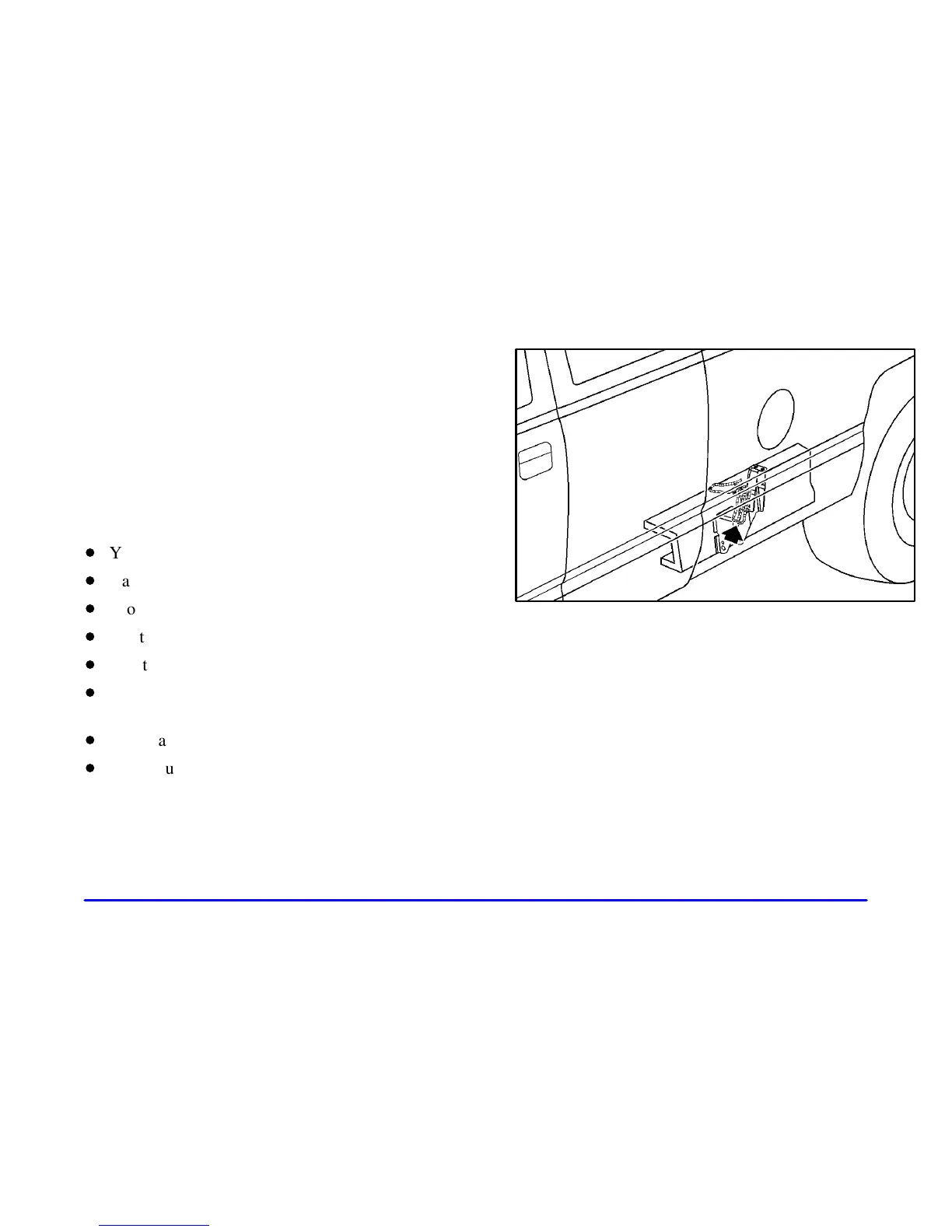

The eight
-wire camper harness is located under the
front edge of the pickup box on the driver’s side of the
vehicle, attached to the frame bracket. A connector will
have to be added to the wiring harness which connects
to the camper.
The eight
-wire harness contains the following
camper/trailer circuits:
D
Yellow: Left Stop/Turn Signal
D
Dark Green: Right Stop/Turn Signal
D
Brown: Taillamps
D
White: Ground
D
Light Green: Back
-up Lamps
D
Light Blue: Center High
-Mounted
Stoplamp (CHMSL)
D
Red: Battery Feed
D
Dark Blue: Trailer Brake
A jumper harness for an electric trailer brake controller
and a trailer battery feed fuse are included with this
trailering package. (See “Instrument Panel Jumper
Wiring Harness” later in this section.)
If your vehicle is equipped with the “Heavy-Duty
Trailering” option, please refer to “Heavy
-Duty Trailer
Wiring Package”, earlier in this section.
When the camper
-wiring harness is ordered without the
heavy
-duty trailering package, an eight-wire harness
with a seven
-pin connector and separate CHMSL
connector are located at the rear of the vehicle and are
tied to the vehicle’s frame.
