Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/28/22
374 Vehicle Care
Circuit
Breakers/
Minifuses
Usage
F40 –
F41 –
F42 Auxiliary Power
Outlet (CB)/
Lighter
(mini-fuse)

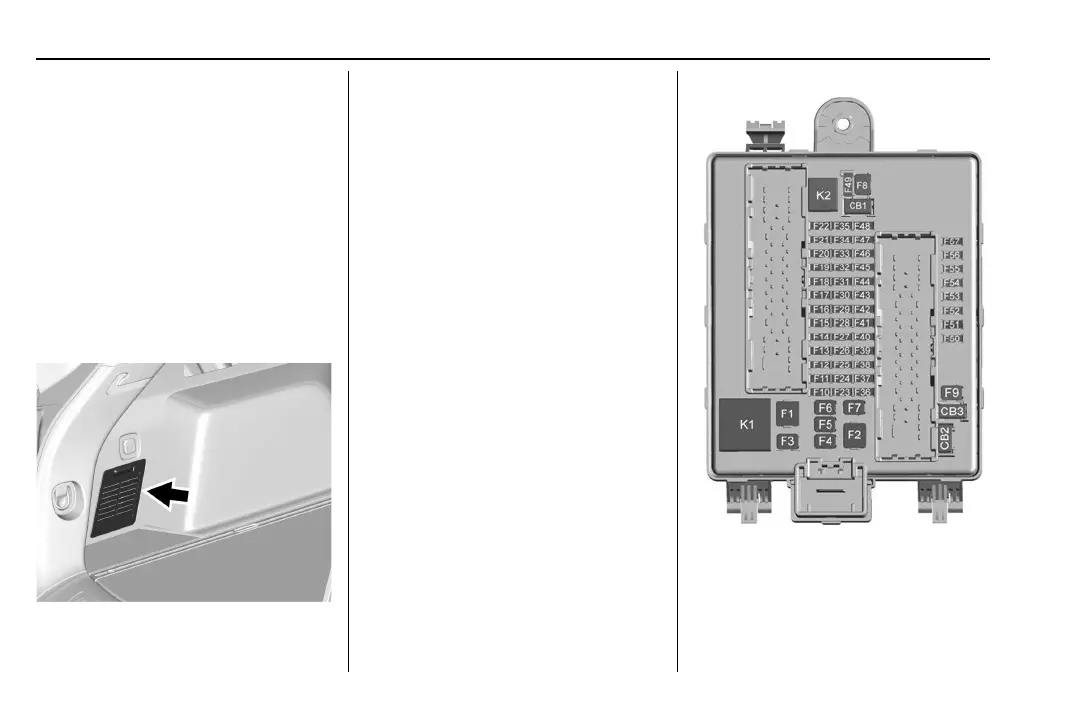

Rear Compartment
Fuse Block
The rear compartment fuse
block is in the cargo area, on
the driver side of the vehicle
behind the lower trim panel.
To open, turn the latch with a
flat-bladed tool and pull the
trim panel from the edges to
fold it down.
The label for this fuse block is
in the spare tire area, on the
foam under the cargo floor.
The vehicle may not be
equipped with all of the fuses,
relays, and features shown.
Fuses Usage
F1 –
F2 Trailer Battery 1
