3. The one (1) year term of this warranty does not apply to equipment where another limited warranty is available. This may include but is not
limited to, the solar controller ve (5) years and the solar modules ten (10) years (output warranty).
7.1 General Warranty Informtaion
Please visit gpelectric.com for our up-to-date General Warranty Information
7.2 Warranty Return Procedure
Please visit gpelectric.com to read the “frequently asked questions” section of our website to troubleshoot the problem. If trouble persists:
1. Call your Go Power!™ Technical Support team (1-866-247-6527)
2. Return defective product to place of purchase
7.3 Additional Information
Unless approved by Go Power! management, all product shipped collect to Go Power! will be refused. Test items or items that are not under warranty,
or units that are not defective, will be charged a minimum bench charge of ($50.00 US) plus taxes and shipping. A 15% restocking charge will be
applied on goods returned and accepted as “new” stock.
7.4 Out of Warranty Items
Go Power! electronic products are non-repairable, Go Power! does not perform repairs on its products nor does it contract out those repairs to a
third party. Go Power! does not supply schematics or replacement parts for any of its electronic products.

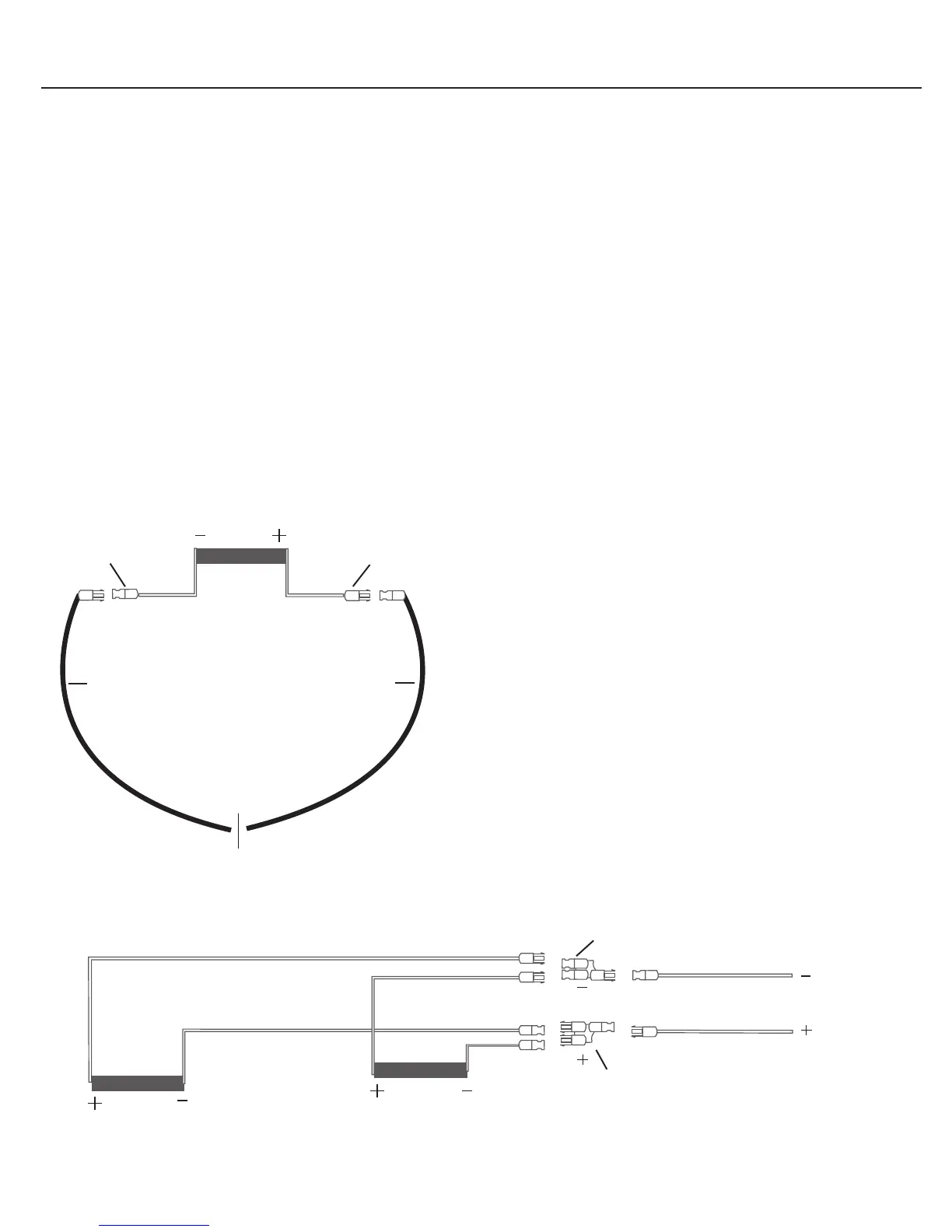

8.0 Diagrams
Diagram 1:
MC4 Power Cabels For Solar Flex
TM
Kits
The MC4 power cable is usually the nal connection between the solar array and the
solar controller. If it has not already been done, cut the MC power cable into two pieces
so that there is a positive conductor cable and negative conductor cable.
1. Cover the solar module(s) with an opaque material. Attach the appropriate MC4 power
cable conductor to the positive and negative connectors of the MC4 junction box. If
you have more than one module, refer to the specic diagram for wiring a parallel MC4
connection.
2. Run the positive and negative MC4 cable conductors from the solar array to the solar
controller. Attach a positive polarity label to the end of the positive conductor. If the
positive conductor needs to be shortened and the polarity label is removed, remember to
re-label it as both positive and negative conductors look exactly the same. Leave a few
feet of cable at the solar controller in case of future adjustment.
Note: solar module junction box and MC4 cables many not be exactly as shown.
Negative MC4
Cable Conductor
Positive MC4
Cable Conductor
Cut 50’ wire in half to
make two 25’ cables
Female (negative) MC4
Junction Box Connection
Male (positive) MC4
Junction Box Connection
Diagram 2:
Wiring Parallel (2) Modules with MC4 Parallel Connectors
(GP-FLEX-200, GP-FLEX-100E)
Note: solar module junction box and MC4 cables may not be exactly as shown.
Female (negative) MC4
Parallel Branch Connector
Male (positive) MC4
Parallel Branch Connector
MC4 Extension Cable to Solar Controller or Combiner Box
