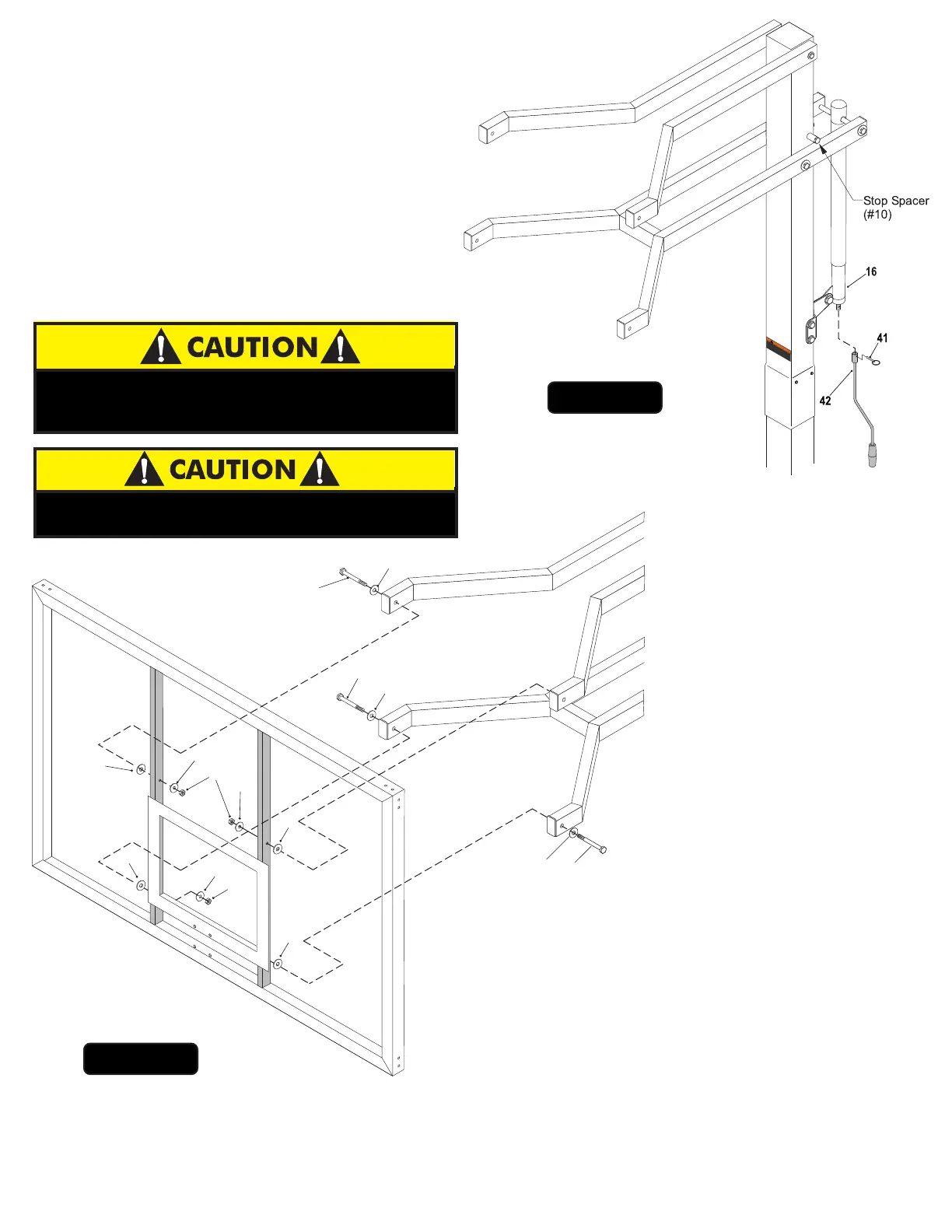

With at least three capable people, raise the backboard assembly
up and have the fourth attach Lower Board Arms to lower mounting
tubes on backboard using two bolts (#24), two plastic washers
(#5), four washers (#18) and two lock nuts (#4). See Figure 12.
NOTE: DO NOT over tighten these bolts. This is a pivot point.
NOTE: DO NOT over tighten these bolts. This is a pivot point.
12
14.
15.
Figure 12
ATTACHING BA CKBOARD T O BO ARD ARMS
REQUIRES AT LEAST FOUR CAPABLE ADULTS.
Figure 11
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET .
4L-8152-01
W
A
RN
IN
G
!
24
18
24
18
18
24
5
18
4
18
5
5
18
4
5
HANDLE BACKBOARD WITH CARE, IT IS A GLASS
PRODUCT. ALWAYS WEAR SAFETY GLASSES AND
GLOVES WHEN HANDLING GLASS.
Slide Actuator Crank (#42) onto shaft on the
bottom of Actuator (#16). Line up hole in shaft with
hole in Actuator Crank and insert Pin (#41) to
secure. See Figure 11.
To aid in the assembly of the backboard, lower the
backboard, by turning the Actuator Handle, until the
lower arm makes contact with Stop Spacer (#10).
16.
17.
Attach Upper Board Arms to upper mounting tubes on
backboard using two bolts (#24), two plastic washers (#5), four
washers (#18) and two lock nuts (#4). See Figure 12.
