Plastic ball link
(H0066-S)
Plastic ball link
(H0066-S)
Plastic ball link
(H0066-S)
40 mm
66 mm
Approx 75mm
Left Thread
Right Thread
Initial length for the rods from the servos to the swash plate.
Approx. 49 mm
Plastic ball link
(H0066-S)
Initial length for the rods from the swashplate to the blade grips.
Set Screw M2.5x18mm
(HC140-S)
Linkade Rod B
Aseembly

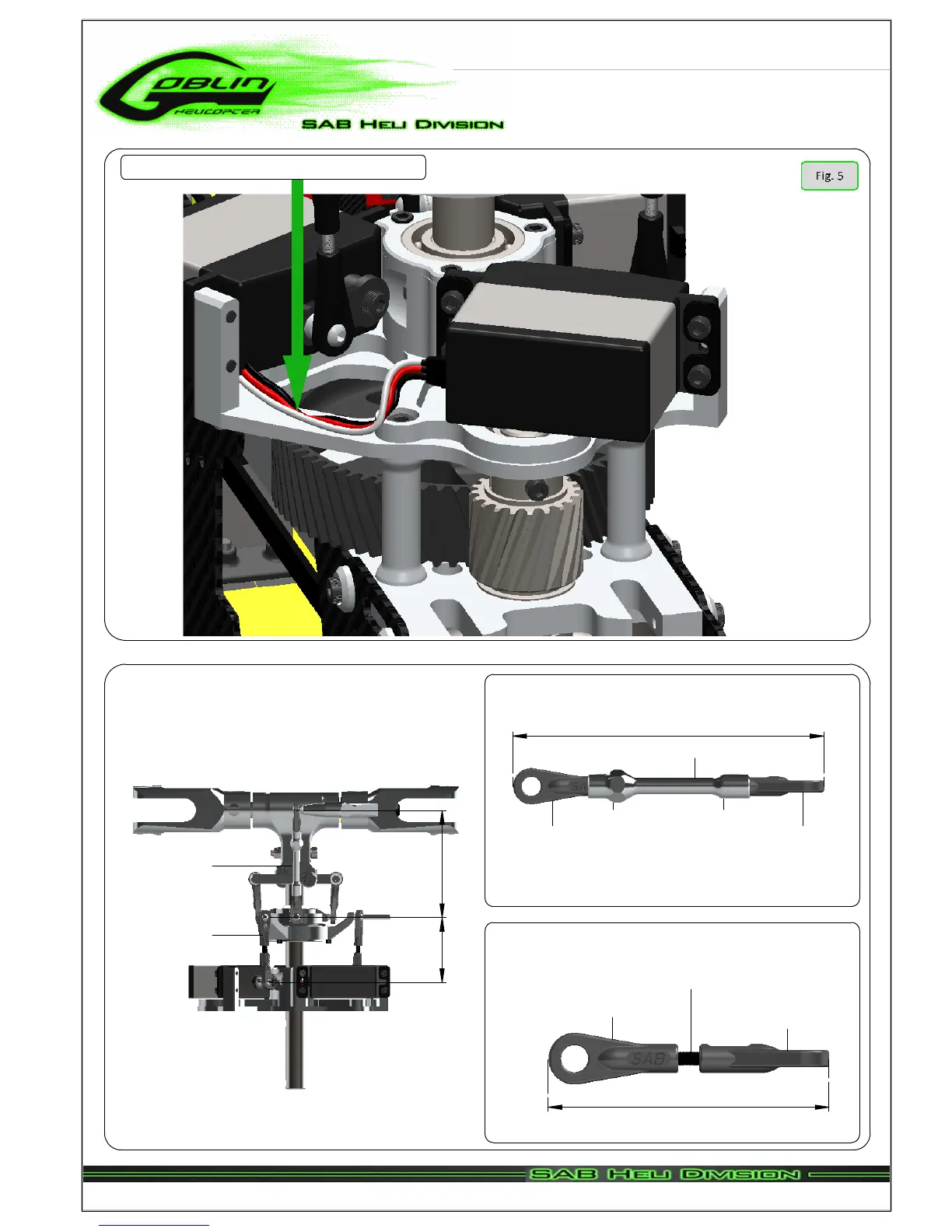

Head HPS Version Preliminary Setup
Adjust the linkage as shown. The linkage Rod A has thead right/left.
Turning, you can change the tracking without disconnecting the
plastic ball link.
If it is necessary to tighten
then horn screws,use the
included hexagonal wrench
(HA002)
The wire for the front servo must be positioned here
Linkade Rod A
Aseembly
Approx
Approx
Linkage Rod B Assembly ... x3
Linkage Rod A Assembly ... x2
(H0346-S)
Tool HA002
Copyright
©
2013 - SAB Heli Division - All rights reserved
Page 17
Chapter 8, Installation Of Swashplate Servos
