Spacer Support
Flybarless
(H0043-S)
Support
Flybarless
(H0043-S)
To install a one piece Flybarless system it is necessary to add the support shown in these figures.
Figure 4 shows the installed support. Figure 5 shows the control unit and the receiver installed on the support.
Socket Head Cap
Screw M3x6mm
(HC044-S)
Double-sided
Tape
Flybarless Unit
RX
Flate Head Cap
Screw M3x8mm
(HC134-S)
Socket Head Cap
Screw M3x6mm
(HC044-S)

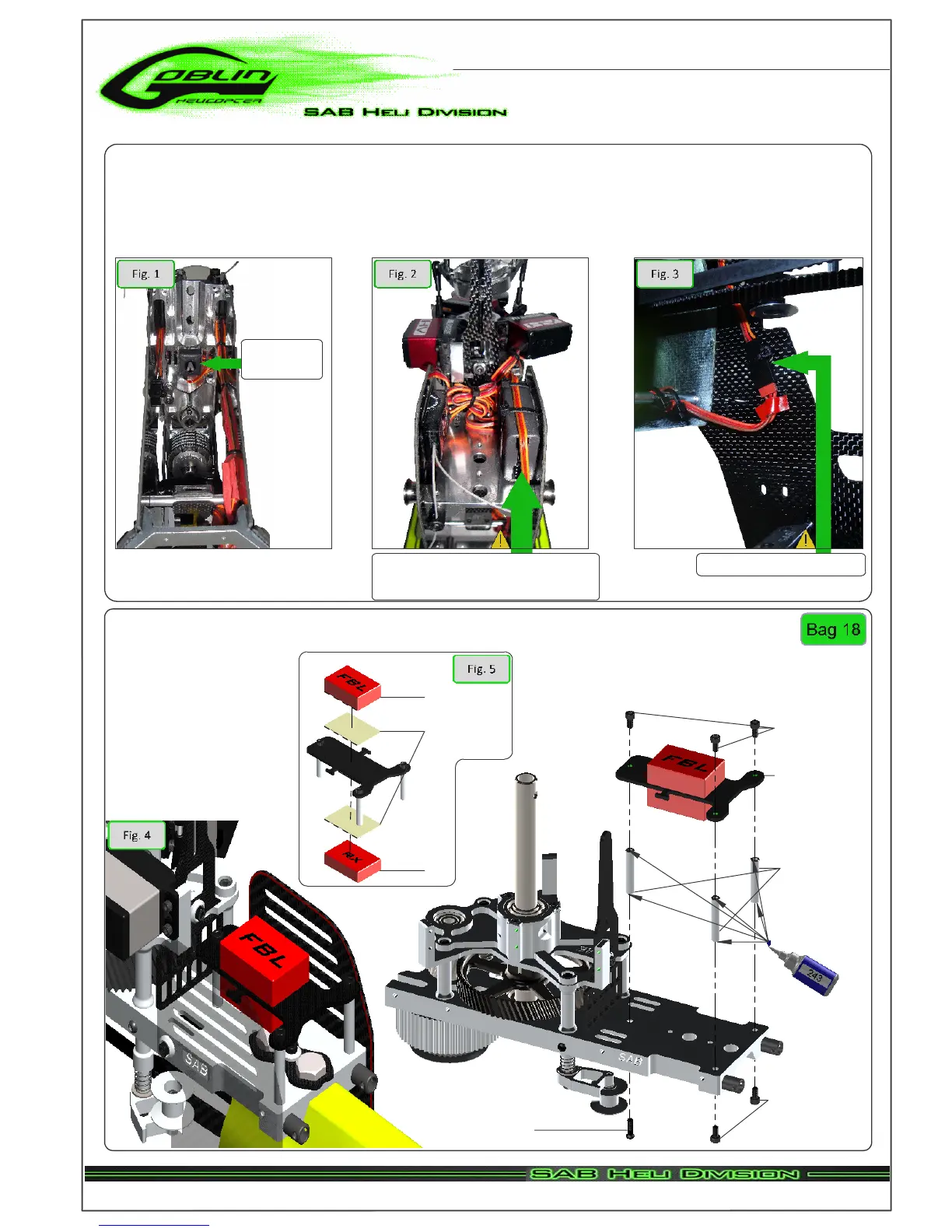

FLYBARLESS CONTROL UNIT AND RX INSTALLATION
It is possible to install any commercially available Flybarless control unit in the goblin.
For Flybarless systems with a separate sensor, the sensor must be installed under the plate ( Figure 1 ).
Figure 2 shows an example of installation of the receiver and flybarless control unit.
In Figure 3 you can see the extension lead for the tail servo. It is very important to include a connector for fast
disassembly of the boom module. The connector will prevent servo damage in case of boom separation during a crash.
Tail servo extension cable
It is important to lock the plugs of the
flybarless unit with an adhesive - for
example hot glue.
Slot for
sensor cable
