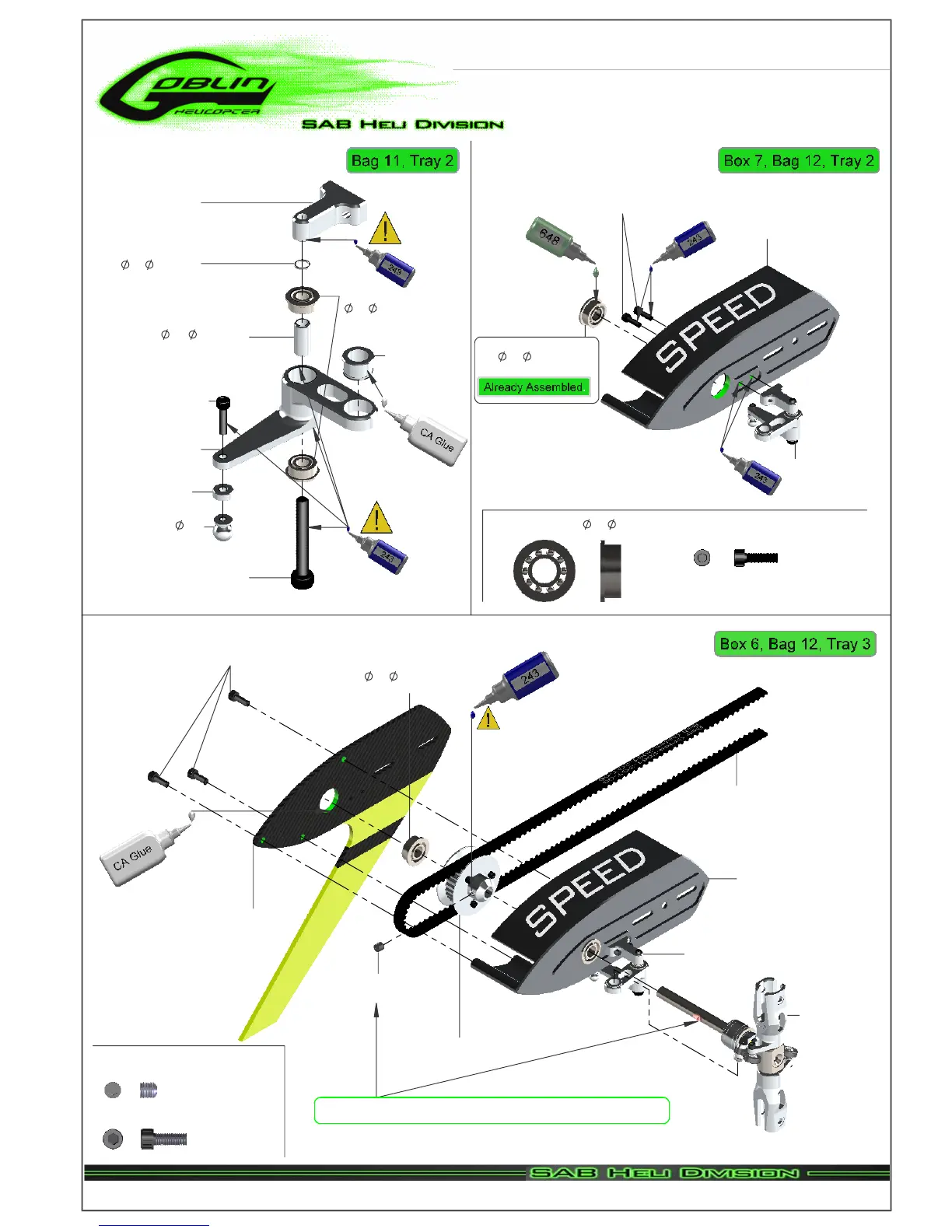

Goblin SPEED - Page 26

Tail Upper Case
(H0360-S)
Socket Head Cap Screw M3x8mm
......
x3
Socket Head Cap
Screw M3x8mm
(HC050-S)
Tail Case Spacer
(H0061-S)
......
x2
27T Pulley
(H0102-S)
Set Screw M4x6
Bell Crank Lever
Assembly
Flanged Bearing
6x 13x5mm
(HC414-S)
Socket Head Cap
Screw M2.5x8mm
(HC020-S)
Tail Side Plate
(H0373-S)
Finishing Washer
(H0007-S)
Tail Side Plate Assembly
Socket Head Cap
Screw M3x8mm
(HC050-S)
Tail System Assembly
Flanged Bearing 6x 13x5mm
Belt Gates
2061-3GT-06
(HC304-S)
Set Screw
M4x6mm
(HC153-S)
Tail Rotor Shaft
Assembly
Flanged Bearing
6x 13x5mm
(HC414-S)
Socket Head Cap Screw
M3x22mm
(HC086-S)
Uniball M2
5H6
(H0064-S)
Uniball Spacer
H0031 (H0064-S)
Bell Crank Lever
(H0059-S)
Socket Head Cap
Screw M2x8mm
(H0008-S)
Bush Bell Crank
(H0059-S)
Flanged Bearing
3x 7x3mm
(HC402-S)
Washer
3x 4x0.5mm
Bell Crank Base
(H0058-S)
Bell Crank Lever Assembly
Spacer 3 x 4 x 9.6mm
H0060 (H0059-S)
Bell Crank Lever
Assembly
Socket Head Cap Screw M2.5x8mm
Note: The set screw should align with the hole in the tail shaft
Tail Side Plate
Assembly
......
x1
Vertical Fin
(H0371-S)
Copyright © 2013 - SAB Heli Division - All rights reserved
Page 24
Chapter 12, Tail
