0.75mm
Safety Lock
Tail Boom
(H0038-S)
Finishing
Washer M3
(H0007-S)
Washer
3.1x
12x18mm
(H0078-S)

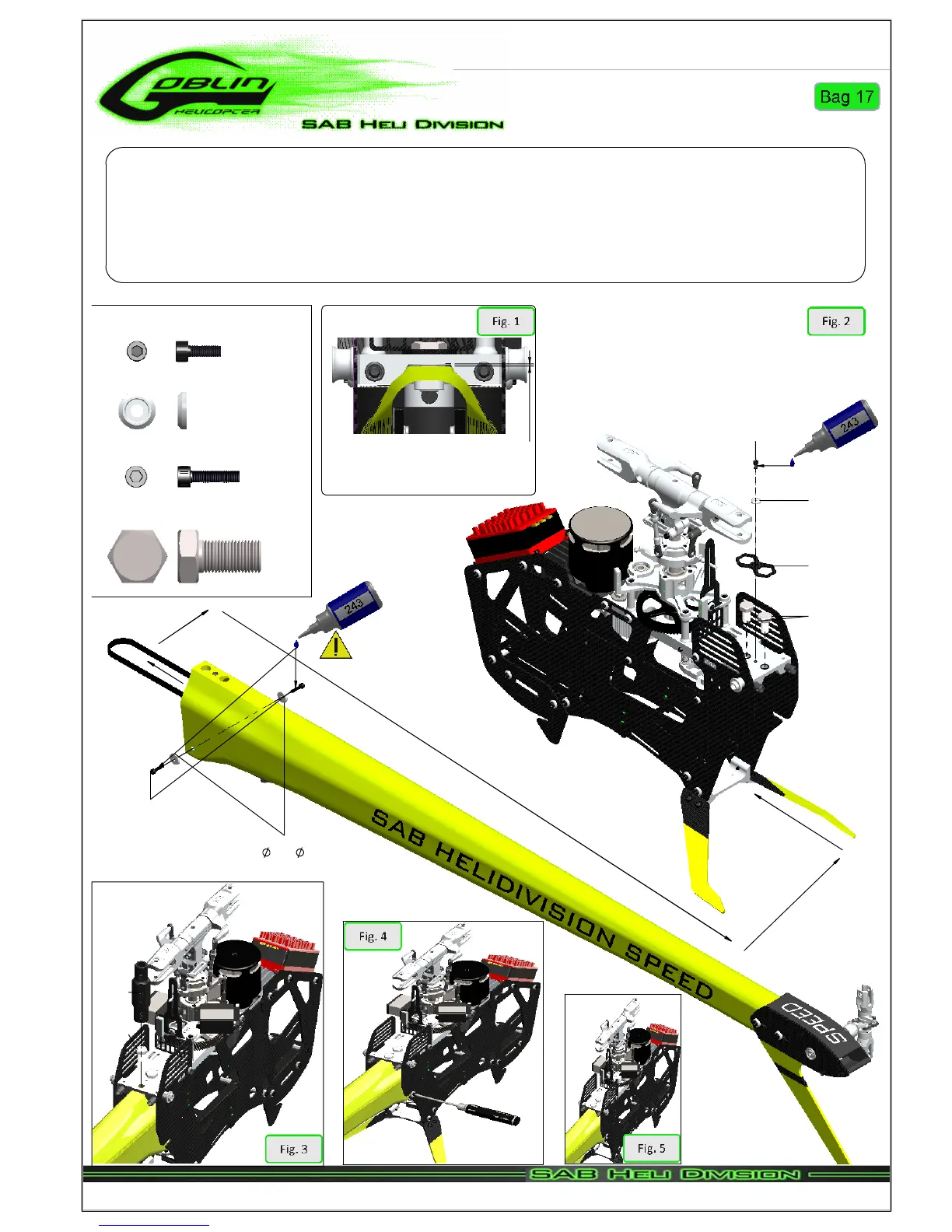

BOOM ASSEMBLY
*Insert the tail boom assembly .
*Lock the M8 nuts with the HA016 special tool supplied (Tray 2).
*Firmly lock the lateral srews M3x12. Use Loctile for this screw and make sure you remain tight.
*Assemble the H0038 carbon security plate .
*Connect the tail servo wire to the previously fitted extension lead.
....x1
Socket Head Cap
Screw M3x6mm
(HC044-S)
Nylon Screw
M8x20mm
(HC165-S)
....x2
....x2
Note:
Between the boom and the
aluminum plate, there is a space of
around 0.75mm.
Look the picture.
Socket Head Cap Screw M3x6mm
Finishing Washer M3
Socket Head Cap Screw M3x12mm
Nylon Screws M8x20mm
....x1
Socket Head Cap
Screw M3x12mm
(HC062-S)
HC165
HA016
Copyright © 2013 - SAB Heli Division - All rights reserved
Page 28
Chapter 13, Installation Of The Boom
