Goblin SPEED - Page 36

1
2
2
2
3
3
3
3
3
6
8
18
19
19
24
19
19
23
23
23
23
10
14
18
25
9
5
7
24
27
23
4
11
13
15
16
22
2
2
2
23
21
3
3
17
12
19
20
19
23
Main Frame
POS COD Name Specification Quantity
1 H0002 Battery Tray Carbon Fiber 1
2 H0003 Frame Spacers Aluminum 7
3 H0007 Finishing Washers M3 Aluminum 16
4 H0008 Canopy Poitioner Aluminum 2
5 H0149 Battery Plate Carbon Fiber 1
6 H0150 Stop Battery Plate Aluminum 1
7 H0151 Cylinder M2.5 Aluminum 2
8 H0153 Battery Support Carbon Fiber 1
9 H0155 Battery Protection Carbon Fiber 1
10 H0255 Finishing Washers M2.5 Aluminum 2
11 H0354 Main Frames Carbon Fiber 2
12 H0368 Vertical ESC Support Carbon Fiber 2
Main Frame
POS COD Name Specification Quantity
13
H0369
ESC Support Carbon Fiber 1
14
H0370
Wires Support Carbon Fiber 1
15 H0374
Landing Gear Mount Speed
Aluminum 2
16 H0375 Landing Gear Carbon Fiber 2
17 H0378 Canopy Locking Aluminum 2
18 HC020 Socket Head Cap Screws M2.5 x 8mm 2
19 HC056 Socket Head Cap Screws M3 x 10mm 10
20 HC062 Socket Head Cap Screws M3 x 12mm 4
21 HC098 Button Head Cap Screws M4 x 8mm 4
22 HC100 Button Head Cap Screws M4 x 10mm 2
23 HC128 Flat Head Cap Screws M2.5 x 5mm 16
24 HC134 Flat Head Cap Screws M3x8mm 4
25 HC200 Metrix Hex Nylon Nut M2.5mm 2
Copyright © 2013 - SAB Heli Division - All rights reserved
Page 34

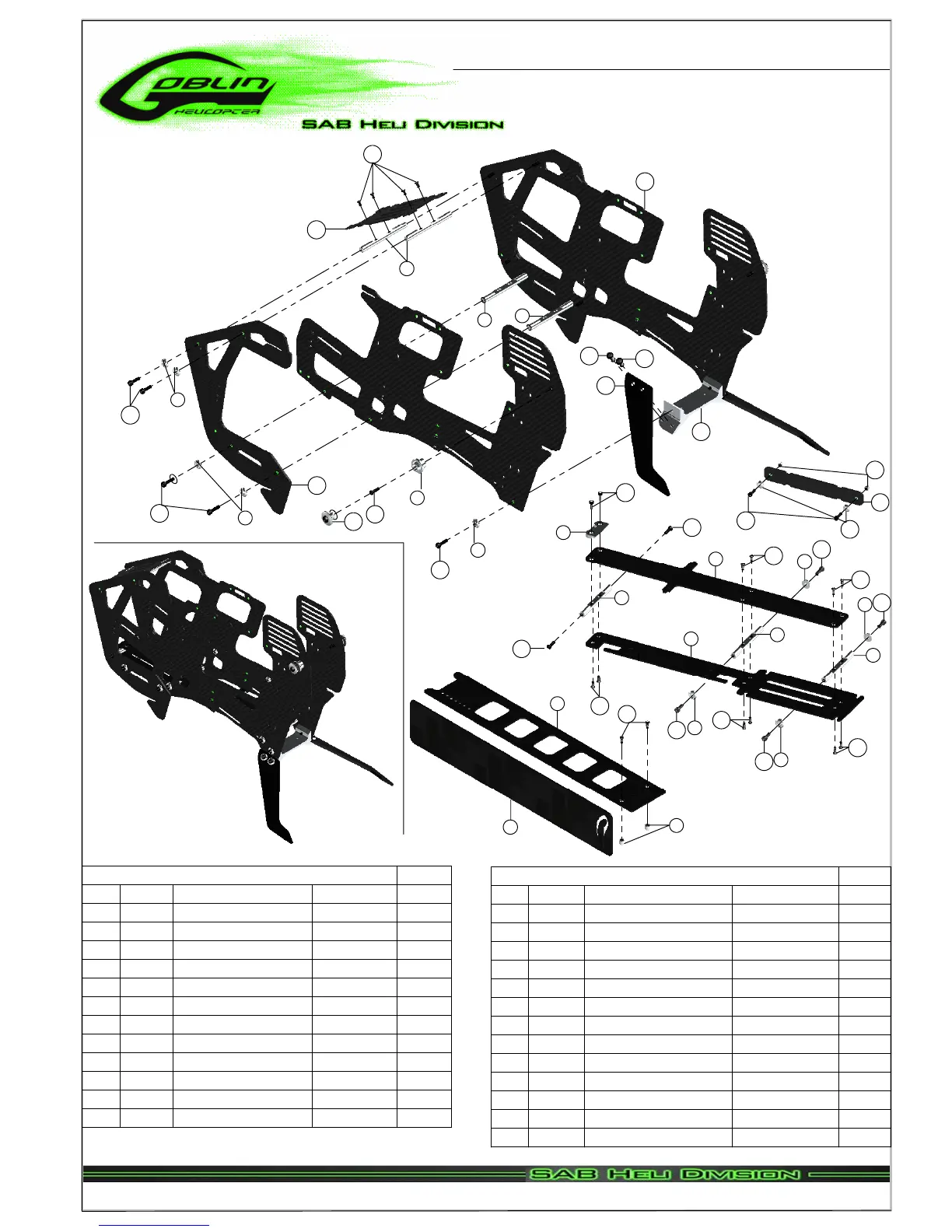

Chapter 17, Exploded view, Carbon Frame
