gofanco 4K120 - Receiver (RX) Panel Overview

6
Receiver (RX) Front and Rear Panel
1. IR In: Connect to the IR Receiver cable. See
IR Application on page 9 for proper cable
connection.
2. IR Out: Connect to the IR Blaster cable.
Point the IR eye at the display device's IR
window. See IR Application on page 9 for
proper cable connection.
3. HDMI Out: Connect to an HDMI display
4. Reset: Press to reset the receiver
5. RJ45 In: Connect to the Transmitter's RJ45
Out using a CAT cable
6. Power LED: On when the RX is powered on
7. Power Jack: Connect to the included power
adapter
7. HDMI In: Connect to your HDMI source
8. Reset: Press to reset the transmitter

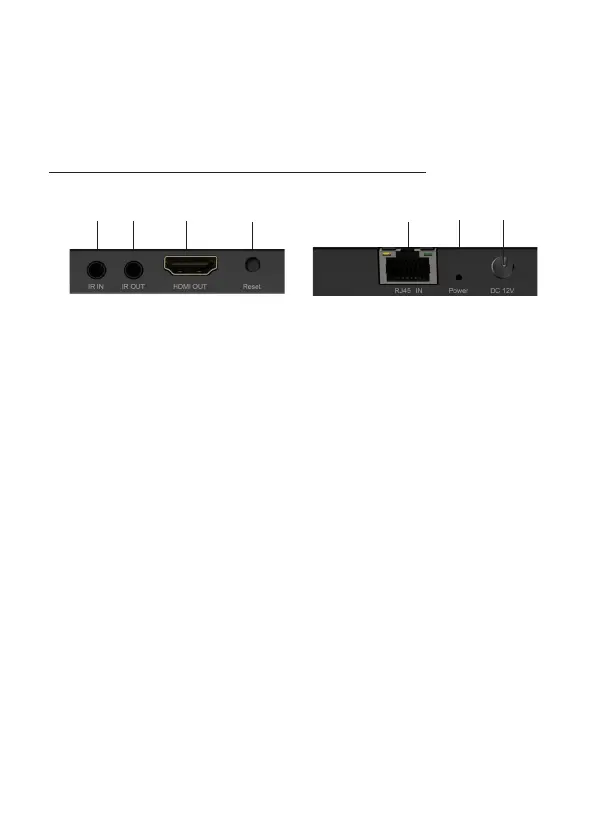

Figure 2: Receiver Front and Rear Panel Layout
1
2
3
45
6 7
