V. OPERATION

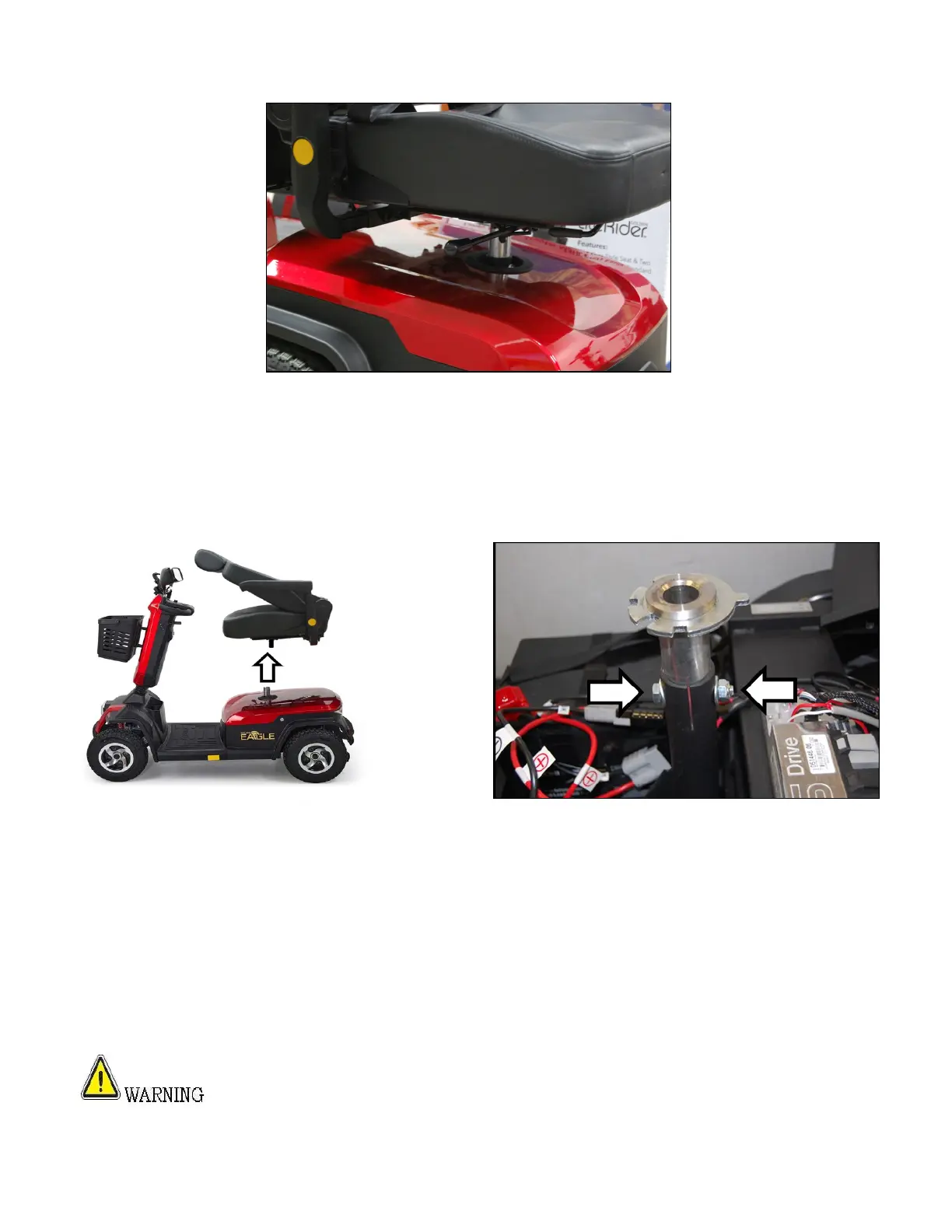

Figure 9: Seat Rotation Adjustment
Seat Rotation Lever
The seat can be rotated through 360° and locked at any 45° position.
1. Push forward on the seat rotation lever and rotate the seat to the desired position. See
figure 9.
2. Release the handle to lock the seat at any 45° position.
Figure 10 Figure 11: Seat Post Nut and Bolt
Seat Height Adjustment
To adjust the seat height:
1. Fold the seat back down, grip the seat on opposite sides and, with a firm grip; pull the
seat straight up and off of the seat pedestal. See Figure 10.
2. Remove the nut and bolt that holds the seat post in the seat pedestal. See Figure 11.
3. Position the seat post at the desired height while aligning the holes in the seat post
and the seat pedestal.
4. Reinstall the nut and bolt.
5. Place the seat back onto the seat post, and push down to lock the seat.
Make sure the seat is securely locked into place before operating
the scooter.
Seat Rotation Lever
Seat Slide
Lever
