Golden Technologies PR-401 - Maxicomfort

REVA_082012
21

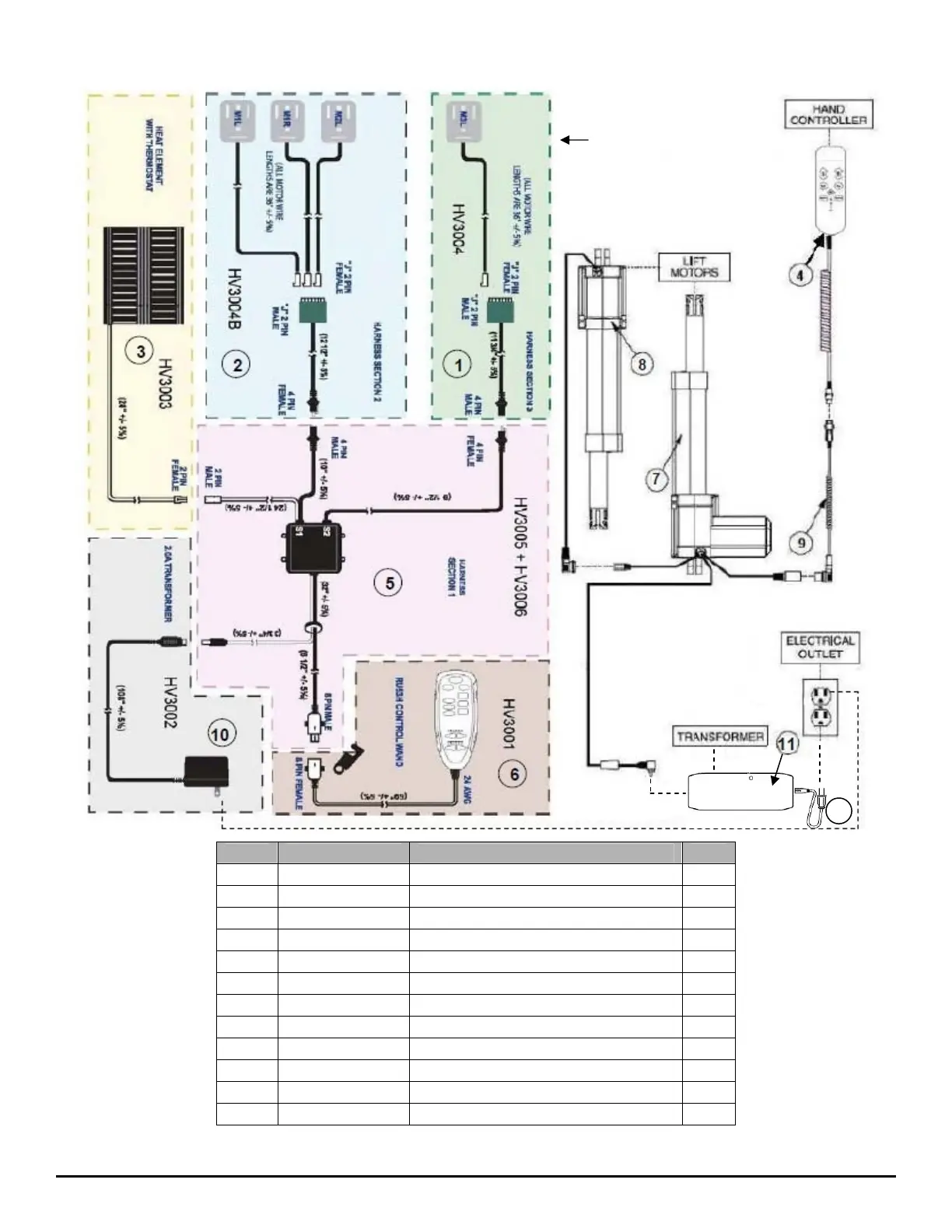

MaxiComfort Electrical Diagram
REF # PART NUMBER DESCRIPTION QTY.
1 HV3004 Massage Unit Assembly, Seat 1
2 HV3004B Massage Unit Assembly, Back 3
3 HV3003 Heat Pad 1
4 ZKAD-1 Hand Wand Auto Drive for Lift Chairs 1
5 HV3005 Control Box 1
6 HV3001 Heat Massage Deluxe Hand Control 1
7 GM1500-LM Motor Chair Okin Maxi Lift Motor 1
8 GM756R Motor Chair Okin Maxi Recline Motor 1
9 ZK1100-EXT Hand Control Extension 1
10 HV3002-2 Box Transformer 3 x 3 1/2 x 10 1
11 GM1501-A Motor Chair Transformer 1
12 GM1501-APUS Transformer Cord 1
Upper-back in middle
Lower-back
In-Seat behind knee
HV3000 COMPLETE
RELAXOR DHV SYSTEM
LED Light
DC Powe
r
12
Smart Tek System
Models: PR-756MC, PR-756L, PR-506, PR-505JP, PR-505S, PR-505M, PR-505L, PR-510
