IV. ASSEMBLY
Joystick Installation
1. Loosen the joystick adjustment screw located under the armrest. See figure 6.
2. Insert the joystick mounting tube into the joystick bracket under the armrest.
3. Adjust the position of the joystick to a comfortable spot.
4. Tighten the joystick adjustment screw to secure the joystick.
5. Connect the joystick cable and secure it by placing it into the Velcro loop on the side
of the arm assembly.
The joystick may be installed on the left or right arm according to your
preference.
Be sure the joystick cable is securely attached to the unit and
that the cable is not able to trail on the ground or become entangled on any
surrounding objects while the unit is in use.

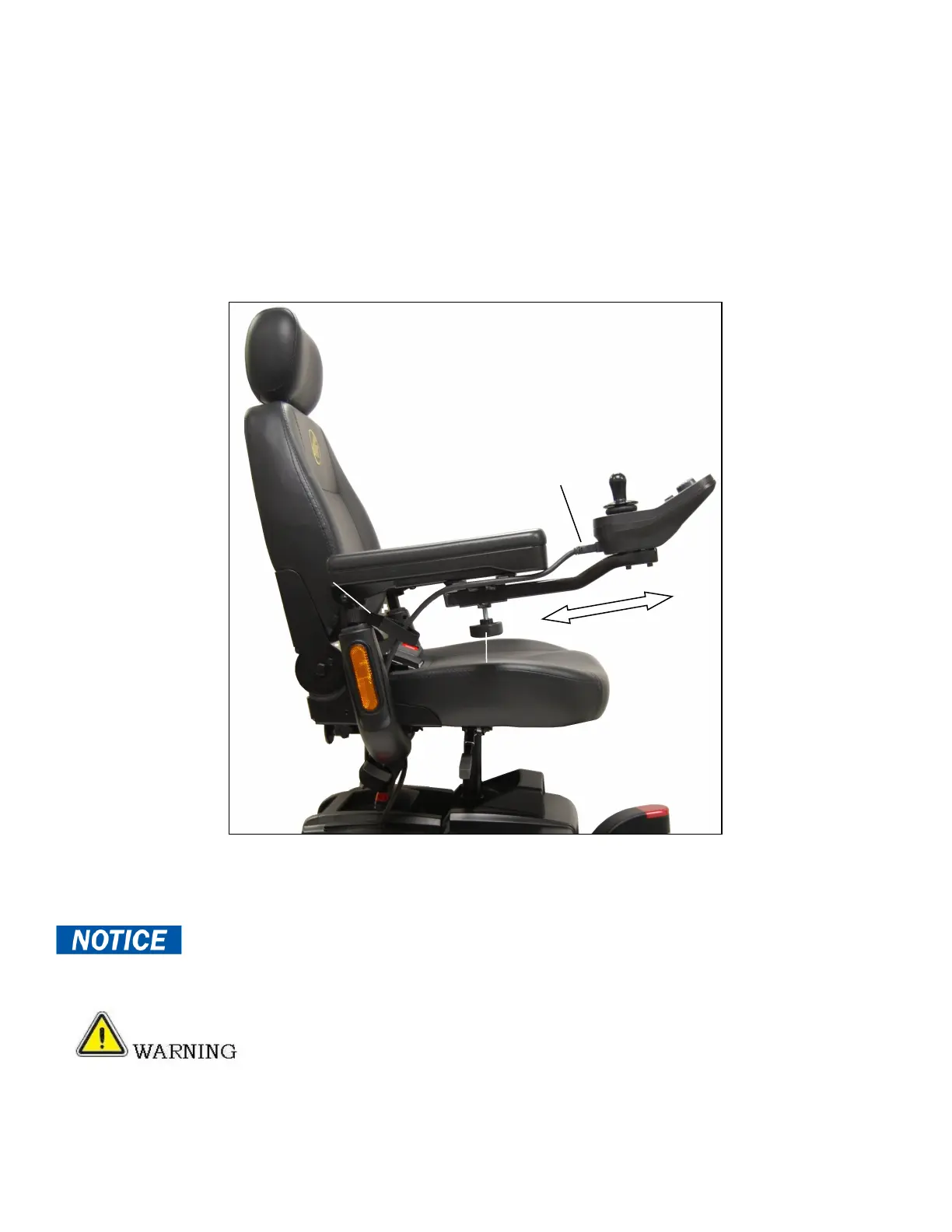

Figure 6
Joystick
Adjustment Screw
Connect
Cable
Velcro
Loop
