Use M3 bolts and nuts to connect the pushrod. Set it so the aileron is level when the arm is at 90 degrees.
Then use the wrench to adjust the pushrod to the appropriate length.
REPEAT FOR THE OTHER SIDE
ELEVATOR ASSEMBLY
NOTE: There are pictures of different planes in this manual, however, this plane’s elevator is assembled the
same way.

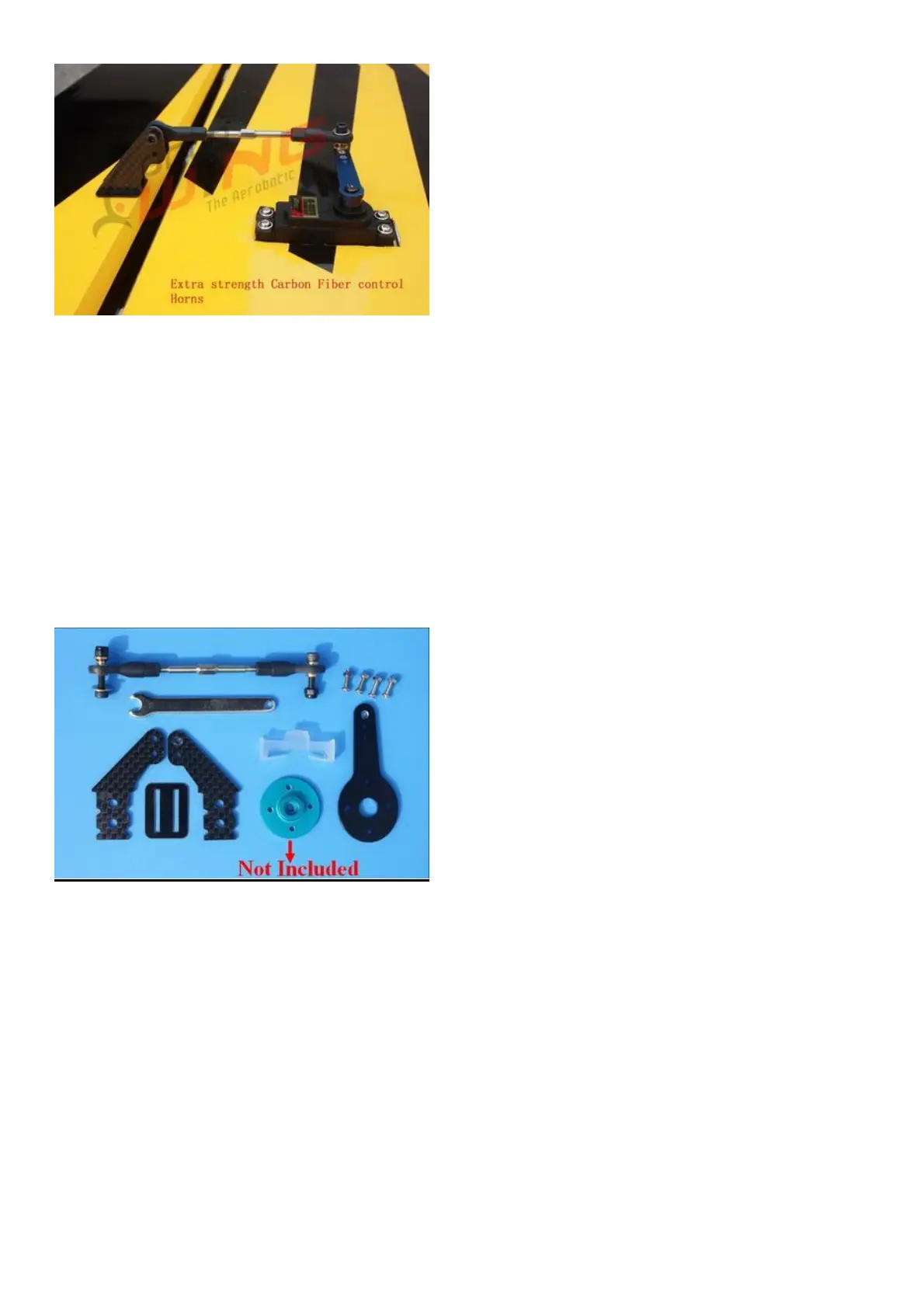

1. Push rod linkage set for elevator. 3mmx60mm Pushrods for elevator.
2. Find the slots for the control arms in the elevators and remove the covering where the horns are
inserted and the area for the plate.
