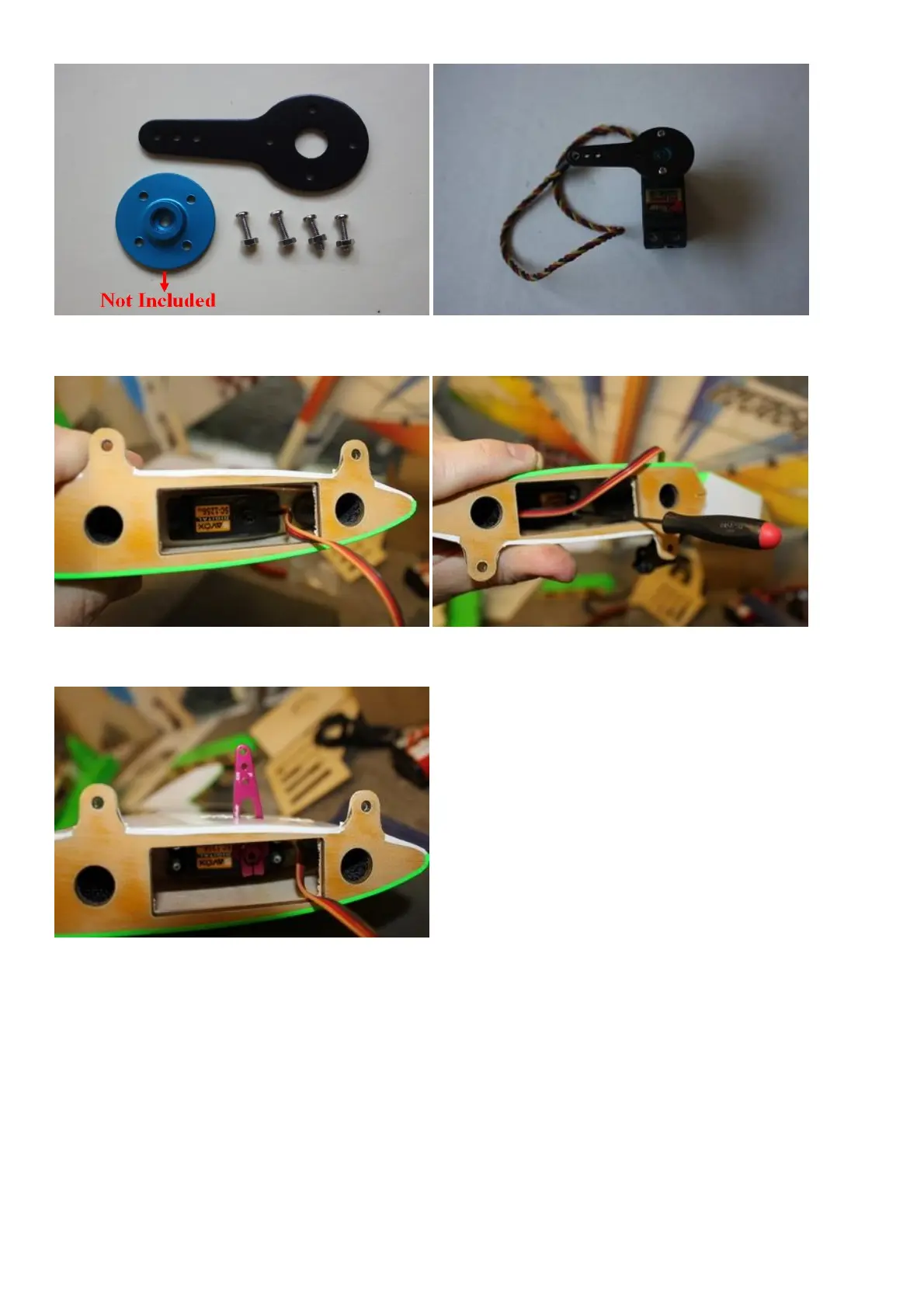

6. Place the servo into the elevator and screw in place. Remember to harden the holes with thin Cyano.
7. Place the servo arm back onto the servo, remembering to centre.
Use nutlock on the servo arm screw.
8. Fit the pushrod in place remembering one end is reverse threaded. Set it so the arm is centered and
the elevator is flat. Choose the holes depending on how much deflection you require.
