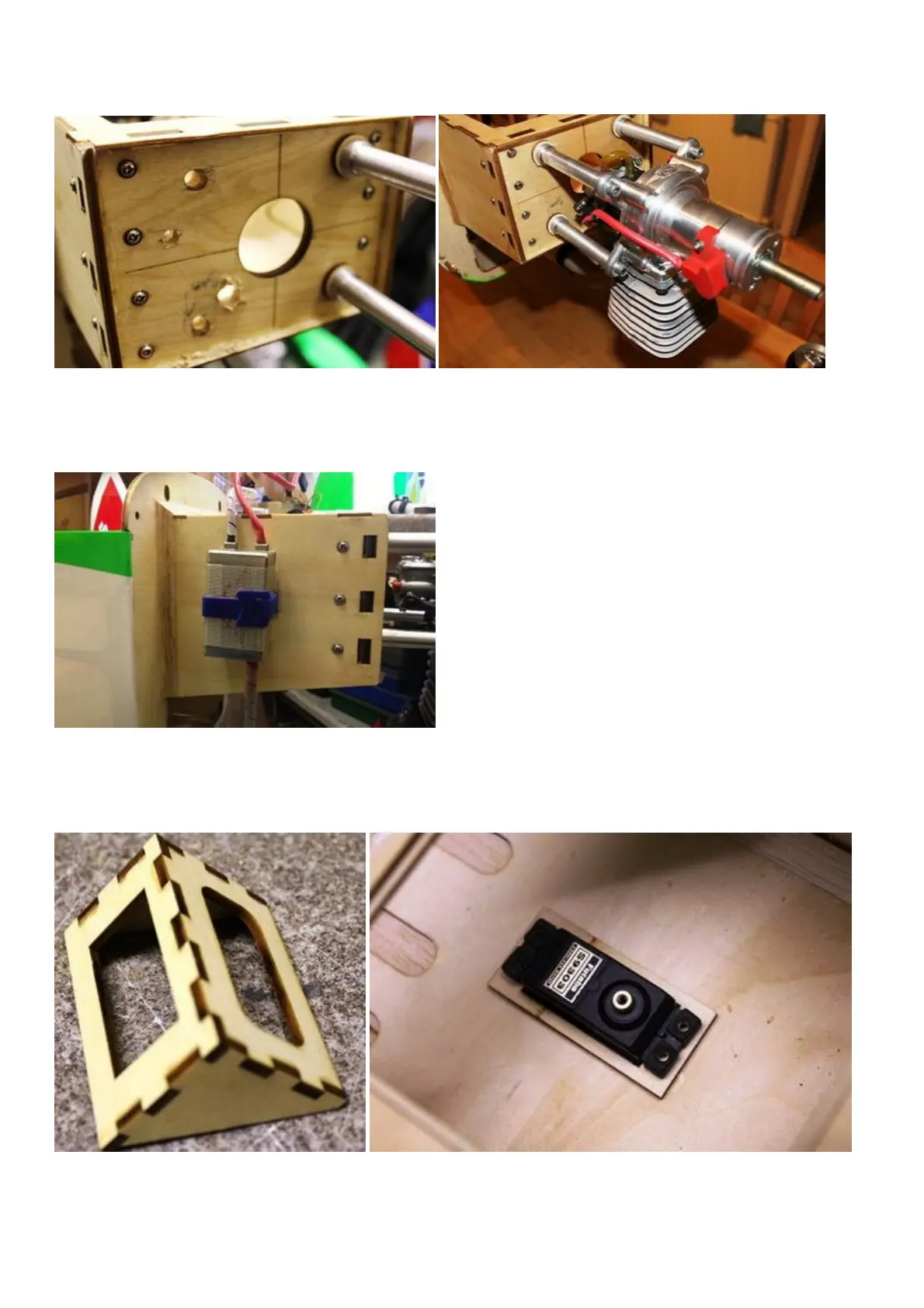

stand offs, mount your engine securely using bolts, washers, and locknuts. The use of thread-lock is also
highly essential for the engine bolts.
3. Mount the ignition module according to the manufacturer’s instructions. The best place to mount it is on
the side of the engine box. Secure the pickup lead and ignition wires with zip ties so that they do not vibrate
or touch any hot part of the engine or exhaust.
5. Assemble the throttle servo mount using the supplied laser cut parts or there is a servo cutout in the
bottom of the engine box for 50cc-70cc engines. Mount your throttle servo and complete your linkage setup.
A hole will need to be drilled on the firewall to allow the pushrod to connect to the throttle arm on the carb.
