Goldwing RC MX2 50CC V4 - COWLING INSTALLATION; Cowl Fitment for Engine

All contents copyright 2014, GoldWing RC Version 2.0, Feb 2014
The MX2 comes with many openings for the exhaust outlet, line up the exhaust then remove the covering for
the required outlet. They come with covers that can be used for cooling. Use a soldering iron to open up the
holes.
COWLING INSTALLATION
NOTE: There are pictures of different planes in this manual, however, this plane’s cowling is assembled the
same way.

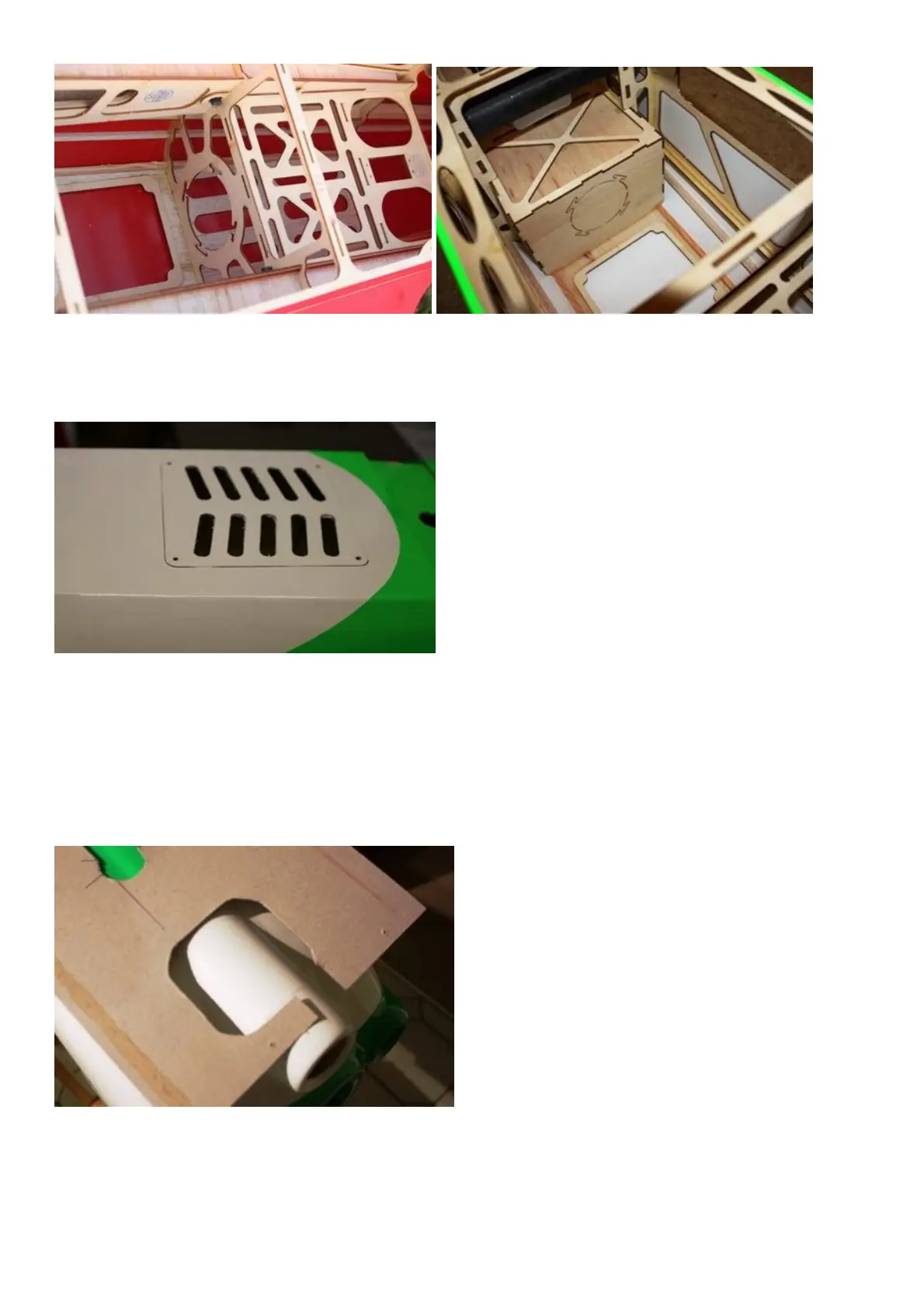

1. With the engine fitted, tape a piece of card to the bottom of the fuselage that can overlap the cylinder head.
Remove the engine and refit the cowl. Then fold over the card to show where the cylinder head would be as
below.
2. Mark onto the cowl the area to remove, and remove with a dremel.
