9 Assembly Instructions (Frame)
N
O
TE:
CHOKING HAZARD - Small Parts. Not for children under 3 years.
ADULT ASSEMBLY REQUIRED - Contains small parts, sharp points and sharp
ed
g
e
s.

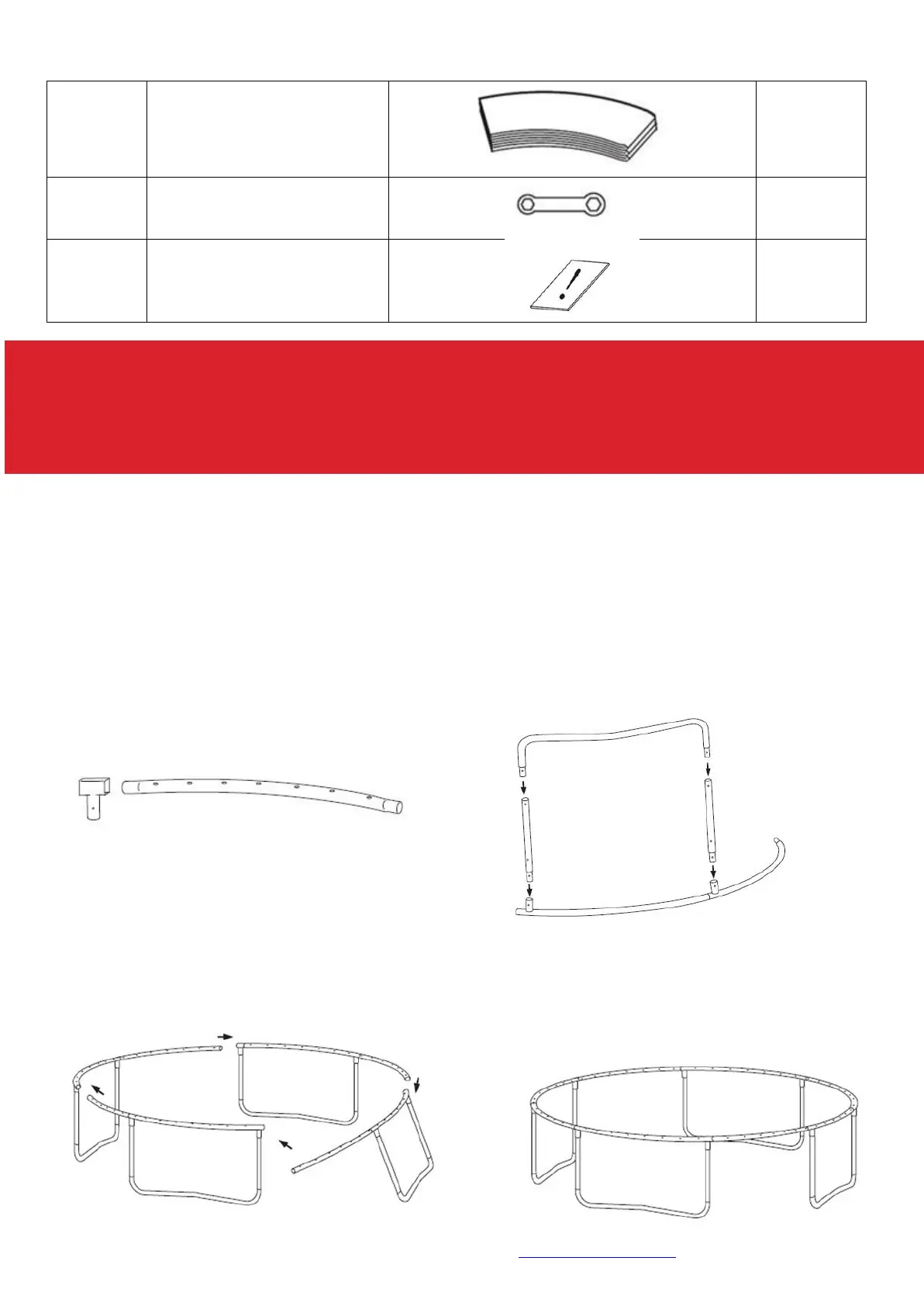

1. Connect the Top Rail Tube (2) with T-Joint (1),
as shown in the picture below.
2. Install the W-Shaped Leg Tubes (3), Vertical
Leg Tubes (4) with T-Shaped Joint (1). Ensure
the locking pins are aligned with locking holes
and pin locks into the secured position.
3. Put all assembled Top Rail Frames together as
shown as below.
4. When it is done correctly, the trampoline frame
should look like the illustration below.
