12 Assembly Instructions (Safety Net)
N
O
TE:
CHOKING HAZARD - Small Parts. Not for children under 3 years.
ADULT ASSEMBLY REQUIRED - Contains small parts, sharp points and sharp
ed
g
e
s.

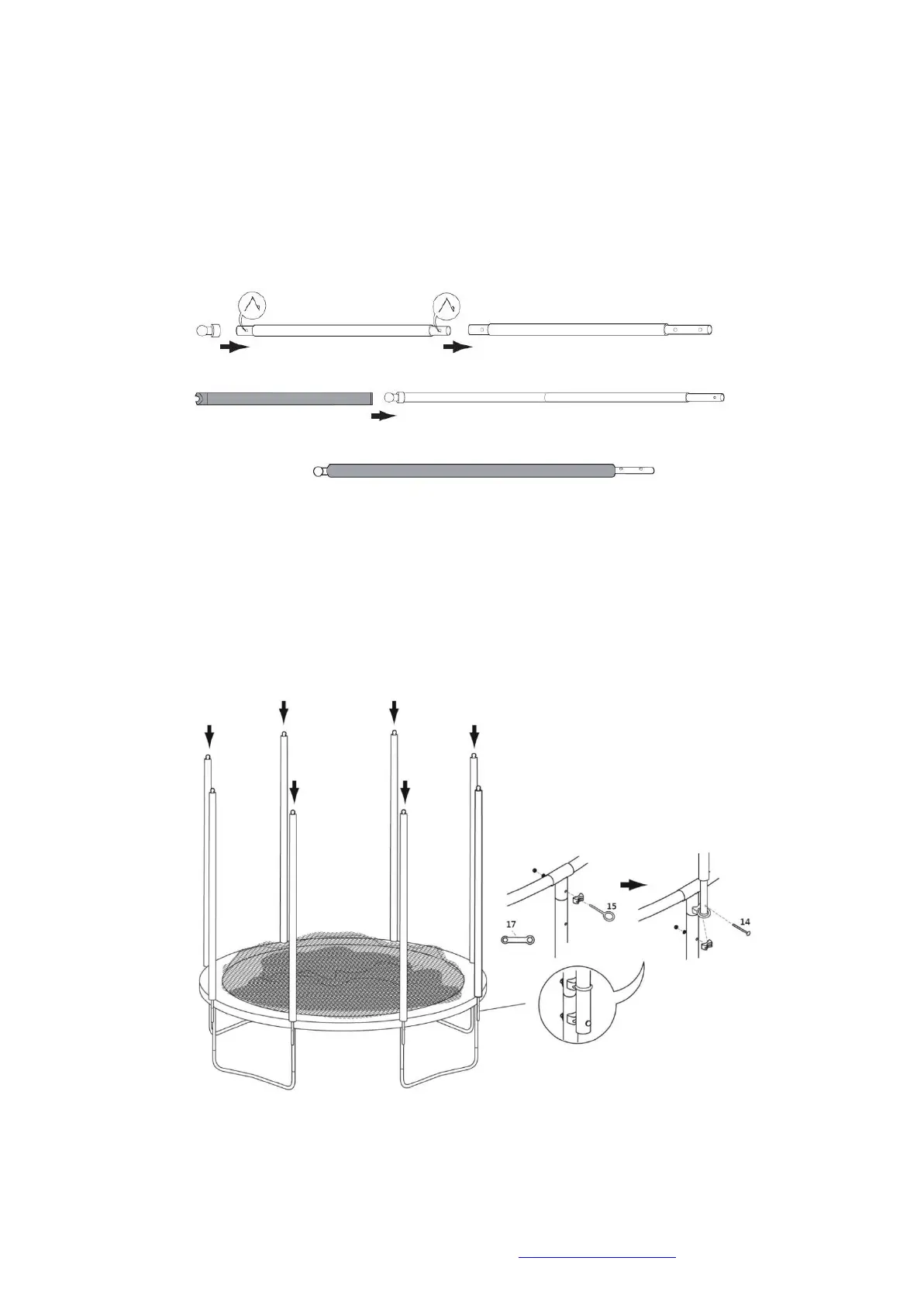

ASSEMBLY STEP - ENCLOSURE
1. Connect all Upper Pole Tubes (8) to the Lower
Pole Tubes (9).
2. Insert the Ball Cap (11) to the top of upper pole
tube (8), and fixed by Ball Cap Screw (12).
3. Locate the 8-T-joints. Align holes. Secure the
Screw Sets B (15) to T-Joint. Insert the
assembled Pole Tubes done in previous step to
the Screw Sets B.
4. Secure the poles with Screw Sets A (14) by
Spanner (17). DO NOT OVERTIGHTEN!
Repeat steps 3 with the remaining 7 enclosure
poles. See below.
To Next Page
