Quick Start Guide for power supplies
No. 53995, 53996, 53997, and 53998:
ATTENTION! Read the instructions carefully and completely. It is part of the product and contains important notes for use. Keep this docu-
ment! This manual is a quick start guide. Find more information on enclosed CD-ROM and/or via www.wentronic.com as download version,
or by mail where applicable. Find the address at the bottom of the page.
1 Safety Instructions:
ATTENTION! Only skilled electricians may assemble and disassemble the housing of the product.
ATTENTION! Risk of electric shock! Avoid contacting mains voltages!
ATTENTION! Risk of burning by overloading! Attend to the maximum output currents of the product!
ATTENTION! Risk of short-circuit! Never bridge contacts! Do not put things into slots or ports!
ATTENTION! Risk of stumbling! Attend to safe cable connections and laying!

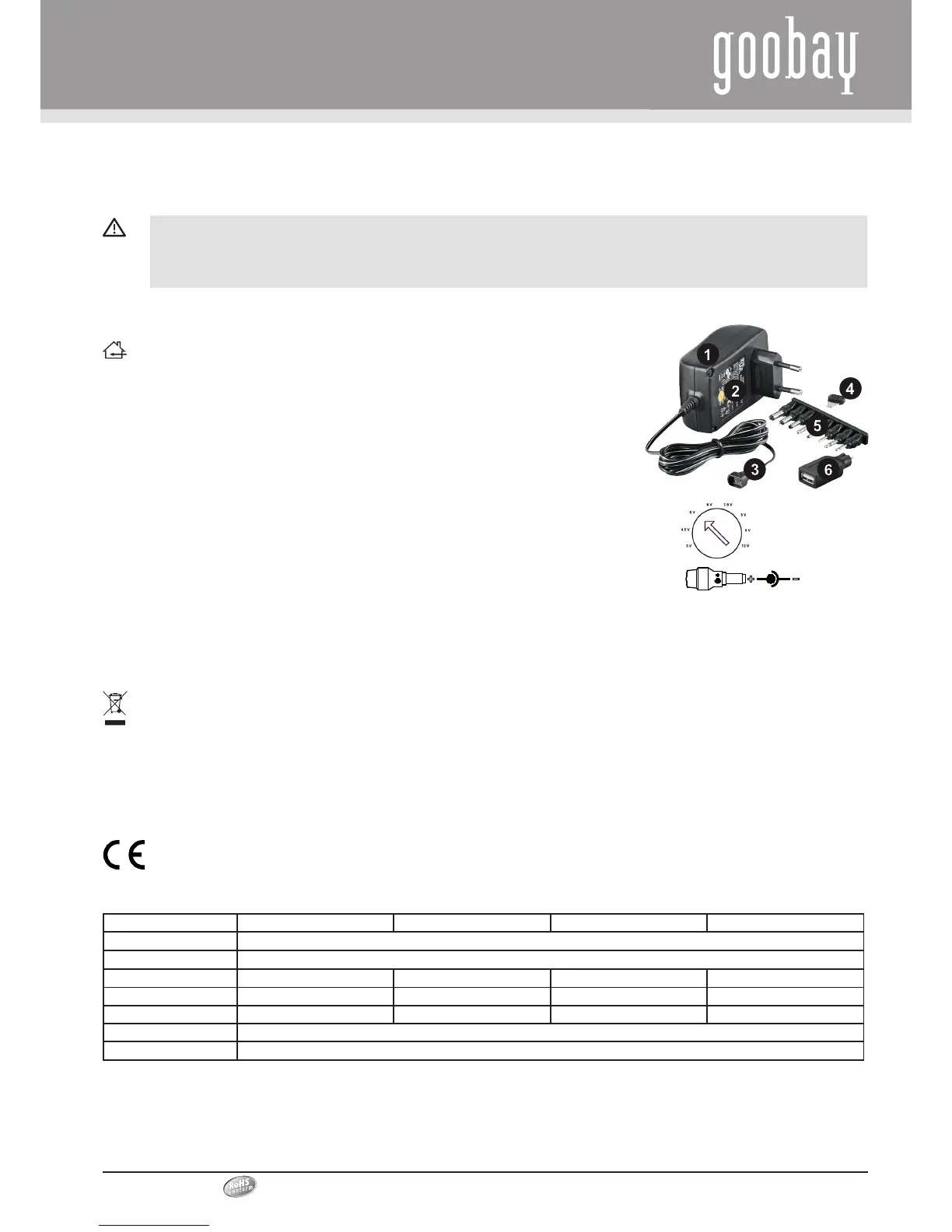

2 Description and Function: Sample Figure:
Your power supply is made for using with notebooks
or other mobile devices, operating with 100-240 V AC.
It comes with 8/9 DC adaptor plugs and must be only
used in dry interior rooms.
3 Connecting and Operating:
1. CURRENT: Verify the current requirement of the unit is compatible to your product.
2. POLARITY: Determine the polarity (+ or -) of the unit.
3. VOLTAGE: Set the required output voltage at the unit.
4. ADAPTOR PLUG: Select the tting output plug.
5. OUTPUT PLUG: Plug it into the DC input jack of your device.
NOTE: The positive setting (negative ground) is the most common requirement.
6. PLUG IN: Plug in the adaptor to a 100-240 V AC mains socket.
7. IMPORTANT: If the unit does not operate properly, check the polarity setting immediately!
Remove the unit from mains when not in use.
4 Warranty and Responsibility:
• The producer grants a 2 years warranty to a new device.
• As the manufacturer has no inuence on installation, warranty only applies to the product itself.
• The manufacturer is not liable for damages to persons or property caused by improper installation,
operation or maintenance.
• Do not alter or modify the product or its accessories.
• Any use other than described in this user`s manual is not permitted and causes loss of warranty, loss of guarantee, and non-liability.
• We reserve our right for misprints and changes of the device, packing, or user`s manual.
5 Disposal Instructions:
According to the European WEEE directive, electrical and electronic equipment must not be disposed with consumers waste. Its compon-
ents must be recycled or disposed apart from each other. Otherwise contaminative and hazardous substances can pollute our environment.
You as a consumer are committed by law to dispose electrical and electronic devices to the producer, the dealer, or public collecting points
at the end of the devices lifetime for free. Particulars are regulated in national right. The symbol on the product, in the user`s manual, or at the pa-
ckaging alludes to these terms. With this kind of waste separation, application, and waste disposal of used devices you achieve an important share to
environmental protection.
WEEE Directive: 2002/96/EC WEEE N
o
: 82898622
6 CE Declaration:
This device corresponds to EU directive 2004/108/EC and 2006/95/EC: With the CE sign Goobay
®
, a registered trademark of the Wentro-
nic GmbH ensures, that the product is conformed to the basic standards and directives. These standards can be requested online on www.
goobay.de. All trademarks and registered brands are the property of their respective owners.
7 Specications:
Revision Date: 2012-01-27
Version 2
Made in China.
Model 53995 53996 53997 53998
Input voltage (V AC) 100-240
Output voltage (V DC) 3/4.5/5/6/7.5//9/12
Output current (mA) 600 1000 1500 2250
max. output power (W) 7.2 12.0 18.0 27.0
Stand-by power (W) 0.16 0.2 0.3 0.3
Efciency Average ~ 65%
DC plug size (mm) 2.5 mm / 3.5 mm / 3.5 x 1.35 / 4.75 x 1.75 / 5.5 x 2.1 / 5.5 x 2.5 / 5.5 x 1.75 / 6.5 x 1.0 / 6.3 x 3.0
1 power supply unit
2 voltage slector
3 DC connection
4 tool
5 DC plug
6 USB adaptor
