Goobay 54781 User Manual

Goobay®
by Wentronic GmbH | Pillmannstraße 12
38112 Braunschweig | Germany
REV2021-11-24
V2.0cl
54781
12 V Power Supply
1 Safety instructions
The user manual is part of the product and contains important information for
correct use.
• Read the user manual completely and carefully before use.
The user manual must be available for uncertainties and passing the product.
• Keep this user manual.
Voltage-free only when the plug is pulled out.
• In case of emergency, after use and during thunderstorms, disconnect
the power plug from the socket directly at the plug housing.
• Do not open the housing.
• Do not modify product and accessories.
• Do not short-circuit connectors and circuits.
Do not operate a device if it is not in working order. In such cases, it must be
secured against unintentional further use.
• Use product, product parts and accessories only in perfect condition.
• Avoid stresses such as heat and cold, moisture and direct sunlight, mic-
rowaves, vibrations and mechanical pressure.
• In case of questions, defects, mechanical damage, trouble and other
problems, non-recoverable by the documentation, contact your dealer or
producer.
• Compare the specications of product, power supply and peripherals.
These must be identical.
• Use only in dry conditions.
• Never touch the power plug with wet hands.
• Do not operate covered.
• Do not operate in potentially explosive atmospheres.
Risk of injury from tripping and falling.
• Make sure that the connection cable is laid in such a way that it does not
obstruct anyone and is not damaged.
Not meant for children. The product is not a toy!
• Secure packaging, small parts and insulation against accidental use.
2 Description and function
2.1 Product
This product is a stabilized plug-in power supply for charging and operating
o󰀩ce equipment via DC port.
2.2 Scope of delivery
12 V Power supply, User Manual

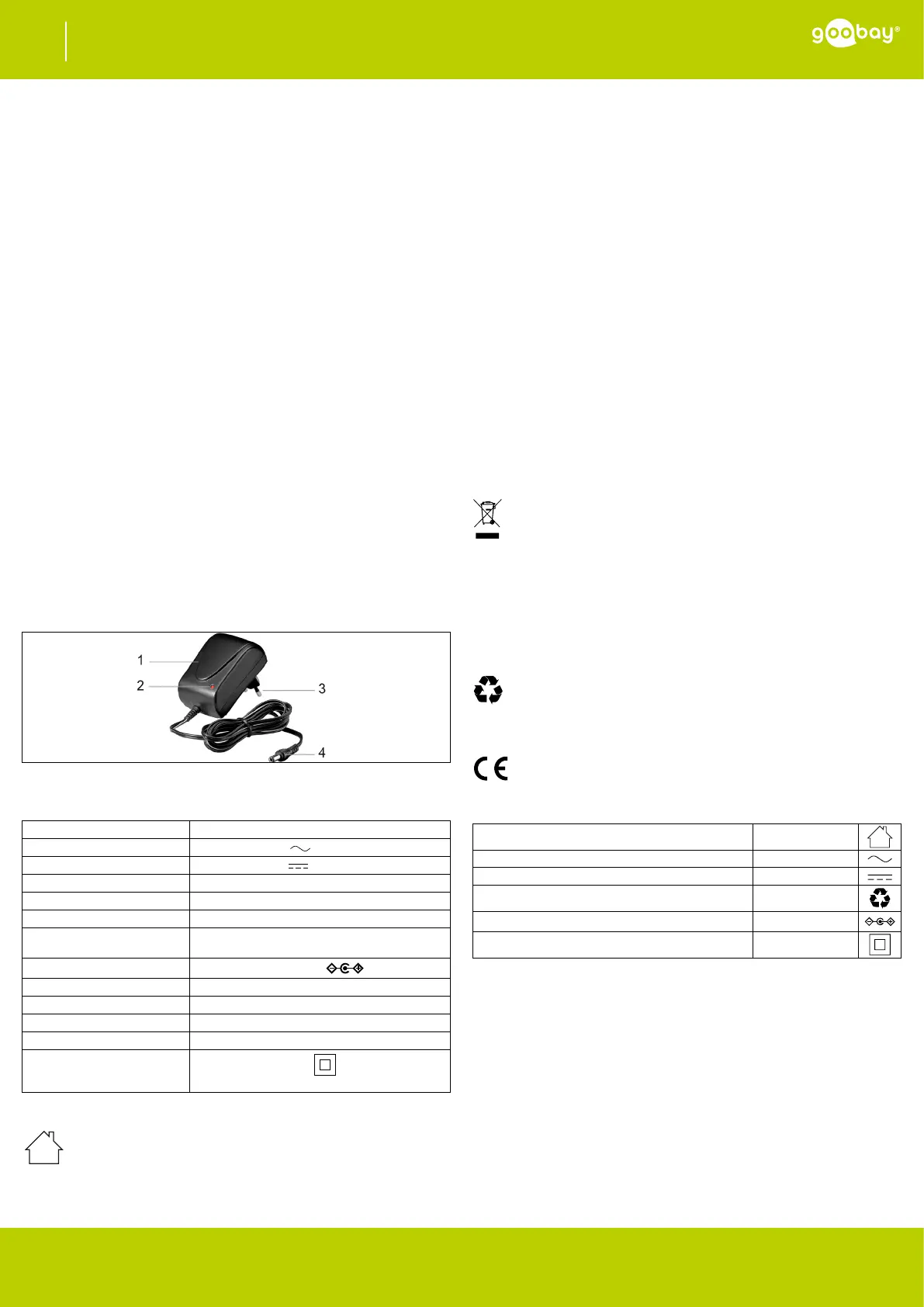

2.3 Operating Elements
1 Housing
2 Operating LED
3 Euro plug
4 DC plug
2.4 Specications
Article number 54781
Rated voltage / current 100-240 V
, 50/60 Hz, 0.35 A
Output voltage 12.0 V
, 1.5 A, 18.0 W
Average active e󰀩ciency 86.2 %
E󰀩ciency at low load (10 %) 78.4 %
No-load power consumption 0.09 %
Connectors
Euro plug (Type C, CEE 7/16);
DC plug (5.5 x 2.5 mm)
Polarity
positive,
Housing color black
Dimensions (LxWxH) 82 x 52 x 36 mm
Weight 133 g
Cable length 1.8 m
Protection class
Protection level
II
IP20
3 Intended use
We do not permit using the device in other ways like described in
chapter "Description and Function" or in the "Safety Instructions".
Use the product only in dry interior rooms. Not attending to these
regulations and safety instructions might cause fatal accidents, injuries, and
damages to persons and property.
IP20: This product is protected against medium sized foreign objects, but not
against water ingress.
4 Preparation
1. Compare the specifications of product, power supply and peripherals.
These must be identical.
2. Check the scope of delivery for completeness and integrity.
5 Connection and operation
CAUTION!! Risk of injury from tripping and falling
• Lay the cable securely.
1. Connect the o󰀩ce equipment to the power supply.
2. Plug the power supply unit into a free and easily accessible socket.
The operating LED (2) lights up as soon as voltage is present on the
input side.
There are no controls to operate during operation.
3. Disconnect the plug connections after use.
6 Maintenance, Care, Storage and Transportation
The product is maintenance-free.
NOTICE! Material damage
• Only use a dry and soft cloth for cleaning.
• Do not use detergents or chemicals.
• Store the product out the reach of children and in a dry and dust-protec-
ted ambience when not in use.
• Store cool and dry.
• Keep and use the original packaging for transport.
7 Disposal instructions
7.1 Product
According to the European WEEE directive, electrical and electronic
equipment must not be disposed with consumers waste. Its compo-
nents must be recycled or disposed apart from each other. Otherwise
contaminative and hazardous substances can damage the health and
pollute the environment.
As a consumer, you are committed by law to dispose electrical and electronic
devices to the producer, the dealer, or public collecting points at the end of the
devices lifetime for free. Particulars are regulated in national right. The symbol
on the product, in the user manual, or at the packaging alludes to these terms.
With this kind of waste separation, application, and waste disposal of used
devices you achieve an important share to environmental protection.
WEEE No: 82898622
7.2 Packaging
Packaging can be disposed of free of charge at the suitable collection
points – paper belongs in paper bins, plastics belong in yellow sacks
and glass belongs in used glass bins.
DE4535302615620
8 EU Declaration of conformity
With the CE sign Goobay®, a registered trademark of the Wentronic
GmbH ensures, that the product is conformed to the basic European
standards and directives.
9 Symbols used
For indoor use only IEC 60417- 5957
Alternating current IEC 60417- 5032
Direct current IEC 60417- 5031
Recycling
ISO 7001 - PI PF
066
Polarity of d.c. power connector IEC 60417- 5926
Class II equipment IEC 60417- 5172
- 2 -
Subject to change without notice.
User ManualEN
