SPLAYBOLT
MOUNTINGHOLE
OPENFACEPLAT
FIXEDARM
SPREIZBOLZEN
FIXIERARM
BEFESTIGUNGSLOCH
KAPPE ENTFERNEN
SPREIZBOLZEN
FIXIERARM
BEFESTIGUNGS-
LOCH
KAPPE ÖFFNEN
95173:bypushingupwards.
96006: no cover cap included
Choose the installation place away from street lighting, plants or
air conditioning vents. Avoid direct sun insulation eg. neer
windows.
6. Attachthecovercaptoawallorceilinginaheight,menti-
 onedinthespecications-withtheinstallationmaterial.At
 this,attendtothecablelocationanditsalignment.Also
 attendtothedetectionareaandmax.distance.

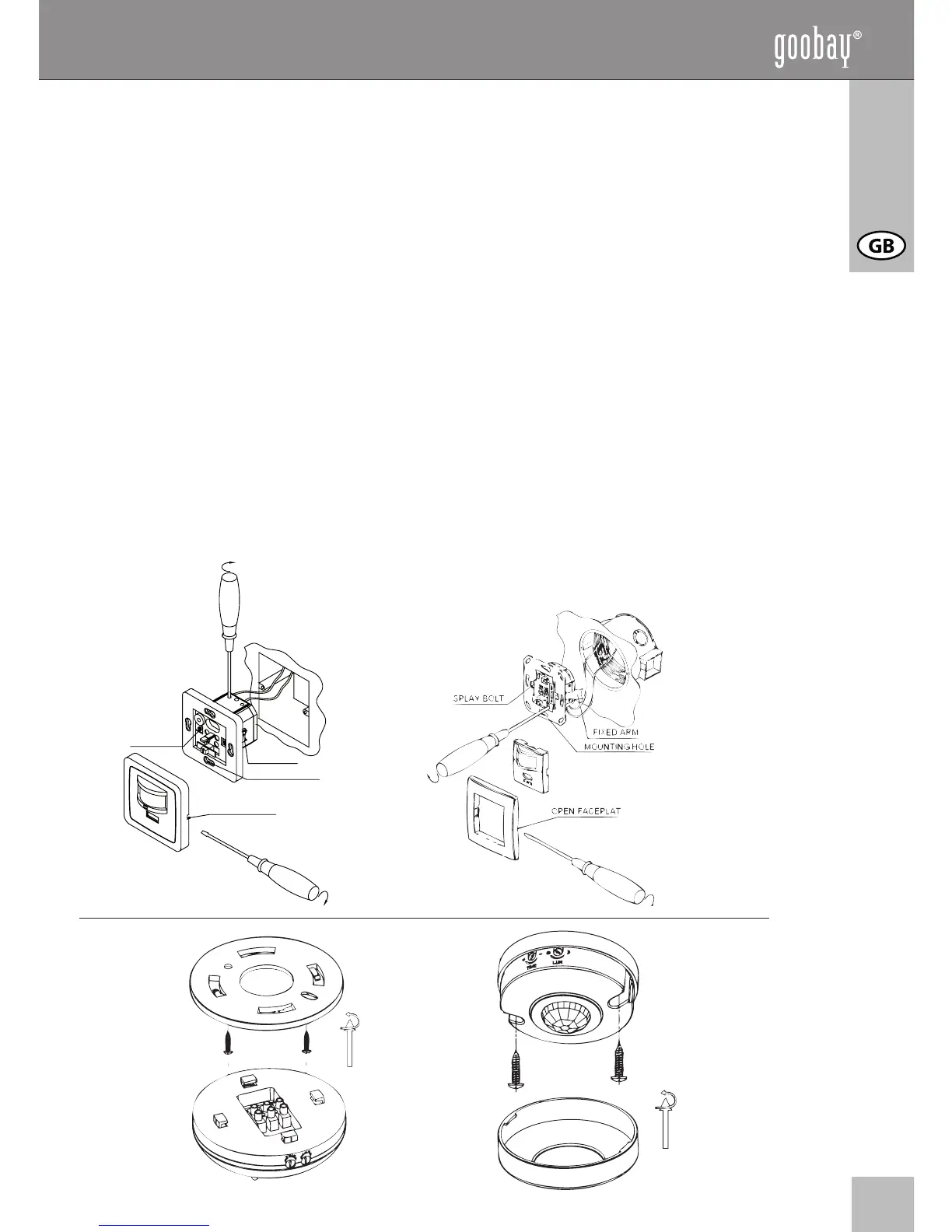

7. Installthemotionsensorlikeshown:
Installing
95171 96005
95172 96007
