Goodman GSX13 - Physical and Optional Information; Unit Dimensions; Available Accessories

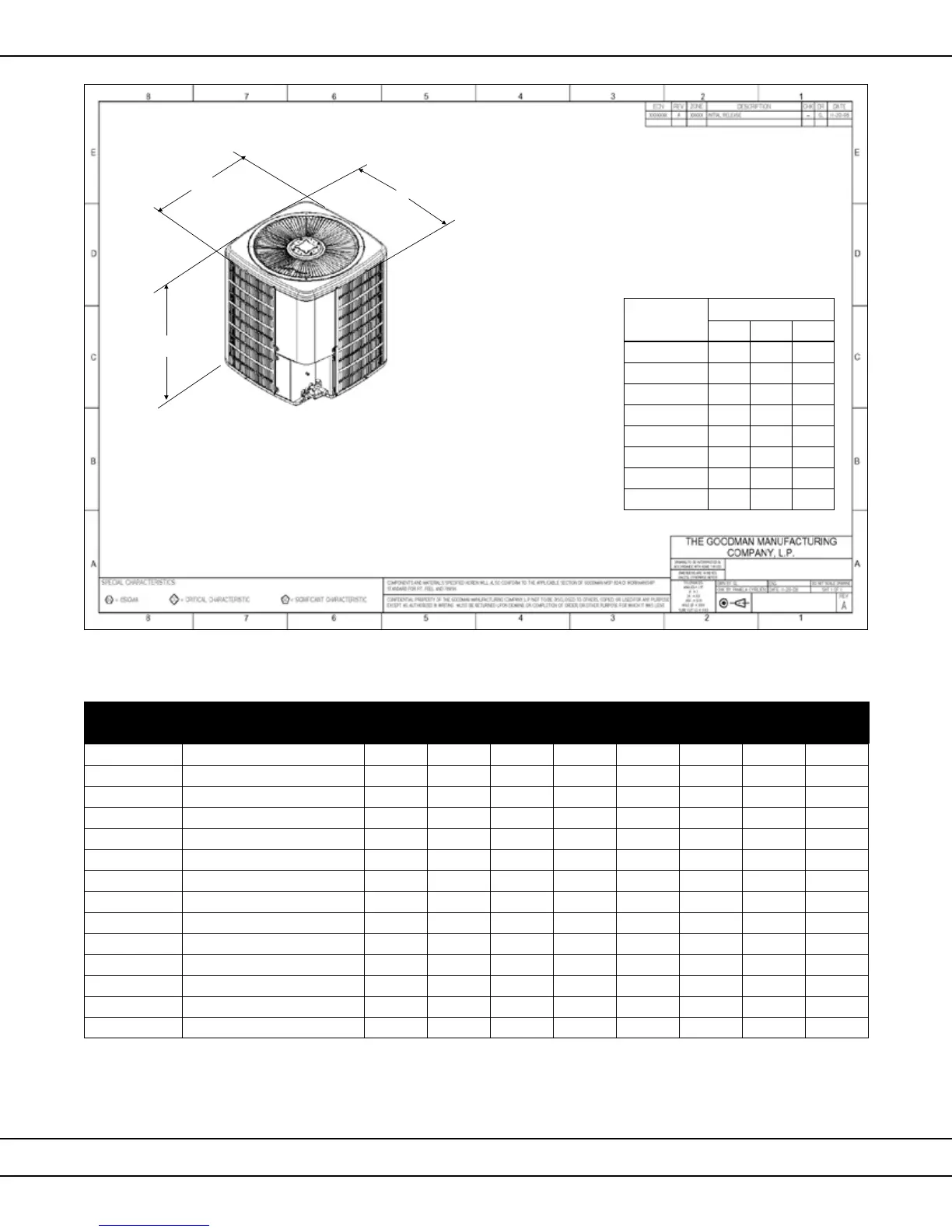

Dimensions
48 www.goodmanmfg.com SS-GSX13
SS-GSX13 www.goodmanmfg.com PB
Goodman Manufacturing Company, L.P., reserves the right to disconnue, or change at any me, specicaons or designs without
noce or without incurring obligaons. © 2015 Goodman Manufacturing Company, L.P. • Houston, Texas • Printed in the USA.
Accessories
Model # Description
GSX13
018E*
GSX13
024E*
GSX13
030B*
GSX13
036E*
EGSX13
042B*
GSX13
048B*
GSX13
060B*
GSX13
061A*
ABK-20 Anchor Bracket Kit ^ X X X X X X X
ABK-21 Anchor Bracket Kit ^ X
ASC-01 An-Short Cycle Kit X X X X X X X X
CSR-U-1 Hard-start Kit X X X X
CSR-U-2 Hard-start Kit X X X X
CSR-U-3 Hard-start Kit X X X
FSK01A¹ Freeze Protecon Kit X X X X X X X X
LSK02A² Liquid Line Solenoid Kit X X X X X X X X
LAKT01A Low-Ambient Kit X X X X X X X X
0130R00000S Low-Pressure Switch Kit X X X X X X X X
TX2N4² TXV Kit X
TX2N4A² TXV Kit X
TX3N4² TXV Kit X X X
TX5N4² TXV Kit X X X X
^
Contains 20 brackets; four brackets needed to anchor unit to pad
¹ Installed on indoor coil
² Field-installed, non-bleed, expansion valve kit: Condensing units and heat pumps with reciprocang compressors require the use of start-assist components when used in
conjuncon with an indoor coil using a non-bleed thermal expansion valve refrigerant metering device or liquid line solenoid kit.
D
H
W
Model
Dimensions
W” D” H”
GSX130181E* 23 23 25¾
GSX130241E* 26 26 27½
GSX130301B* 26 26 27½
GSX130361E* 26 26 27½
GSX130421B* 29 29 36¼
GSX130481B* 29 29 36¼
GSX130601B* 29 29 40
GSX130611A* 35½ 35½ 38¼
GSX13
