3.3 SEC1000 Installation
3.3.1 Selecting the installation location
The following must be considered when selecting the best location for an SEC1000
• The mount and installation method must be appropriate for the SEC1000’s weight and dimensions.
• Install on a sturdy surface
• The installation location must be well ventilated
• SEC1000 can be placed horizontally or installed vertically

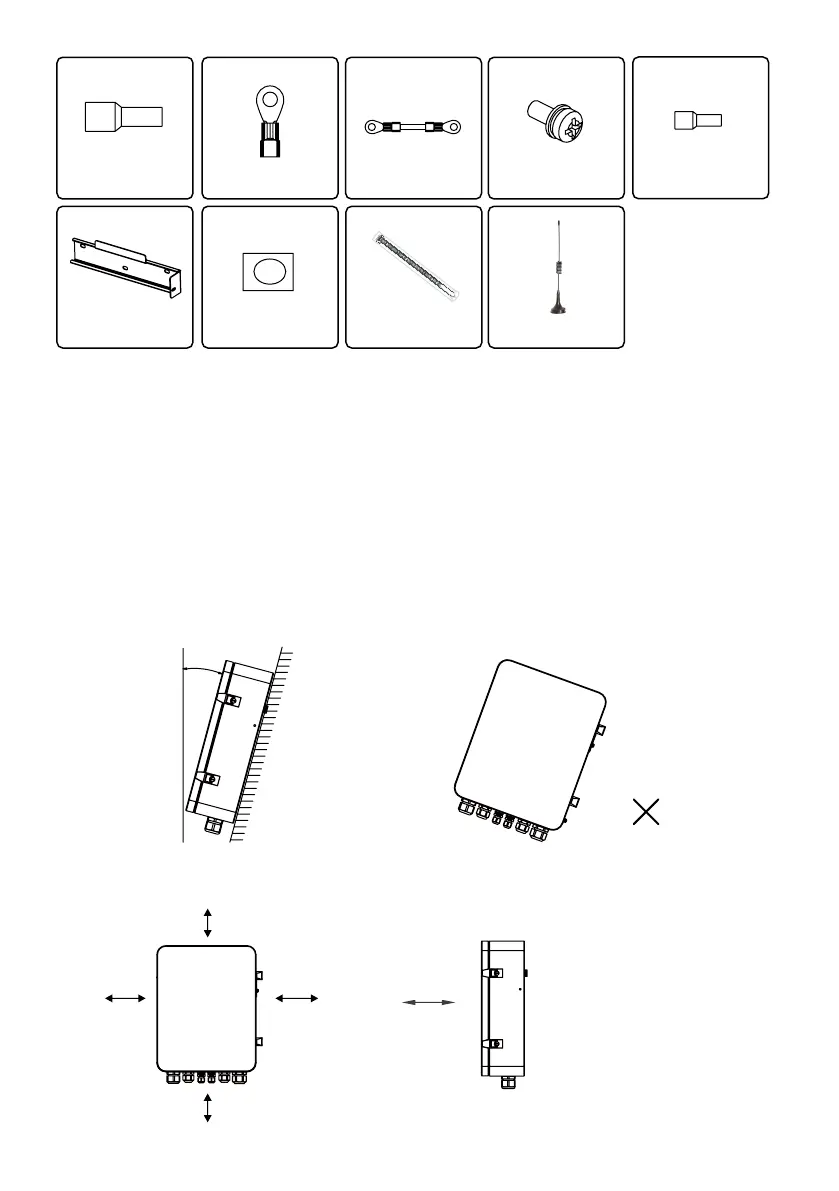

• The SEC1000 must be installed vertical or with a backward tilt less 15°.No sidwways tilt is allowed.The
connection area must point downwards.Refer to Figure 3.3.1-1.
• To allow dissipation of heat,and for convenience of dismantling,clearances around the SEC1000 must be no
less than the values, refer to gure3.3.1-2.
≤15°
Tubular terminal×6 O type terminal×8 Short wire×3 Screw×1 Tubular terminal×8
Ribbon×5 Fireproong mud×1 Back hang×1
Figure3.3.1-1
≥500mm
≥500mm
Figure3.3.1-2
Upward----------200mm
Downward-------500mm
Front--------------500mm
Both sides-------200mm
≥200mm
≥200mm
≥200mm
Antenna[1]×1
[1]The antenna is only for equipment with GPRS.
