Goodwe SEC1000 User Manual

04
3.3.2 Mounting Procedure

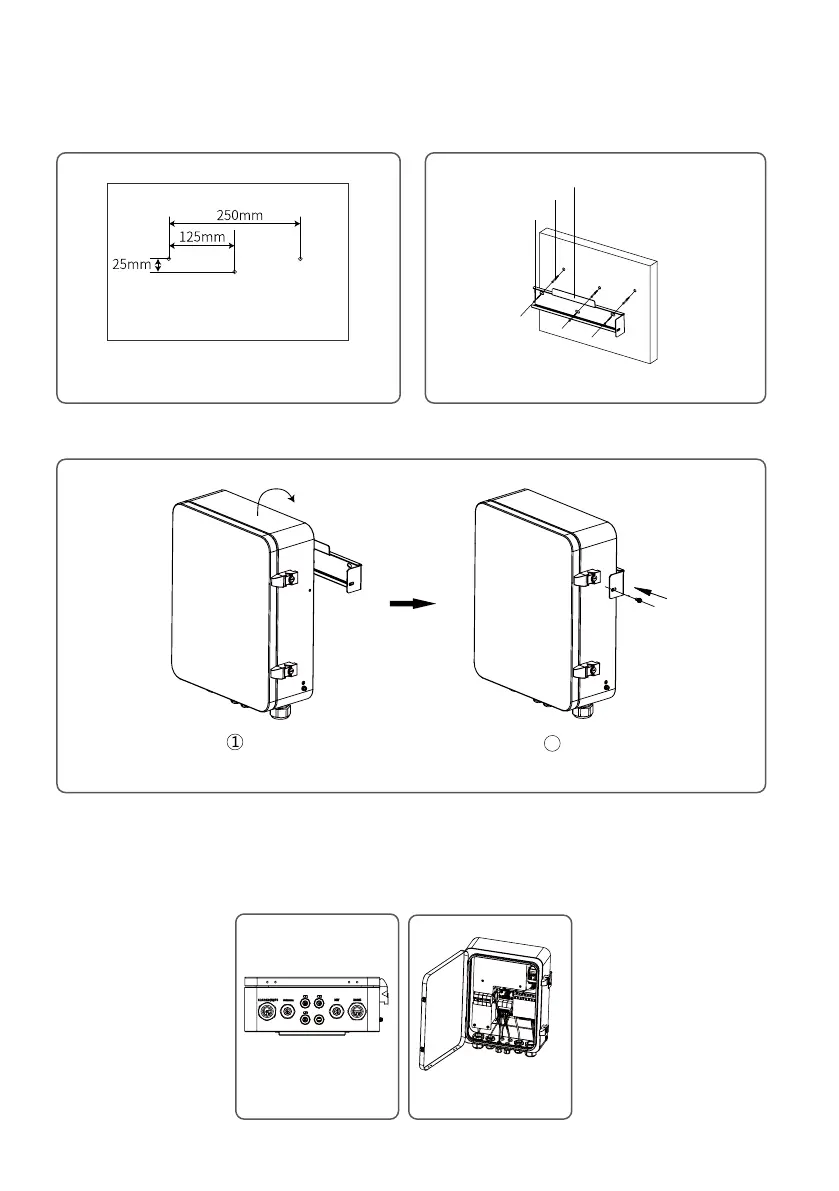

Figure3.3.2-1
Expansion screw tube
Back hang
Tapping screw
Figure3.3.2-2
Figure3.3.2-3
Hole size
(1)Drill holes on the wall,8mm in diameter and 45mm deep;Refer to Figure 3.3.2-1
(2)Fix the wall mounting bracket on the wall with expansion bolts in accessory bag,refer to Figure 3.3.3-2
(3)Place SEC1000 on the wall-mounted bracket as illustrated in gure 3.3.2-3
2
Figure 3.3.2-4 Figure 3.3.2-5
1. SEC1000 can be placed horizontally to work, as shown in the gure 3.3.2-4.
2. SEC1000 should be placed in a xed place indoors as shown in the gure3.3.2-5.
