05
①②③④⑤

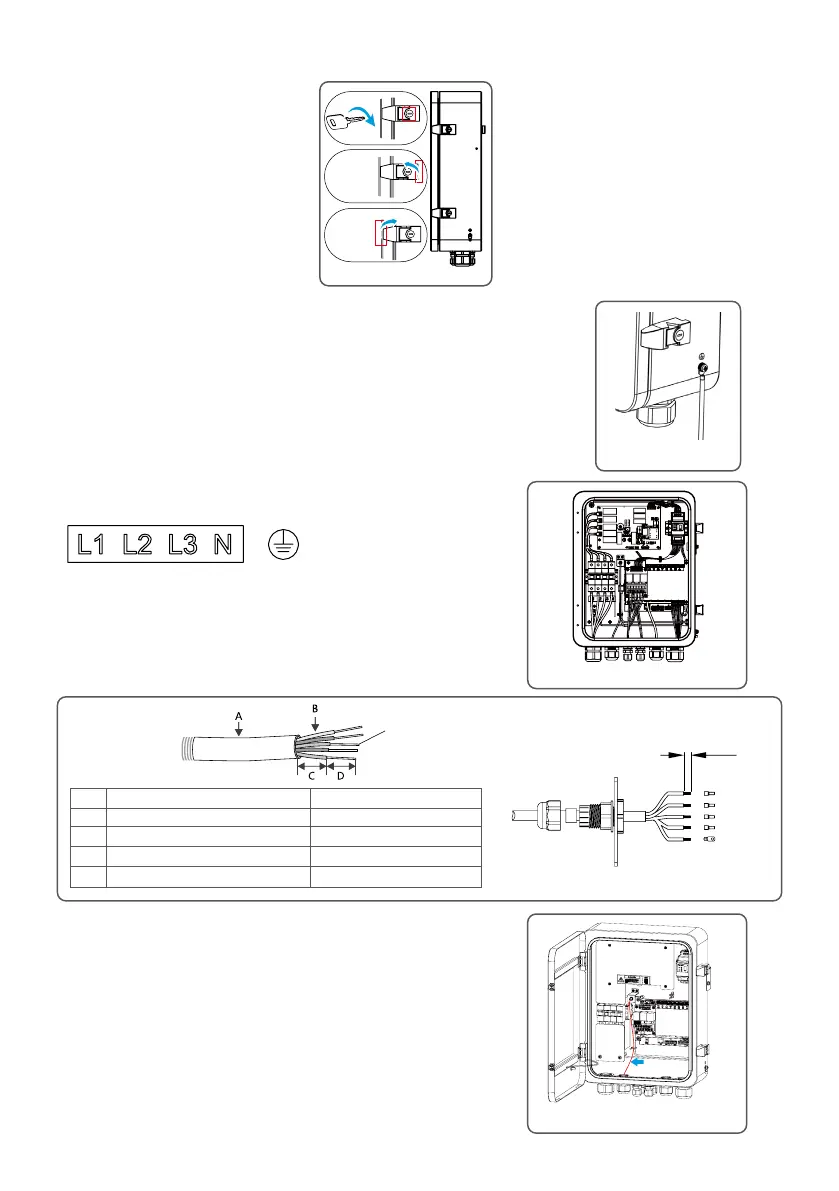

3.3.3 Port and wiring instructions
Voltage Input Port(L1\L2\L3\N\PE)
Multiple strands of soft copper wire
Use wire crimper to press
10~12mm
Input phase voltage range: AC60V-AC280V.
Input line voltage range: AC100V-AC480V.
AC Frequency: 50/60Hz.
Sequence of the cables: PE, L1, L2, L3, N.
Specications of the AC cable:
L1
L2
L3
(N)
PE
NO Description Content
A Wire Diameter No more than 25 mm
B Cross Sectional Area of Copper Wire R ecommend: AWG11-AWG13
C Wire Length About 45 mm
D Length of Bare Copper Wire About 12mm(10mm for PE)
Figure 3.3.3-2
Output port of the GPRS antenna
Connect the antenna to the port when installing the GPRS version
SEC1000.
(As shown in gure 3.3.3-2):
Figure 3.3.2-6
1
Open the door of SEC1000 as shown in Figure 3.3.2-6.
The PE cable shall be connected rst when install the equipment and be
disconnected last when remove the equipment.
Grounding Diagram
