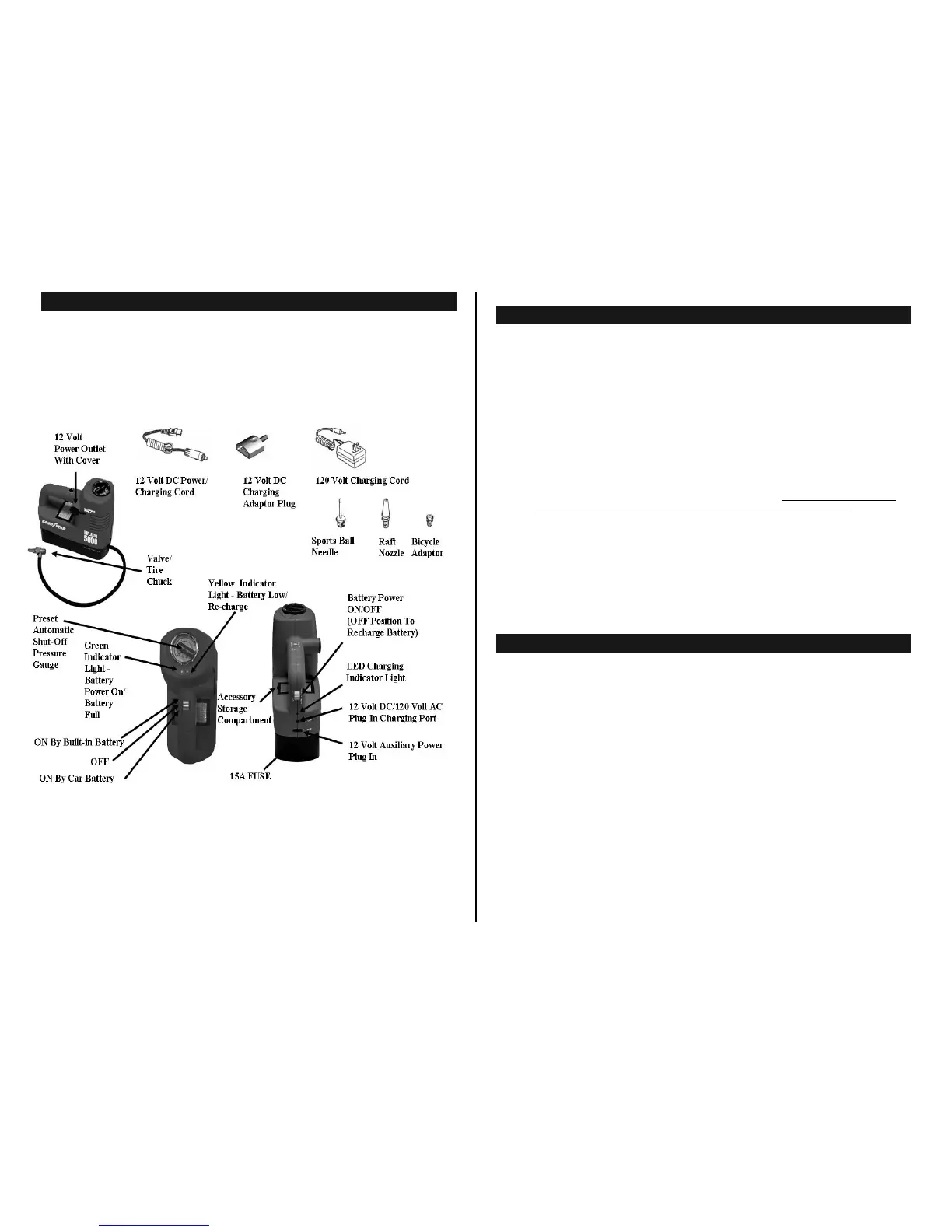

PARTS DIAGRAM DESCRIPTION
5
IMPORTANT OPERATING POINTS
• Your Inflator is designed to inflate car tires, bike tires, sports equipment, air
mattresses, beach toys and other inflatable items.
• The Inflator is also designed to run 12 Volt accessories off the 12 Volt
Rechargeable Battery that is built into the Inflator. These accessories, such
as cell phones, PDA’s, laptop computers, etc., can plug directly into the12 V
outlet located on the side of the Inflator.
• Note: This power unit is intended to be correctly orientated in a vertical
or floor mount position.
• The AC Charging Adaptor is to be used when charging your Inflator off 120
Volt AC household current. The 12 Volt DC Power/Charging Cord and 12 Volt
DC Charging Adaptor Plug is to be used when charging your Inflator using
your 12 Volt vehicle power outlet (cigarette lighter)
. Your Inflator may not be
fully charged at time of purchase. Charging time is 11 to 12 hours.
• An LED charging light is located on the back side of the handle. This will
illuminate when the Inflator is charging. This light will stay on as long as the
Inflator is plugged in and charging.
• If you desire, you can run your Inflator directly off your vehicle’s 12 V power
outlet (cigarette lighter) using the provided power cord with the 12 Volt plug-in
on the end of the cord. When operating in this fashion the current from your
12 Volt vehicle cigarette lighter bypasses the Inflator’s 12 Volt battery, and
therefore, runs directly off the vehicle’s power.
ABOUT THE BATTERY/CHARGING
Your Inflator’s internal battery is re-charged via 120 Volt AC or 12 Volt DC current.
Re-charge using only the provided charging cords. Do not use any other charging
apparatus.
1. For 12 Volt/120 Volt AC charging: The 12 Volt/120 Volt AC Plug-in Charging
Port to recharge your unit’s battery is located on the backside of the unit’s handle
directly above the two prongs and below the LED charging light. Plug one end of
the 120 Volt AC Charging Cord into the Plug-in Charging Port and plug the other
end into your normal 120 Volt AC household outlet.
2. For 12 Volt DC Charging, connect the 12 Volt Charging Adaptor Plug to the 12
Volt DC Power/Charging Cord. Connect one end of the Charging Cord into the
Plug-in Charging Port and the other end into your 12 Volt vehicle cigarette lighter
plug. The green LED light will shine to signify charging is in progress. Note: 120
Volt AC Charging time is approximately 11 to 13 hours when the battery is almost
exhausted. 12 Volt DC Charging time is approximately 3 to 5 hours when the
battery is almost exhausted.
3. Do not open the battery inside the Inflator. The battery is designed to
permanently remain inside the Inflator.
