STEP 6 - HOIST TROLLEY INSTALLATION (CONTINUED)
6.8 Remove wheels from festoon end of trolley
(as needed). Keep snap rings.
6.9 Assemble the tow arm weldment on the
festooning end of the hoist trolley
(diagram 6E).
6.10 Re-assemble wheels and snap rings (as
needed).
6.11 After the hoist trolley has been installed,
loosen nuts on end of U-bolt enough to
thread cable/air hose between the two
legs of the U-bolt and festoon clamp plate.
Secure cable/air hose by tightening nuts
at the end of the U-bolt, forcing the
festooning clamp plate snug against the
cable/air hose.
6.12 Roll hoist trolley into open end of track on bridge/monorail.
6.13 Install end stop on the festooning end of bridge/monorail (diagram 3C, on page 6).
6.14 If you do not have festooning, go to Step 9, on page 21.
If you do not have a festoon stack section, go to Step 8, on page 18.
Otherwise go to Step 7, on page 17.

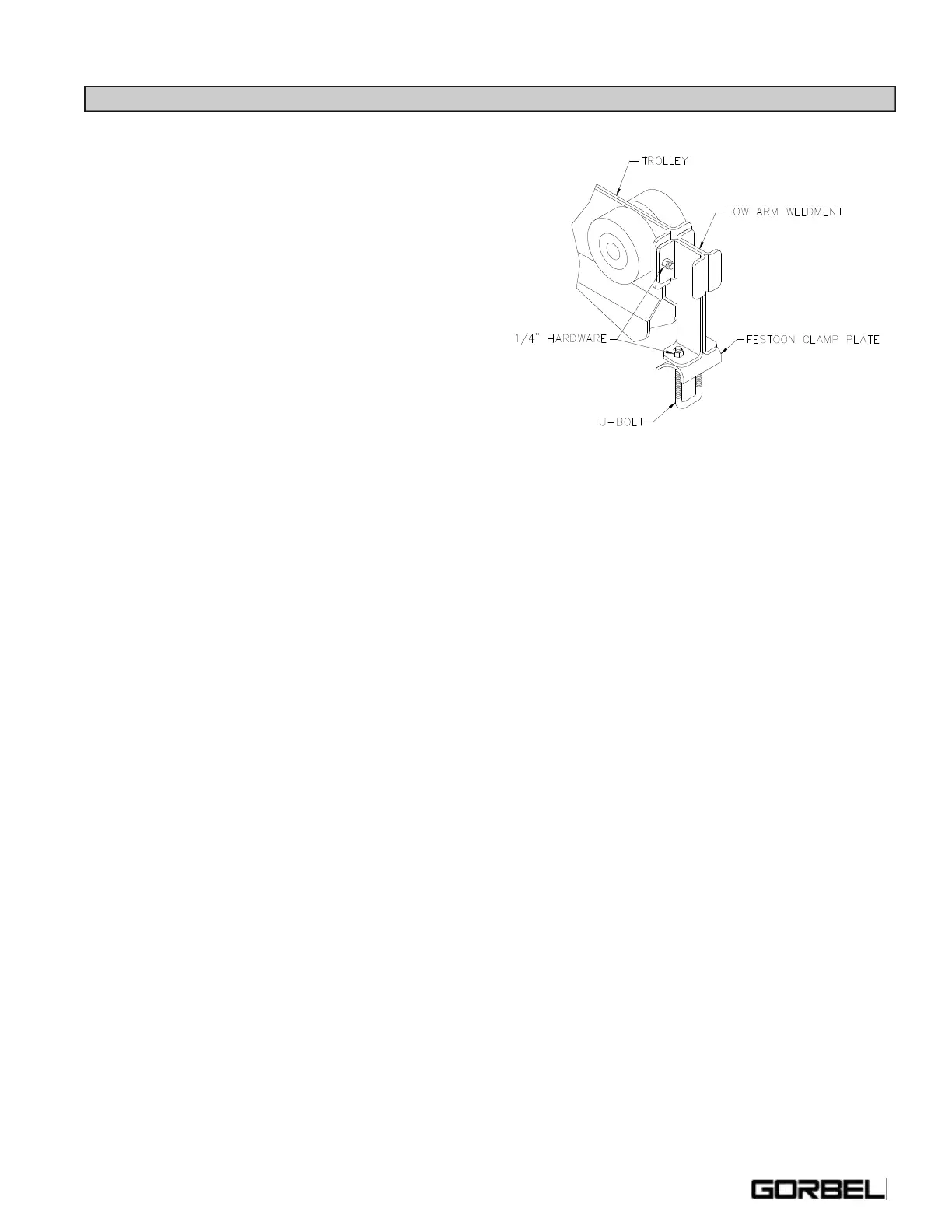

Diagram 6E. Installing tow arm on trolley.
