7. To use the Cable Tacker, position the cable/wire against the work surface to which the
cable/wire is to be anchored. Place the Nose of the Cable Tacker over the cable/wire,
making sure the cable/wire is
between
the two nylon posts of the Staple (24, 25). Hold
the Cable Tacker firmly with both hands and squeeze the tool’s Handle (15). Continue
this procedure and fire additional Staples until the desired length of the cable/wire is
anchored to the work surface.

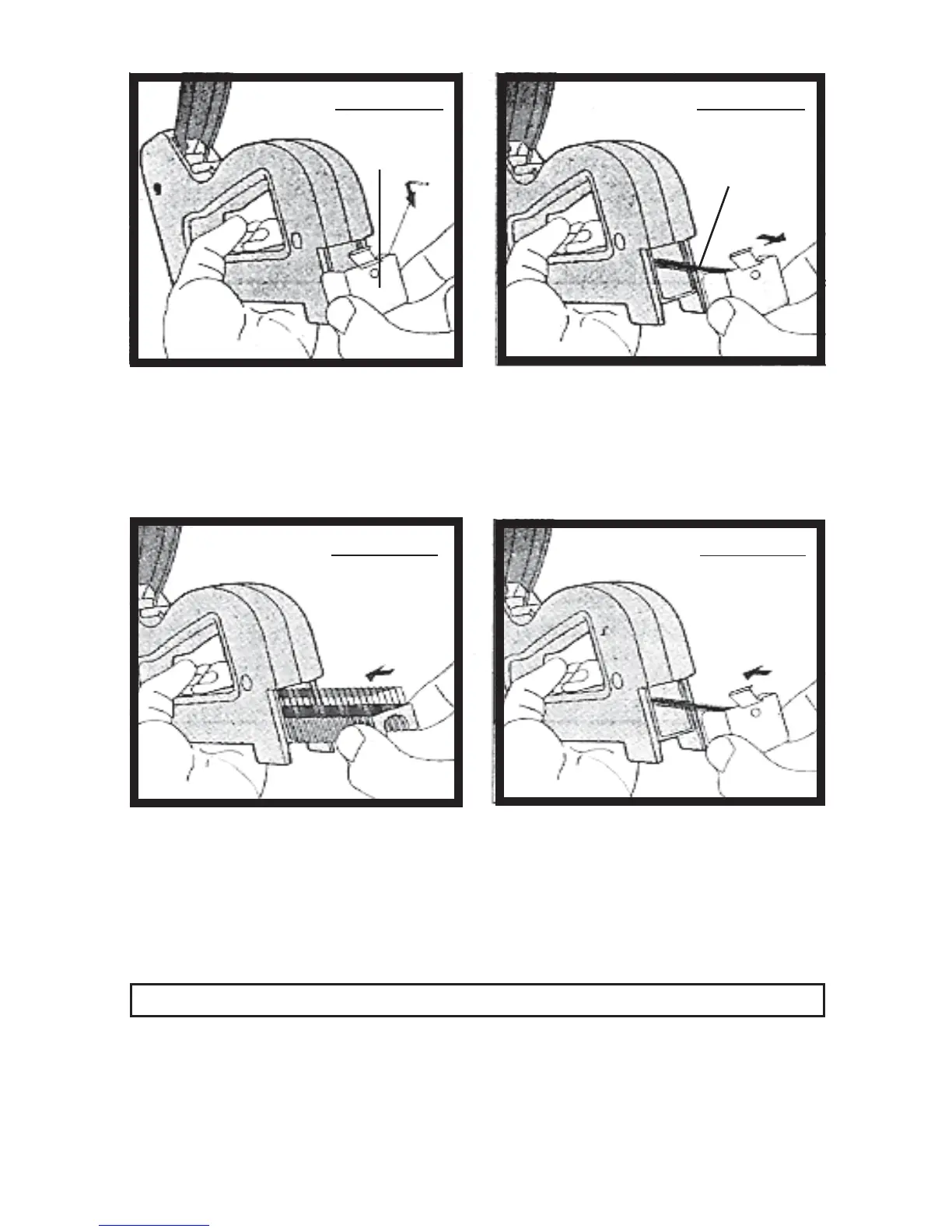

5. Load a strip of Staples (24, 25) into the tunnel of the Cable Tacker.
(See Figure E.)
6. Slide in the Staple Feeder assembly, and push the Staple Feeder assembly upward to
its locked position. (See Figure F.)
STAPLE
FEEDER
ASSEMBLY
FIGURE D
BACK PLATE
(18*)
FIGURE C
