Gordon 93782 - Parts List and Assembly Diagram; Component Identification

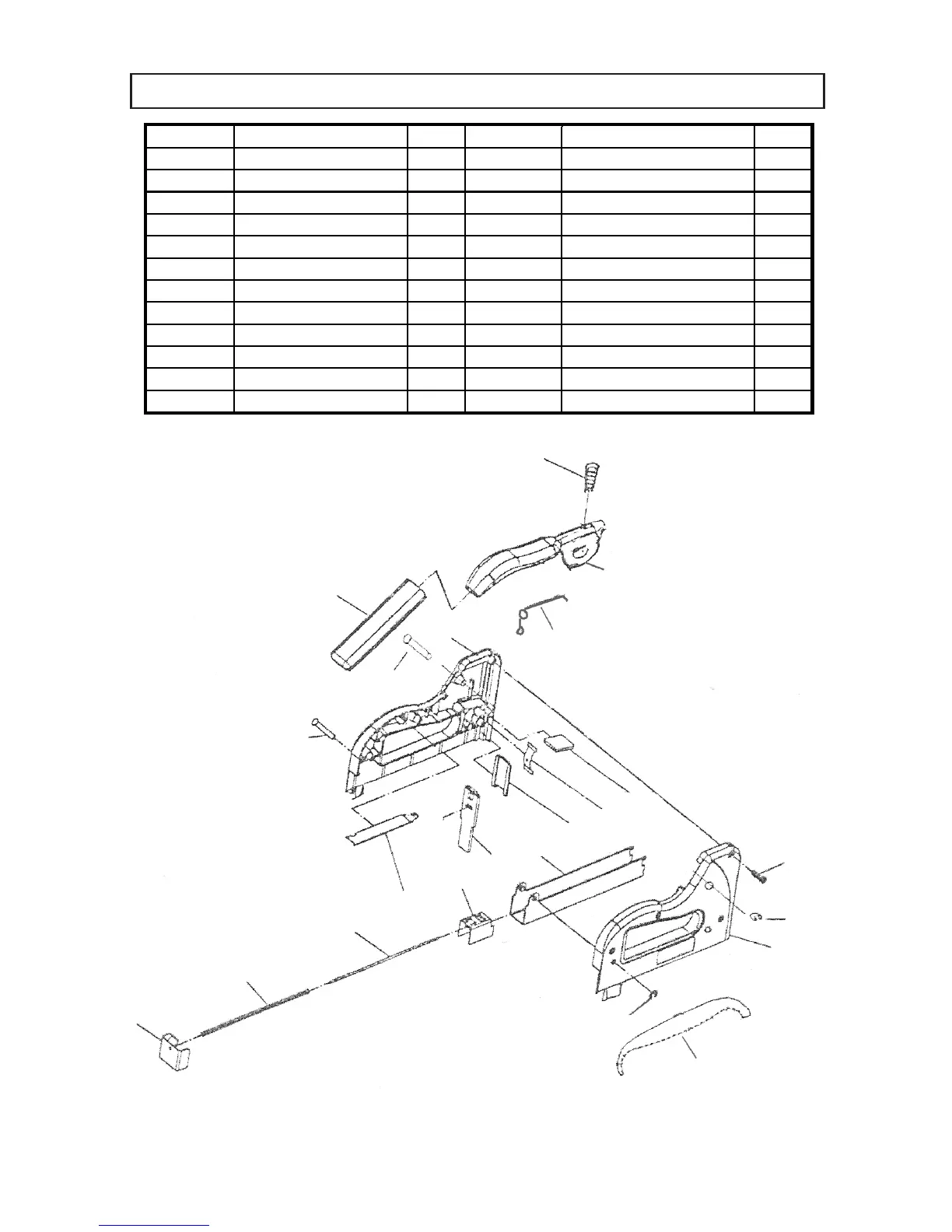

PARTS LIST AND ASSEMBLY DIAGRAM
Part # Description Qty. Part # Description Qty.
1 Body (Left) 1 14 Rivet 1
2 Body (Right) 1 15 Handle 1
3 Impact Plate 1 16 Handle Rubber 1
4* Staple Housing 1 17 Handle Spring 1
5 Staple Slot 1 18* Back Plate 1
8 Spring Plate 1 19 Plastic Immobile 1
9* Staple Bar 1 20 Immobile Plate 1
10* Staple Spring 1 21 E-Ring 1
11 Handle Spring 1 22 E-Ring 1
12 Pad (1405R) 1 23 Screw 5
12A Pad (1407R) 1 24 1407R Staple 50
13 Staple Slot Rivet 1 25 1405R Staple 50
NOTE: Parts #4, #9, #10, and #18 are available only as a complete assembly.
NOTE:
Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
1
2
3
4*
5
8
9*
10*
18*
11
12
12A
20
16
13
14
17
15
23
21
19
22
24: 1407R Staples not shown.
25: 1405R Staples not shown.
SKU 93782 For technical questions, please call 1-800-444-3353 PAGE 5
