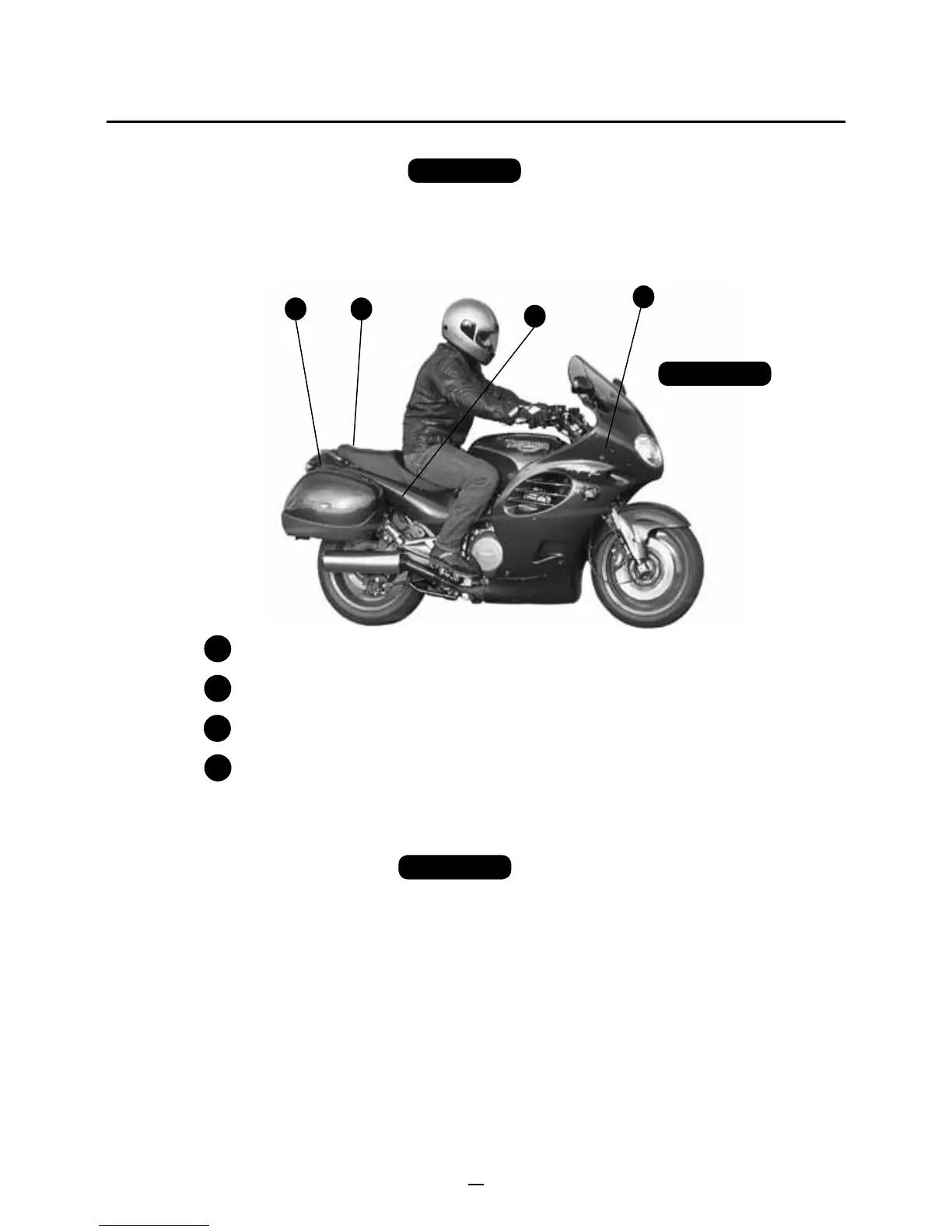

Alarm Unit Installation Diagram 1
Find a place on the motorcycle where you can mount the alarm unit
using either hook and loop strips, wire ties or the mounting bracket.
The most common areas for alarm installation are:
WITHIN TAIL SECTION
UNDER SEAT
BEHIND SIDE COVERS
WITHIN FAIRING
For optimum sound output, place alarm unit where it is not completely enclosed.
Wiring the Alarm Unit Diagram 2 (See page 5)
1. RED WIRE - Alarm Unit Power (+ Positive). Attach the red wire directly to
the positive (+) terminal of the battery.
2. BLACK WIRE - Alarm Unit Ground ( – Negative). Attach the black ground
wire to the negative (–) terminal of the battery.
Antenna Wire
BLUE WIRE -
Receiver antenna wire for the remote control transmitter. The place-
ment of the antenna wire is important for good reception. Make sure that the wire is
extended out straight and not wrapped around anything (hose, frame, etc.).
1
2
3
4
4
1
2
3
4
Diagram 1
Section 1
Gorilla Cycle Alarm - Part # 8007 / 8017
