REINFORCING STORAGE RACK

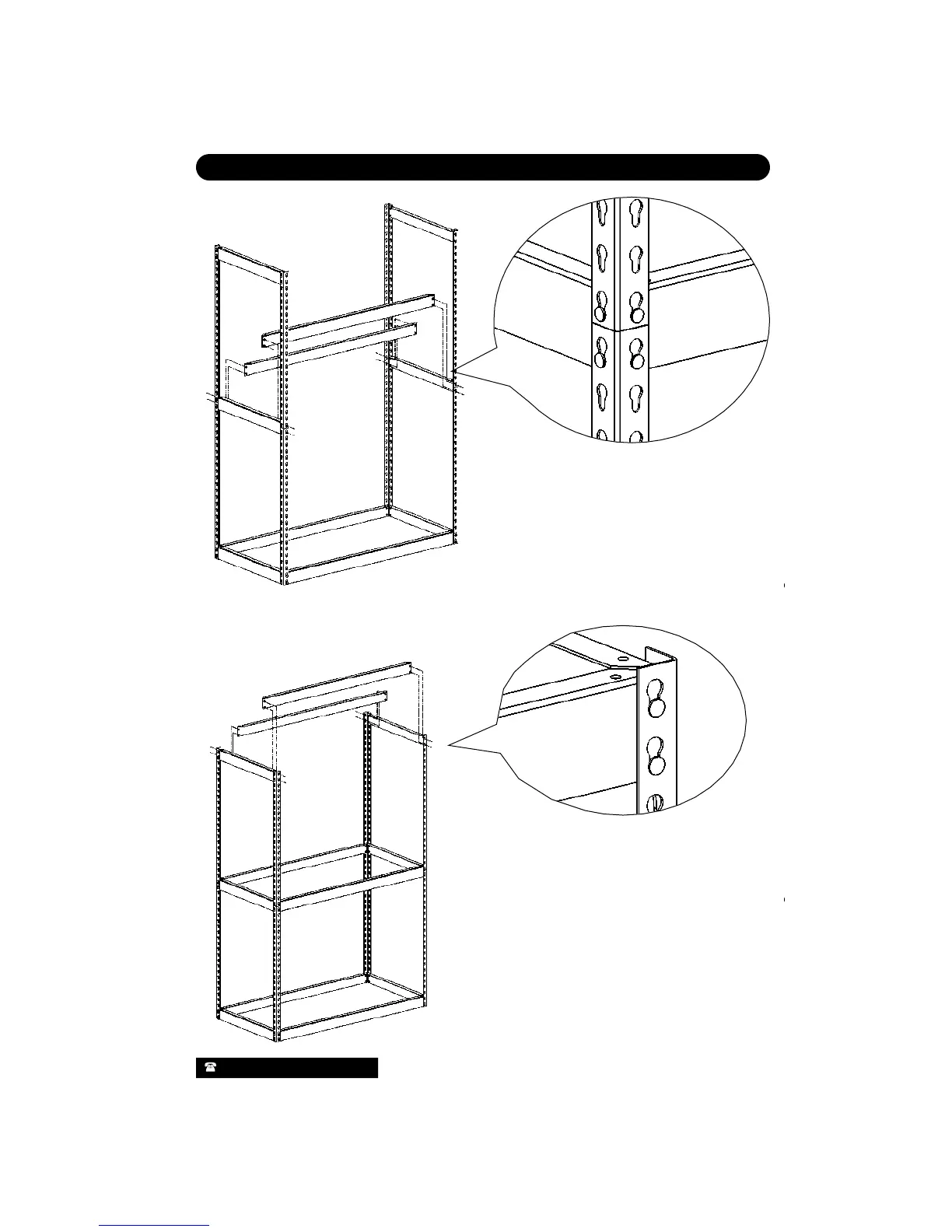

Add two Long Double Rivet Beams to mid section
as shown. Be sure to use the bottom key hole of
the top assembly angle post and top key hole of
the bottom assembly. Follow the proper key-
holes as shown in the detail illustration.
Be sure to have all rivets in the keyholes before
hitting the beam.
Step
5- Reinforcing
Mid Section
Step 6- Reinforcing Top Section
Add two additional Long Double Ri
vet Beam to
top two key holes of the angle post as shown.
Be sure to have all rivets in the keyholes before
hitting the beam.
