1-800-637-9508 page 3
PRIMARY END ASSEMBLY WORK BENCH

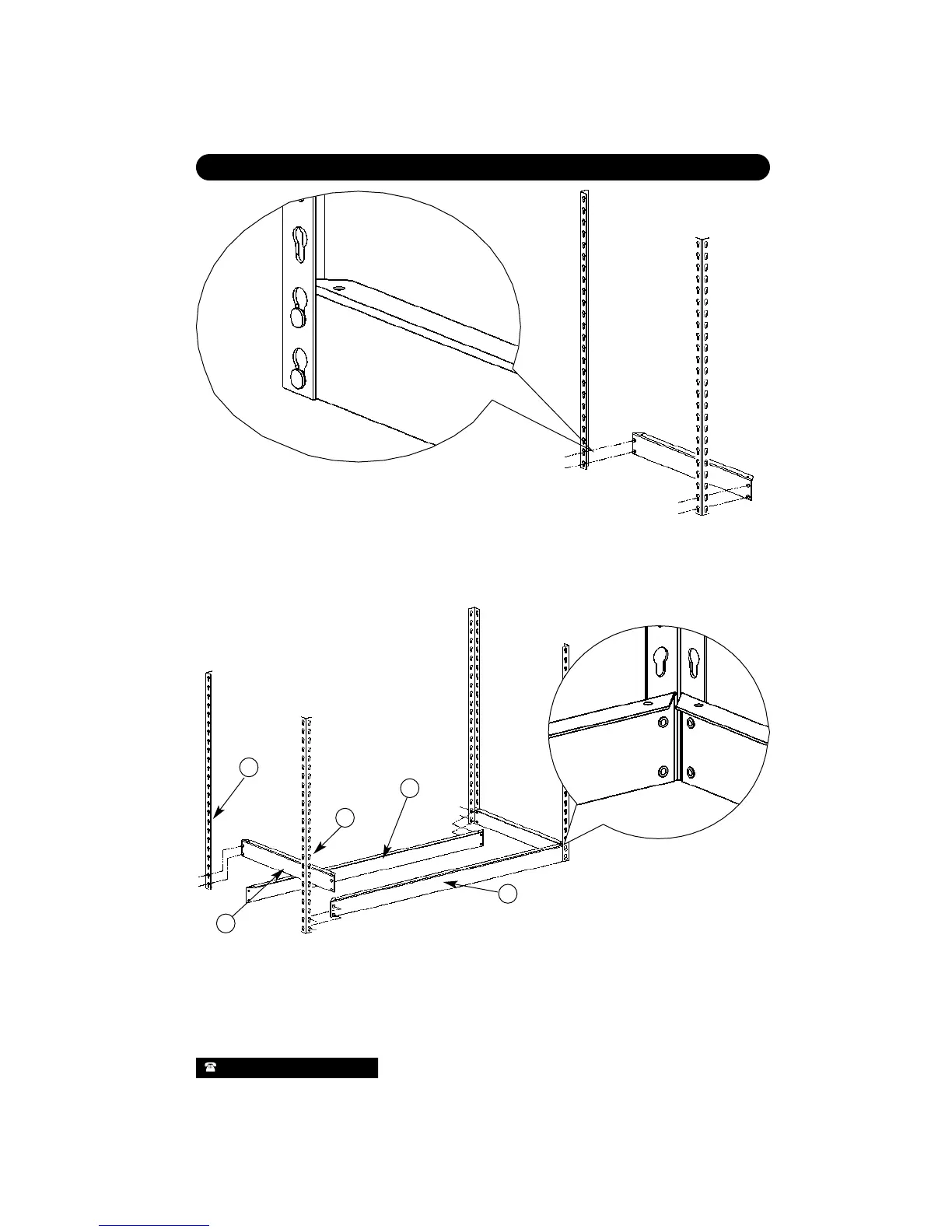

Step 1 - End Assembly
Step
2 - Primary End and 36Ó Double Rivet Beams
Start
bottom of frame assembly by joining an Short Double Rivet Beam (Item 3)
into the two bottom keyholes of a 36" Angle Post (Item 1). Be sure that the
flange is up and drive the rivets to the bottom of the key hole by hitting the
beam with a rubber mallet.
Tip: Hit the beam close to joints locking the pieces together.
Repeat to add the second 36" Angle Post creating a Bottom End.
1
st
4
th
3
rd
2
nd
5
th
Assemble a Long Double Rivet Beam (Item 2) to the bottom key holes of the bottom end assembly
(refer to detail). Hit the beam with a rubber mallet to lock pieces together. Add the Angle Posts and
Short Double Rivet Beam and lock pieces together until complete. All beam flange must be up.
Follow the order 1
st
through 5
th
shown in the drawing to facilitate the assembly.
Note: Hit the beams near the joints to lock the pieces into place.
