TOP ASSEMBLY STORAGE RACK

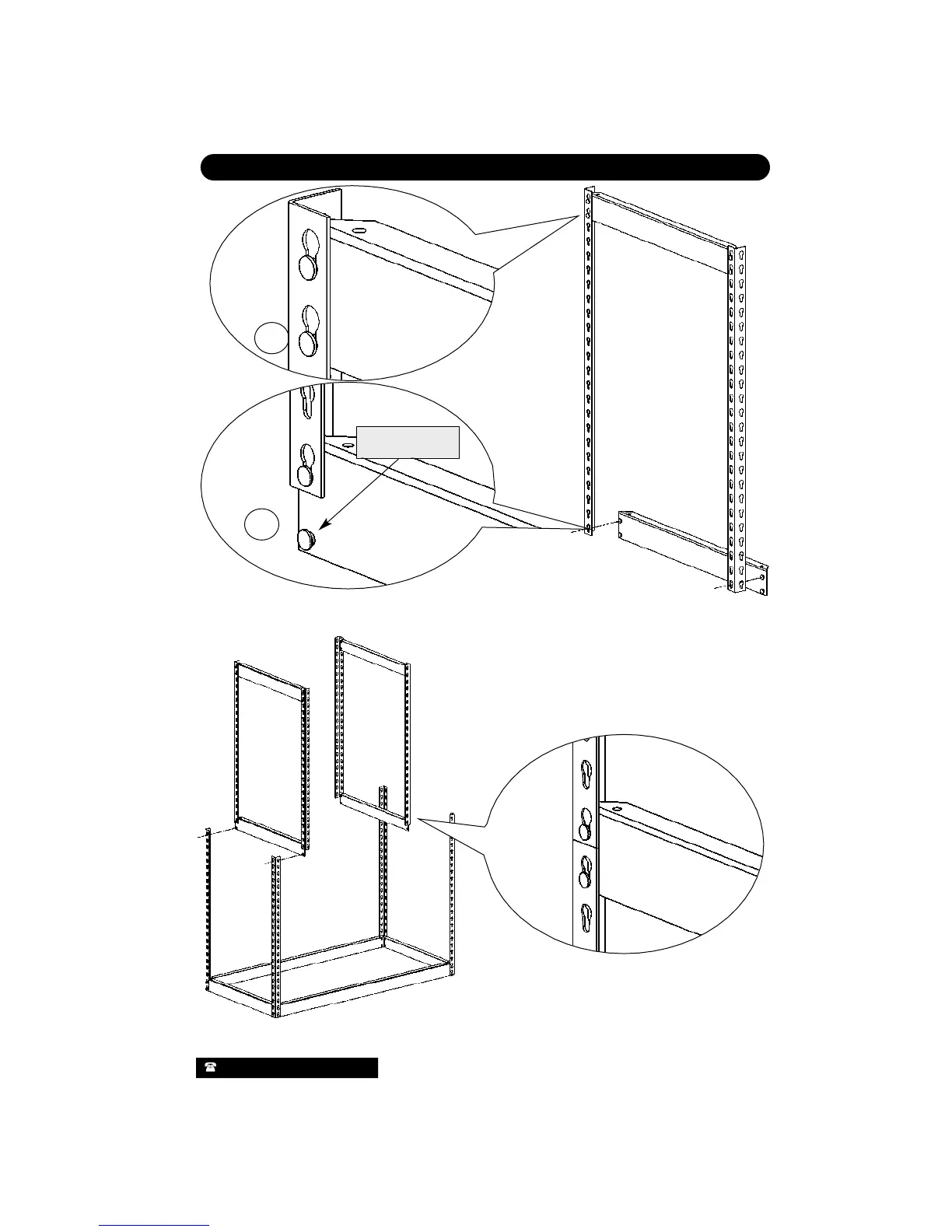

Start the top end assembly by joining an Short
Double Rivet Beam into the top keyholes of a 36"
Angle Post (detail A). Add the second 36" Angle
Post. Hit the beam close to joints to lock pieces
together. Add the Bottom Short Double Rivet Beam
(detail B) and lock pieces together. Only use the
top rivet, the bottom rivet will be used to join
the top end to the bottom assembly.
Repeat Step for the opposite top end.
Join the top end to the bottom assembly angle post.
Insert the open rivets to the top keyhole of the angle
post, refer to the detail for proper placement. Insert
both rivets into the posts before hitting joints.
Repeat Step for the opposite end.
Note: Angle posts do not overlap.
A
B
DO NOT USE
BOTTOM RIVET
Step 3 - Top End Assembly
Step
4 - Joining Assemblies
1-800-637-9508 page 8
