GPX TVR950 - Waveforms

3

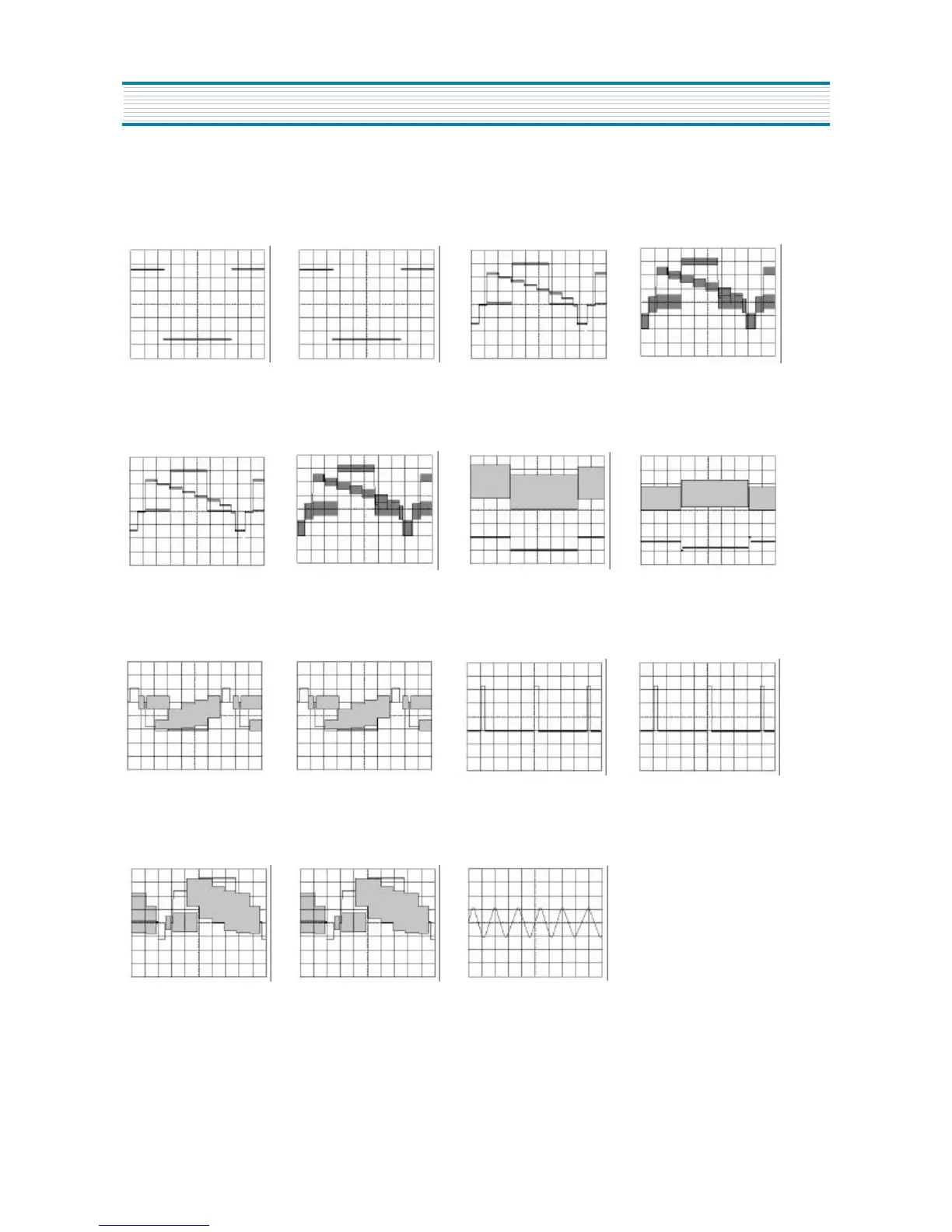

WAVEFORMS
1. LUMA / CHROMA WAVEFORMS
(IC301-57) 5Vp-p
1V/2msec/cm
REC
(IC301-57)5Vp-p
1V/2msec/cm
PLAY
(IC301-20) 520mVp-p
200mV/5usec/cm
REC
(IC301-20) 520mVp-p
200mV/5usec/cm
PLAY
(IC301-22) 520mVp-p
100mV/5usec
REC
(IC301-22) 520mVp-p
100mV/5usec
PLAY
(IC301-14) 650mVp-p
200mV/2msec/cm
PLAY(SP) VIDEO SW TRIG
(IC301-14) 450mVp-p
200mV/2msec/cm
PLAY(SLP) VIDEO SW TRIG
(IC301-36) 300mVp-p
100mV/5usec/cm
REC
(IC301-36)300mVp-p
100mV/5usec/cm
PLAY
(IC301-25) 4.6Vp-p
2V/10usec/cm
REC/PLAY
(IC301-25) 4.6Vp-p
2V/10usec/cm
PICTURE SEARCH
(IC301-26) 2.2Vp-p
500mV/5usec/cm
REC
(IC301-26) 2.2Vp-p
500mV/5usec/cm
PLAY
(IC301-49) 450mVp-p
200mV/0.1usec/cm
1. 1.
2. 2.
3.3.
5.
7. 7. 8.
5. 6. 6.
4. 4.
