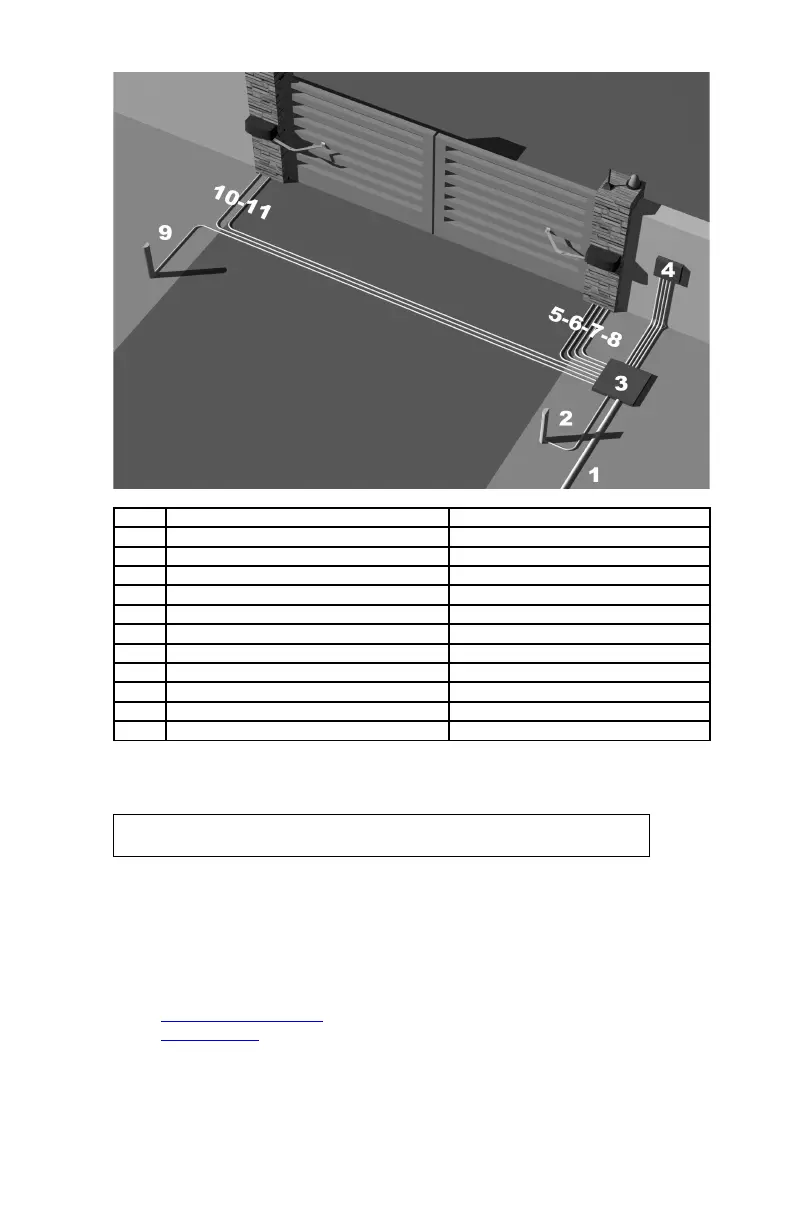

N° Description Cable
1 Alimentation line 220V 2x1,5 + T
2 TX Photocells 2x1
3 Well -
4 Control box -
5 RX Photocells 4x1
6 Key switch 2x1
7 Aerial / Flashing light RG59 / 2x1
8 Motor 220 / 12V 3x1,5 + T / 2x2,5
9 RX Photocells 2x1
10 Motor 220 / 12V 3x1,5 + T / 2x2,5
11 TX Photocells 2x1
EMERGENCY MANOEUVRE
Remove the cap on the carter, put in the unblocking key and turn
it left or right to hear the first “click”
