grabner ADVENTURE - AREA OF USAGE; TYPE SIGN; ASSEMBLY

19
AREA OF USAGE
 Leisure boat for lakes, rivers and
coastline waters
 White water boat up to category 4 - Way
through not good discernible -
reconnaissance often necessary. High
swells, strong currents and whirls.
ADVENTURE ECONOMY and SL up
to category 3 - with open passages - high
irregular waves, big swells, currents and
whirls.
 Motor boat up to max. 3 hp/2.2 kw –
just with outrigger!
 Sailboat with 6 m² sail area up to wind
force 4 Beaufort

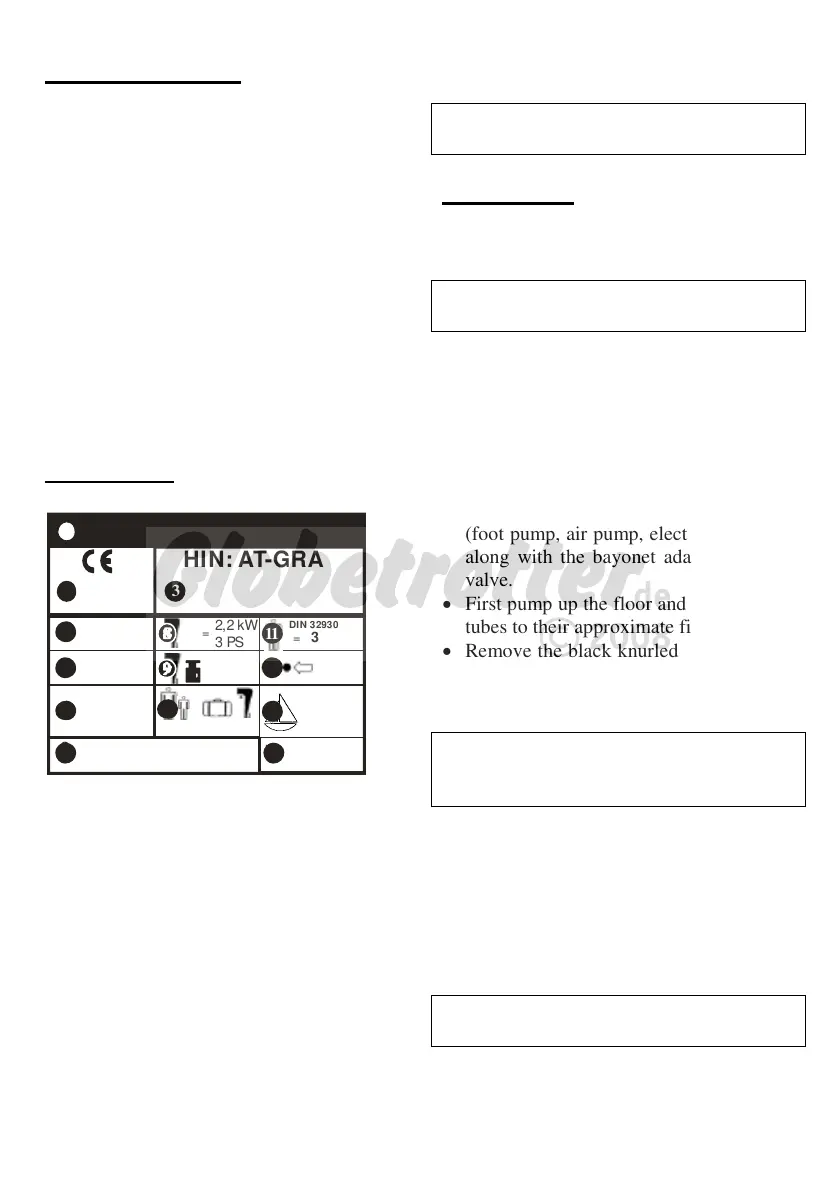

TYPE SIGN
HIN: AT-GRA
ADVENTURE
ISO Norm/Standard
Wildwasser
White Water
0.3 bar
4.3 psi
4
GRABNER GMBH Luftbootfabrik
A-3350 HAAG AUSTRIA EUROPA
17 kg
37 lbs
D
III
2,2 kW
3 PS
6 m
65 sqft
2
4 Beaufort
+
ISO 6185
Kategorie/Category
+
= 3
=
EU Richtlinie/Katego
EU guideline/catego
DIN 32930
DIN 32930
450 kg 990 lbs
=
=
=
3
10
11
13
12
14
7
4
1
5
2
6
1) Boat type
2) CE-declaration
3) Serial number
4) Norm
5) Norm - category
6) EU regulation category
7) Producer and production land
8) Permitted motor output
9) Maximal motor weight
10) Loading capacity (Persons +
luggage + motor) - acc. to DIN
32930
11) Permitted persons
12) Operational pressure
13) Permitted sails area
14) Permitted white water category
ATTENTION: It is not allowed to exceed
the permitted dates on the type sign!
ASSEMBLY
 Open the box and remove your boat
along with the seat boards
ATTENTION: Take care not to damage
the boat when cutting open the box!
 Check to see that all parts listed on the
parts list are present.
 Remove the packing film and unroll the
boat body.
 Close the inner part of the valve by
pressing on the centre of button and turn
it a quarter-turn at the same time.
 Put the tube of your pumping device
(foot pump, air pump, electric air pump)
along with the bayonet adapter into the
valve.
 First pump up the floor and then the side
tubes to their approximate finished form.
 Remove the black knurled nuts from the
seat boards, press the seat board from
top into the seat board rings and screw
tight with the knurled nuts.
ATTENTION: Short board – backside (for
SL also in front), longer board – in front,
long board – in the middle.
 Then pump your boat up to operation
pressure (0.3 bar).
 Check pressure with the manometer on
your pump or with a precision test
manometer (special accessory).
 Remove the air tube with the adapter
from the valve and close the valve with
the valve cap (bayonet stopper).
ATTENTION: Valve cup must be closed!
Do ensure 100 % air-tightness.
 Tie the second carrying- and packing
belt on. (The already tied belt shows you
the right way.)
