Graco Extend2Fit User Manual

100
9 Additional
Information

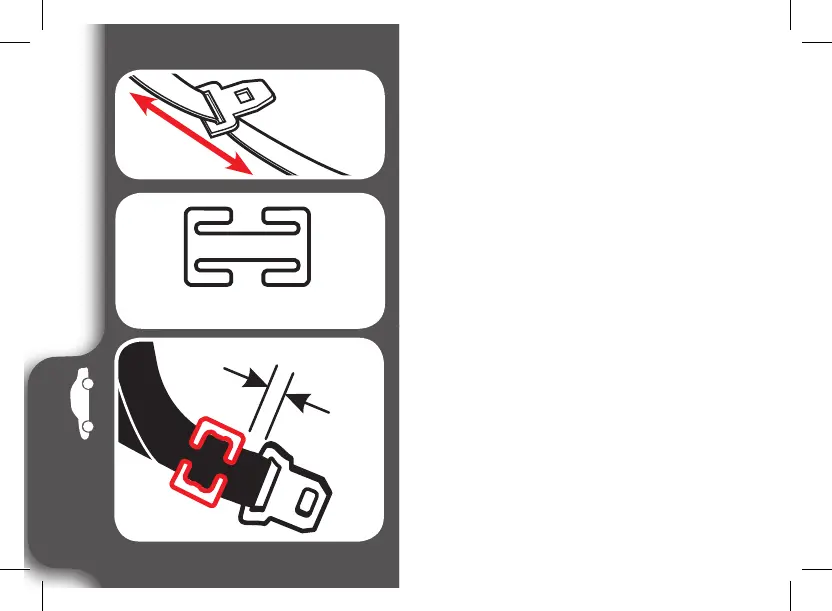

Sliding Latch Plate and ELR Retractor
A latchplate that slides freely on the belt
webbing and cannot, by itself, hold the belt
snug around a car seat.
With this retractor, you will need to use the
locking clip to lock the vehicle seat belt.
To get a locking clip, call 1-800-345-4109.
Route the vehicle seat belt through the
proper belt path and buckle it in. Pull the
vehicle seat belt tight. While pushing down
on seat, pinch the two straps together
behind the buckle tongue. Unbuckle the belt
without allowing it to slip.
Attach locking clip to lap and shoulder belts
as shown.
Rebuckle belt. Check that lap belt does not
move by pulling hard. If belt loosens or
lengthens, repeat procedure.
1” (2.5 cm)
Locking Clip

Graco Extend2Fit Specifications

General

Washing type	Machine wash
Certification	FMVSS 213
Product color	Multicolor
Car seat group	-
Adjustable headrest	Yes
Belt fastening type	5-point
Number of recline positions	6

Weight and Dimensions

Depth	640 mm
Width	487.7 mm
Height	561.34 mm
