Graco Extend2Fit User Manual

98
9 Additional
Information

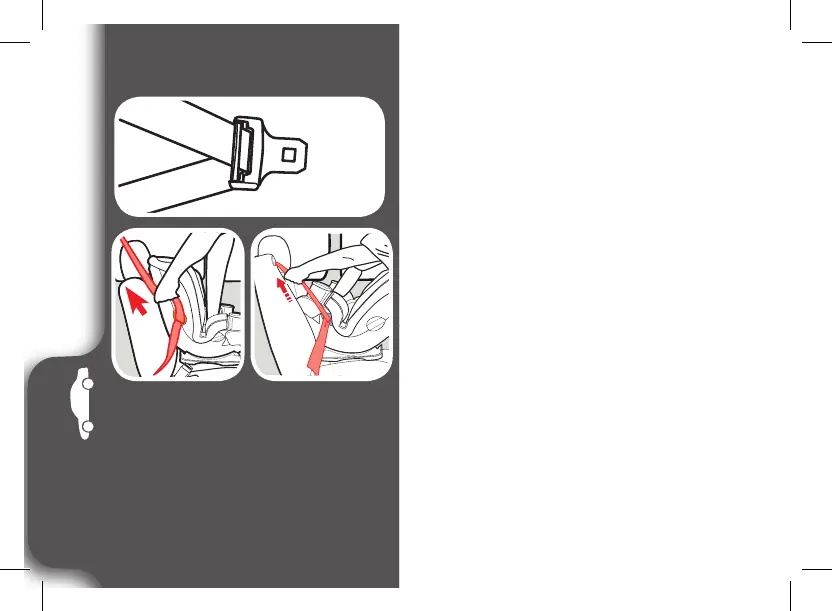

Locking Latchplate and ELR
Retractor
A latchplate that holds the lap belt snug
after it has been adjusted; contains
a metal bar on the underside of the
hardware that “locks” the belt in position.
When installing the car seat, route the
vehicle seat belt through the proper belt
path and buckle it in. Then, pull upwards
on the shoulder belt so that the lap belt
gets tight around the car seat.
Grab the sides of the seat at the belt path and
slide the seat side-to-side and front-to-back.
The seat should not move more than 1”
(2.5 cm).

Graco Extend2Fit Specifications

General

Washing type	Machine wash
Certification	FMVSS 213
Product color	Multicolor
Car seat group	-
Adjustable headrest	Yes
Belt fastening type	5-point
Number of recline positions	6

Weight and Dimensions

Depth	640 mm
Width	487.7 mm
Height	561.34 mm
