Graco FIRE-BALL Series Instructions And Parts

30788312

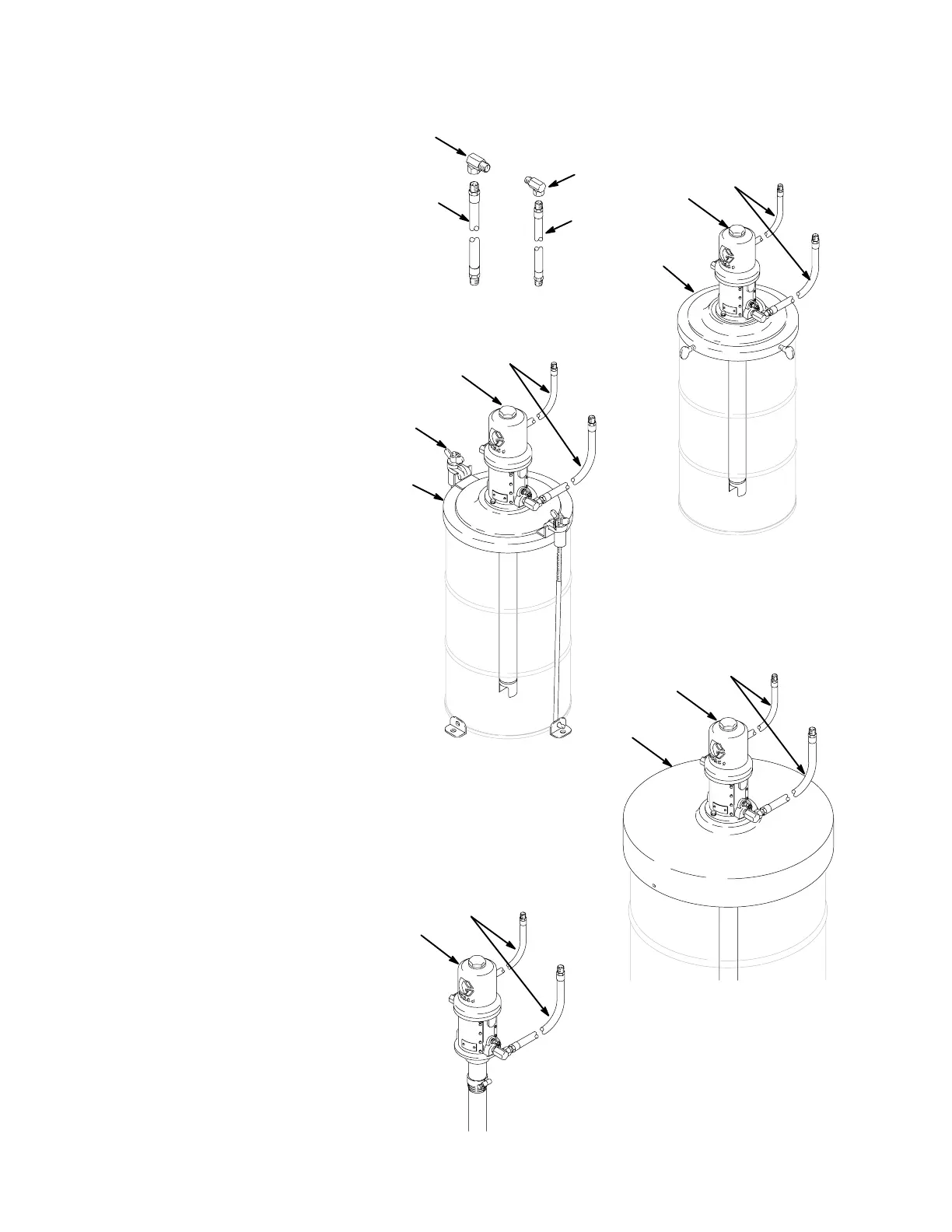

Fire-Ball Parts Lists and Drawings
Model 222063
Hose Kit for Fire-Ball Pump
Ref
No. Part No. Description Qty.
101 203320 AIR HOSE, 3/8” ID, cpld
3/8–14 npt (mbe), 72” (1.8 m) 1
102 220591 FLUID HOSE, 1/2” ID, cpld
1/2–14 npt(mbe), 72” (1.8 m) 1
103 155494 UNION, 90_, 3/8–14 npt(m) x
3/8 npsm(f) swivel 1
104 155470 UNION, 90_, 1/2–14 npt(m) x
1/2 npsm(f) swivel 1
Model 225094
5:1 Ratio Fire-Ball, 16-Gallon Open Drum
Ref
No. Part No. Description Qty.
1 203872 5:1 FIRE-BALL PUMP
See manual 306518 for parts. 1
2 222063 HOSE & FITTING KIT
See parts list above. 1
3 204574 DRUM COVER 1
Model 222086
5:1 Ratio Fire-Ball, 16-Gallon Open Drum
Ref
No. Part No. Description Qty.
4 203872 5:1 FIRE-BALL PUMP
See manual 306518 for parts. 1
5 222063 HOSE & FITTING KIT
See parts list above. 1
6 222060 DRUM COVER 1
7 222061 HOLD-DOWN KIT
See manual 306345 for parts. 1
Model 225642
5:1 Ratio Fire-Ball, 55-Gallon Open Drum
Ref
No. Part No. Description Qty.
8 203857 5:1 FIRE-BALL PUMP
See manual 306518 for parts. 1
9 222063 HOSE & FITTING KIT
See parts list above. 1
10 200326 DRUM COVER 1
101
102
103
104
1
3
2
4
5
6
7
8
9
10
01616
01617
01618
01619
Model 225640
5:1 Ratio Fire-Ball, 55-Gallon Closed Drum
Ref
No. Part No. Description Qty.
11 204254 5:1 FIRE-BALL PUMP
See manual 306518 for parts. 1
12 222063 HOSE & FITTING KIT
See parts above. 1
11
12
01620

Graco FIRE-BALL Series Specifications

General

Series	FIRE-BALL
Maximum Pressure	1000 psi
Inlet Size	1/2" NPT
Outlet Size	1/2" NPT
Material	Aluminum, Stainless Steel
Wetted Parts	Stainless Steel, PTFE
