Graco MARK IV - Page 62

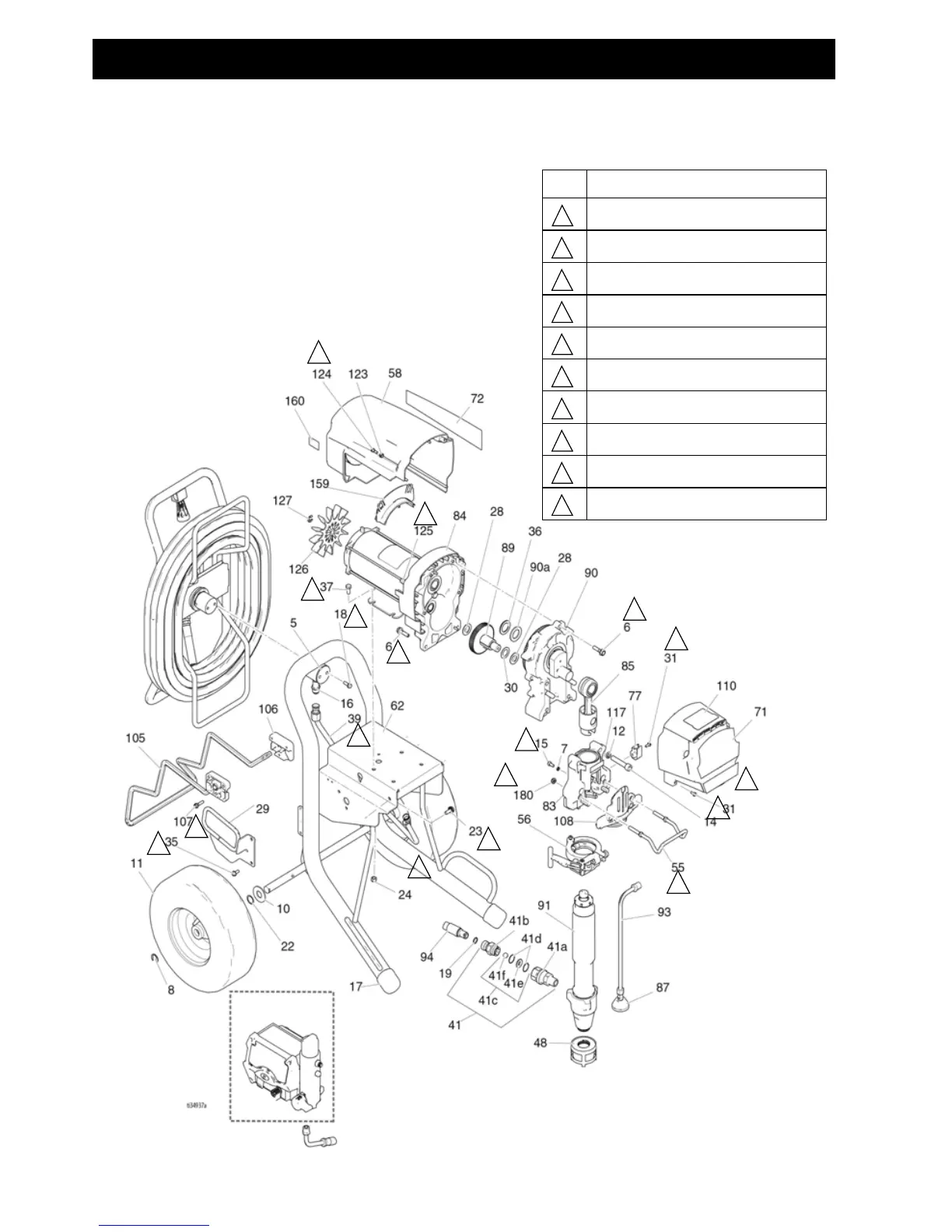

Diagrams and Parts
62 3A6342A
Mark X ProContractor
10
1
1
Ref. Torque
40-45 in-lb (4.5 - 5.0 N•m)
55-60 in-lb (6.2 - 6.7 N•m)
200-230 in-lb (22.6 - 25.9 N•m)
190-210 in-lb (21.4 - 23.7 N•m)
120-130 in-lb (13.5 - 14.6 N•m)
25-30 ft-lb (33.8 - 40.6 N•m)
38-42 ft-lb (51.5 - 56.9 N•m)
130-150 in-lb (14.6 - 16.9 N•m)
90-110 in-lb (10.1 - 12.4 3 N•m)
65-85 in-lb (7.3 - 9.6 N•m)
1
2
3
4
5
6
7
8
9
10
10
1
2
3
3
3
4
4
5
6
6
7
8
9
See pages 72-77.
See Page 68
